John Dragon Man's Citroen BX Diesel Estate

Post by Dragon Man » Tue Jun 21, 2016 11:12 pm

Well here I am, now an owner of a BX Diesel Estate in Sliver!

so yesterday (the 20th of June 16) i took a trip down to London with a car transporter and picked up this nice little... (umm.. a little more larger than i am use to) estate car!

i am pretty happy with it, the overall cost was £400 for the car and around £350 to get it delivered here to Derby (yes i know i could have got it cheaper now :x ).

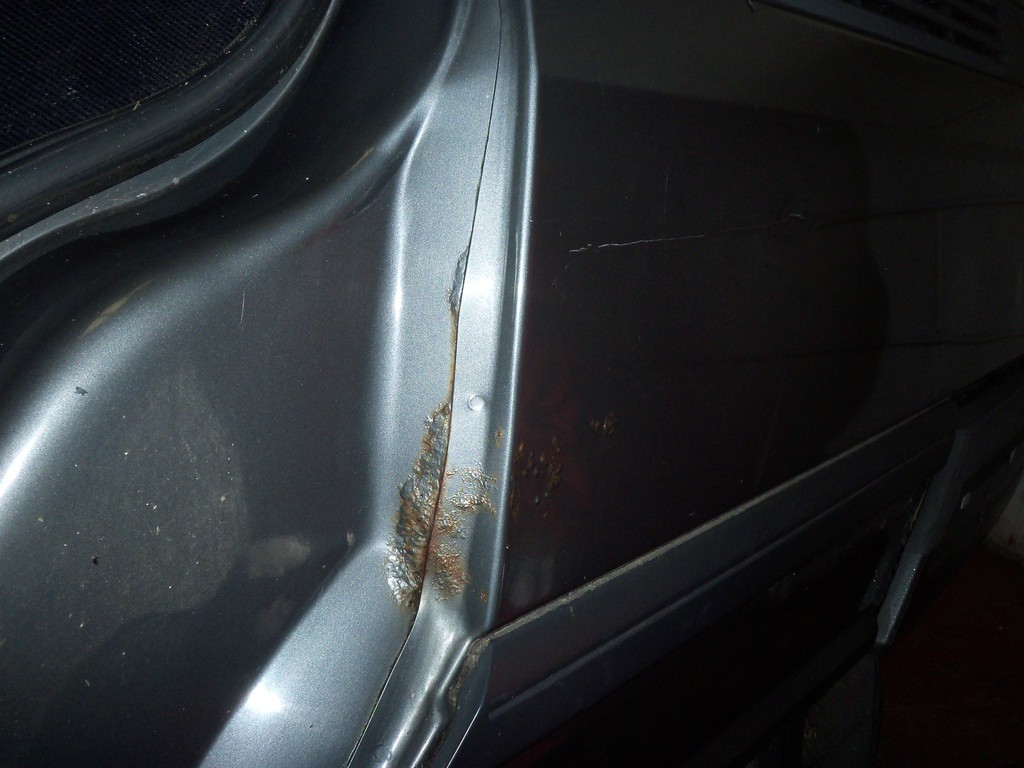

bodywork wise the car is a little "used". given what i have seen of London (first time i have been!) i think the car survived well!

the engine is dead. the bottom end may be savable but i think i am going to go down the complete engine swap fix route. i am not sure if it may have damaged anything else bar the head. so that said i am now looking for a low miles XUD engine. be it a 1.7 or 1.9 (ill worry about that camshaft pump pulley further down the line)

the hydraulics are untested. the spheres are dated 2001 so are 15 years old they they need changing but are near the bottom on my list of things to change for obvious reasons. i will try and test the hydraulics by spinning the pump using an electric motor. being as it is cam driven it does not turn very quick even with the pulley ratio. maybe even a battery drill could do it.

the LHM fluid is more of a cloudy yellow/cream colour, i have read that it should be green. so i will change that when the engine is in and connected up.

who wants to see some pictures?

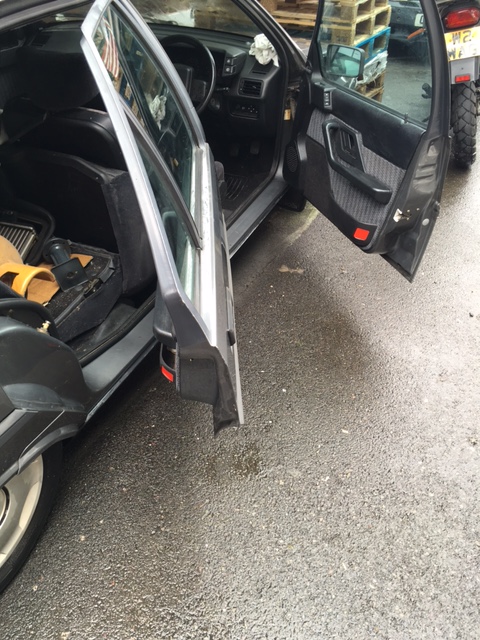

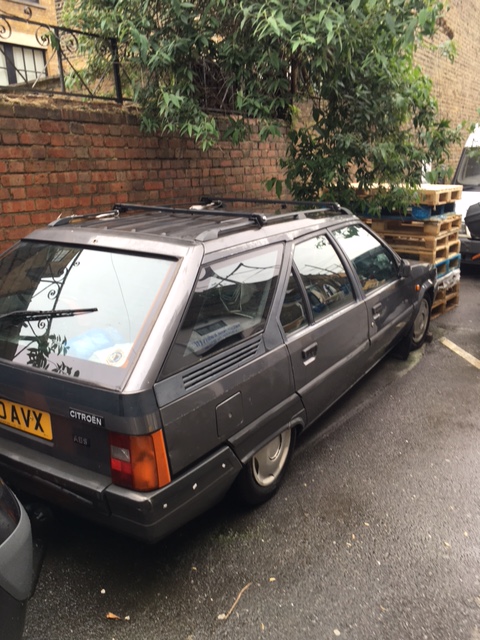

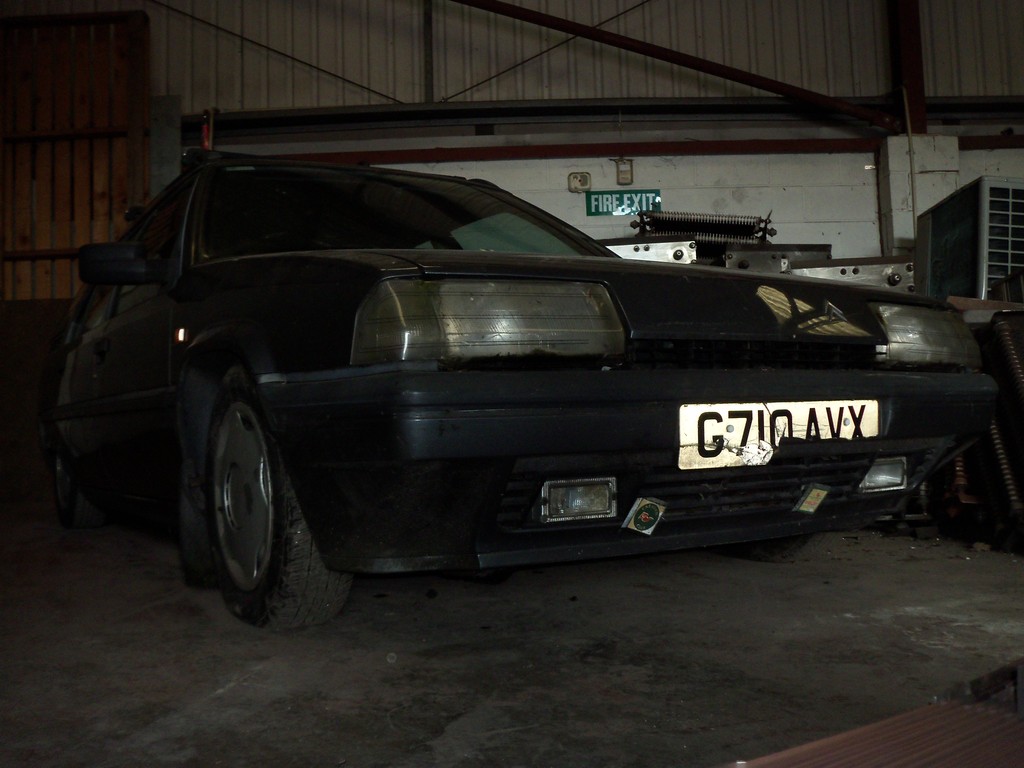

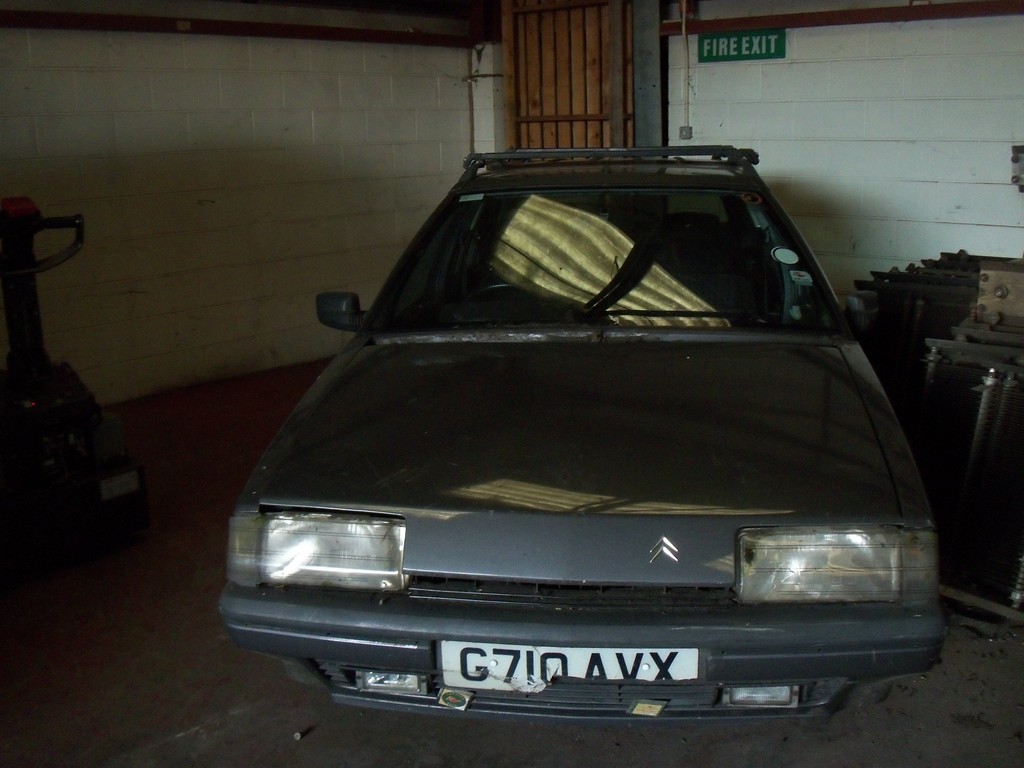

now some have already seen the pre buy photos:

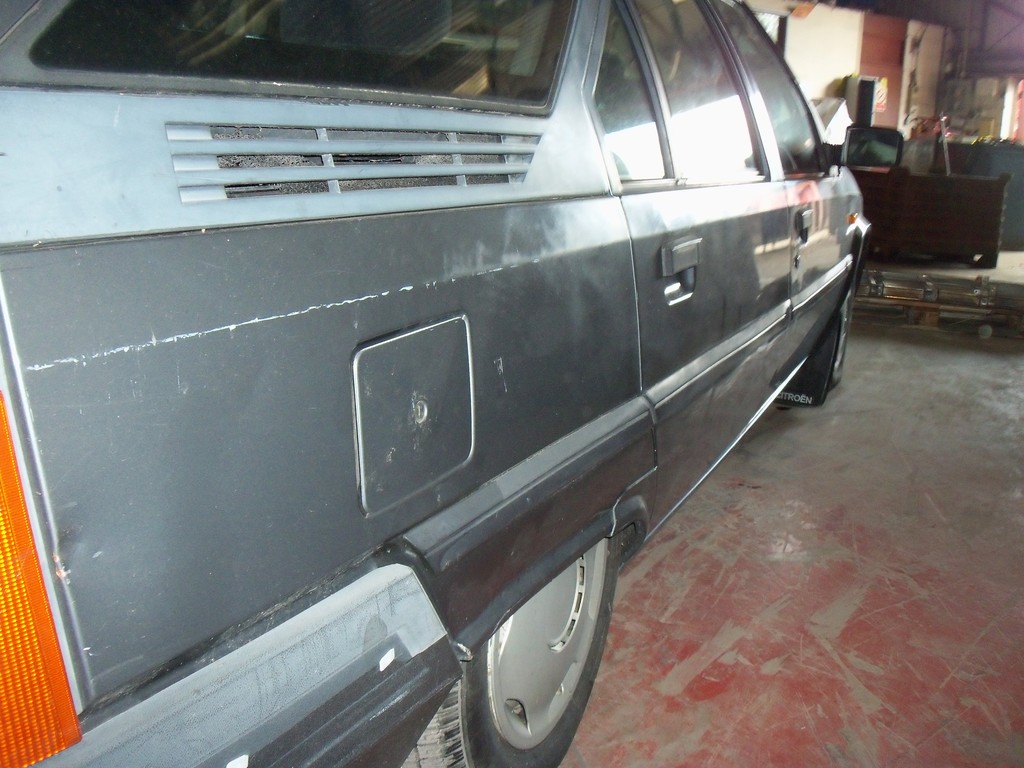

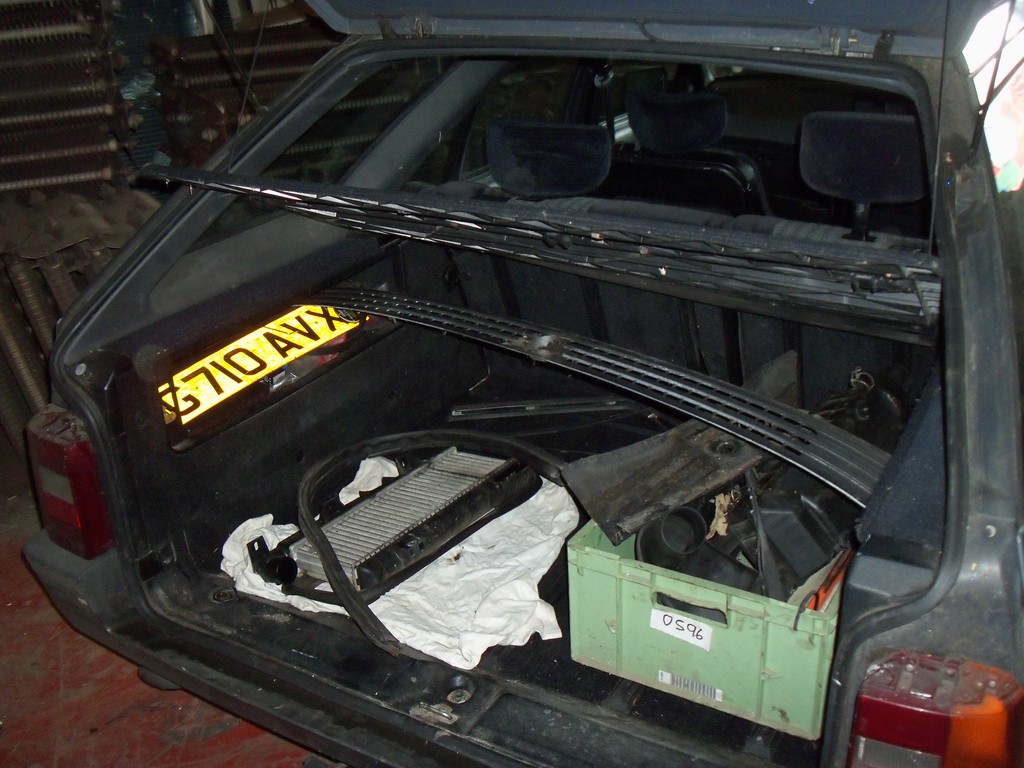

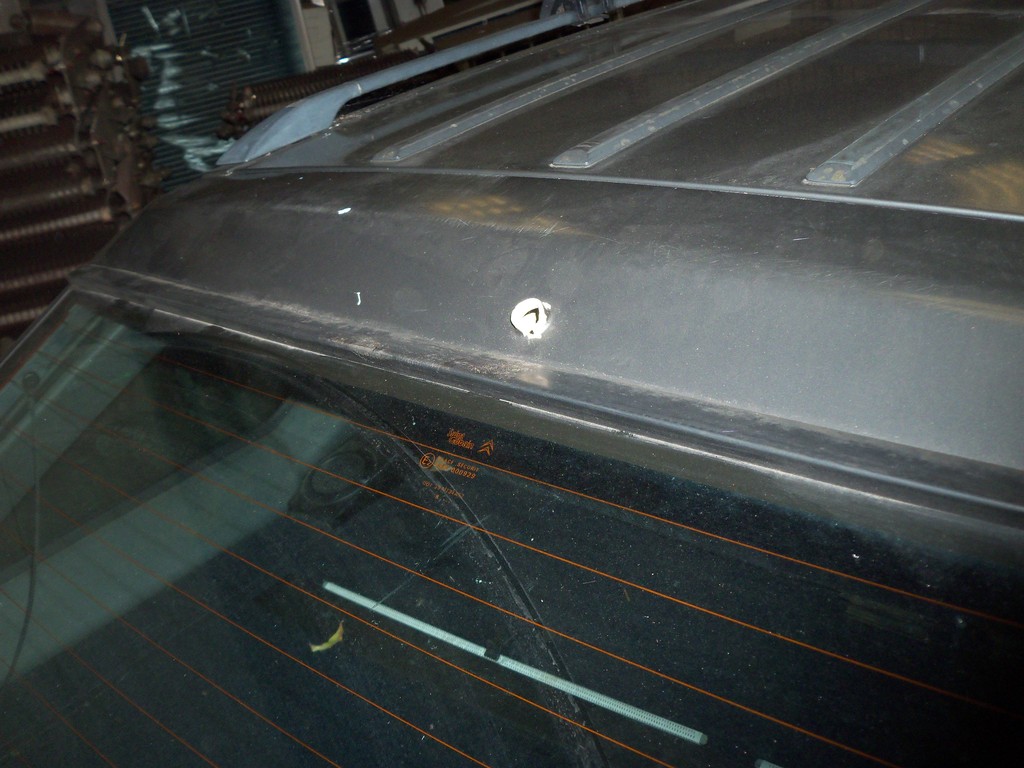

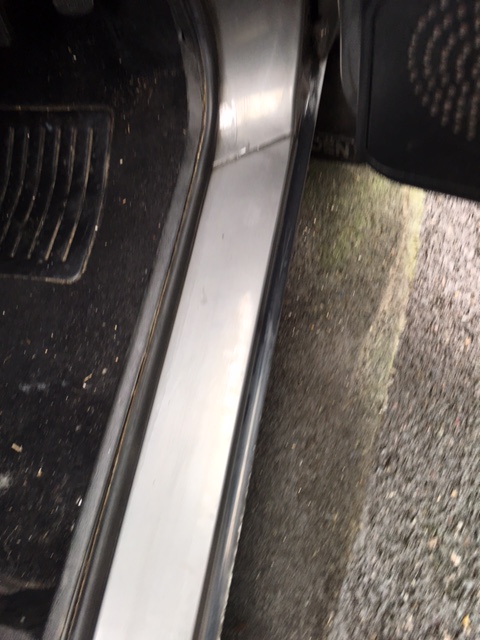

now i have the car at work, i was able to take more photos. sadly its in a dark unit.. yes all the lights were on, its just most dont work!

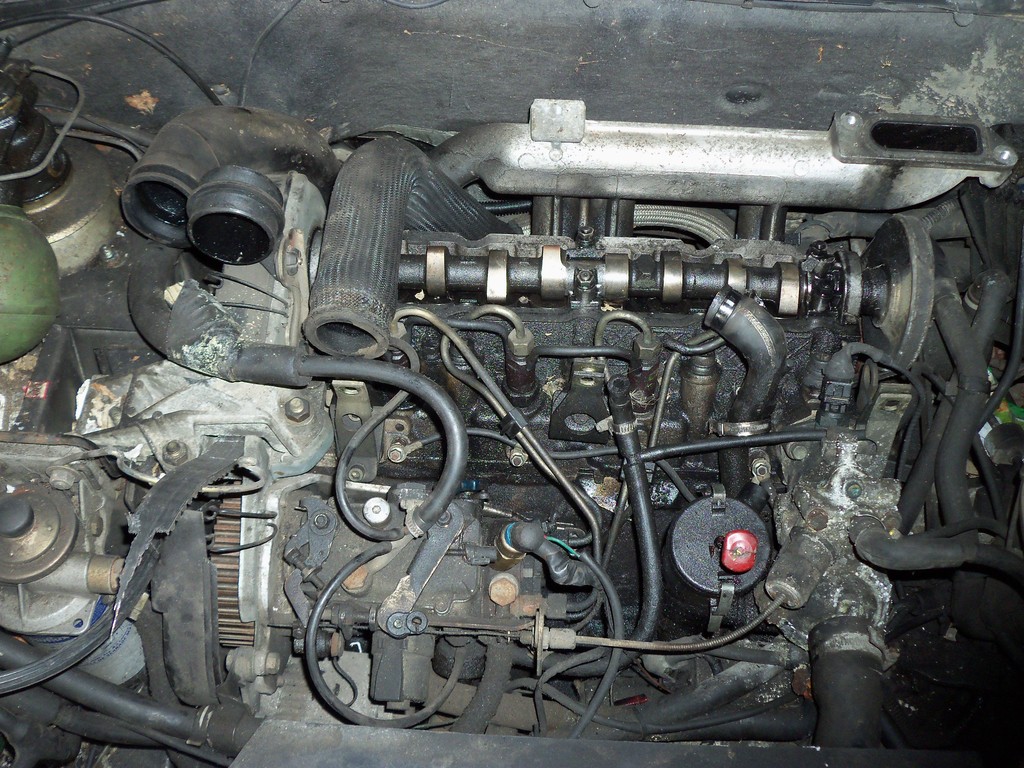

and this is what it looks like when a camshaft breaks caused by a snapping cam belt! ouch!

note snapped belt..

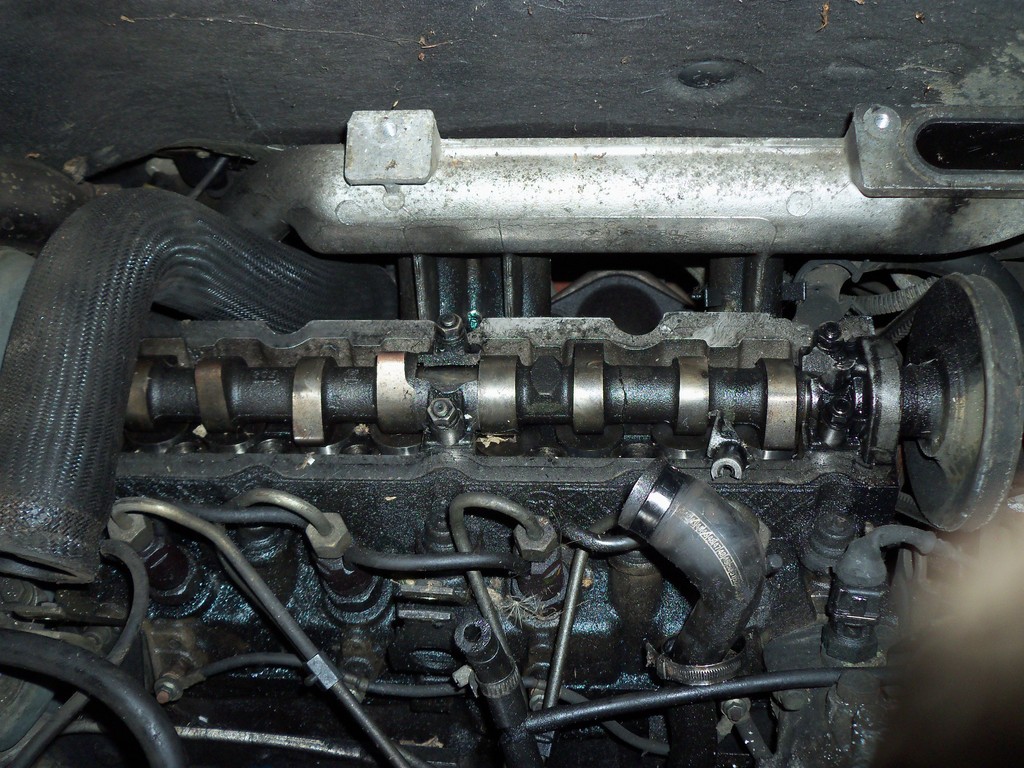

lets take a closer look at that camshaft.. also note the camshaft journal caps smashed to hell. you can see that valve number 6 (cylinder 3's exhaust valve) was open when the piston smashed into it sending the force up the valve stem and into the camshaft.


Thanks for looking and please do stay tuned! there will be frequent updates of the repair work and even online Video Log!

- JohnDragonMan

Drives: a classic Panda 4x4 called Project Fallout
classic Panda 4x4 Sisley named Talon
broken BX Diesel Estate in silver that's currently for sale.

Fix it Again Tomorrow. no special tools needed, always able to fix it! :)

User avatar
JayW
1K Away
1K Away
Posts: 1580
Joined: Thu Dec 07, 2006 6:40 pm
Location: Now listen here you mullet...
x 11

Re: John Dragon Man's Citroen BX Diesel Estate

Post by JayW » Tue Jun 21, 2016 11:59 pm

Done so many of these it's getting down to an afternoons work!

Easy fix, good luck.
I have zero patience for your tedium.

User avatar
Dragon Man
BXpert
BXpert
Posts: 187
Joined: Sat Aug 22, 2015 3:45 am
Location: The East Midlands, Derby
My Cars: Citroen BX TZD Estate 1990
Fiat Panda 4x4 Sisley 1991
Fiat Panda 4x4 1990
x 6

Re: John Dragon Man's Citroen BX Diesel Estate

Post by Dragon Man » Wed Jun 22, 2016 12:39 am

ohh is that a complete engine swap or just a cylinder head replacement? do you have any tips or know of any threads that would help me out?
maybe if all goes well with mine, i will write a "how too" article on it for any future seekers in the ways of BX diesel repairs. :D
- JohnDragonMan

Drives: a classic Panda 4x4 called Project Fallout
classic Panda 4x4 Sisley named Talon
broken BX Diesel Estate in silver that's currently for sale.

Fix it Again Tomorrow. no special tools needed, always able to fix it! :)

User avatar
JayW
1K Away
1K Away
Posts: 1580
Joined: Thu Dec 07, 2006 6:40 pm
Location: Now listen here you mullet...
x 11

Re: John Dragon Man's Citroen BX Diesel Estate

Post by JayW » Wed Jun 22, 2016 8:53 am

Swapping the complete engine takes the same time as swapping the head and in my opinion is a better bet if the rest of your lump is an unknown quantity. It's one of the simplest units you can wish for and REALLY self explanatory, the only tricky bit can be separating the exhaust manifold from the downpipe.

Cliff (rutter123) had a complete unit going unless it's already gone to scrap. Find his "breaking" thread or check out ebay.
I have zero patience for your tedium.

Defender110
Over 2k
Posts: 5861
Joined: Wed Dec 16, 2009 8:02 pm
Location: Radcliffe, Gt.Manchester
x 19

Re: John Dragon Man's Citroen BX Diesel Estate

Post by Defender110 » Wed Jun 22, 2016 9:08 am

Good save and well worth it for the condition of the bodywork alone, you have caught that rust on the n/s just in time. This rust comes from mud trapped in the rear subframe mounts / rear of the sill where there is a cavity behind and underneath the door shut so make sure you attack this from underneath and not just the bit on show in the door closure. The mechanicals are all very simple so no worries on that score.
Kevan
1987 Citroen BX MK1 diesel estate.
1997 Mercedes C230 W202 - daily driver.
2010 BMW X1 SE 2.0D Auto - Her indoors daily driver.
2003 Land Rover Discovery TD5 - hobby days and camping.
1993 Land Rover Discovery 300tdi 3 door - in need of TLC

rutter123
1K Away
1K Away
Posts: 1990
Joined: Sun Sep 02, 2012 9:54 pm
Location: South Lincs
x 40

Re: John Dragon Man's Citroen BX Diesel Estate

Post by rutter123 » Wed Jun 22, 2016 10:43 am

Hi Dragon man i still have the complete engine here if your'e interested, i know its high miles but it can be heard running still in the car, trust me these engines are bullet proof if they have been well looked after-which this one has being serviced every 9k . To be honest i think you will be hard pushed to find another bx t/d lump on offer-plenty of n/a's available, even if you strip it down for the head and use your original turbo, pump etc. It has the lucas pump and kkk turbo on it and all the intercooler and associated pipework, all it would need is a set of gaskets replacement as a precaution, its up to you the choice is yours, my t/d is near on 300k's now and still fine with no issues only needing a turbo rebuild @ 250k. let me know either way if your'e interested as the car will be going to get canned soon.
