BX Buyers Guide

Post by mat_fenwick » Thu Jul 22, 2010 3:41 pm

There's a lot of useful information in the following link, but it was written some years ago now and hence more time related issues are worth a check.

Most specifically rust. BXs seem well protected in relation to other cars of the same era, but look out for inner wings, A posts around the door hinges (they can also crack in this area), bottom of the C post, sills, and boot floor (especially on the hatchback).

Rear suspension arm bearings - if there is creaking from the rear as the suspension moves, suspect the rear arm bearings. Also look out for the rear wheels leaning inwards at the top, like this. / \

The rear suspension struts can corrode though and cause a high pressure LHM leak, especially on estates where the strut walls are thinner due to the larger piston diameter.

Head gasket failure - diesels seem more prone to this than petrols. Probably caused in the main down to poor maintenance (dirty coolant/deteriorating radiator) and most models having no temperature gauge, so by the time the warning light comes on it's usually too late! Symptoms include rapid pressurisation of the cooling system from cold (listen for a hiss say 30 seconds after a cold start), 'hard' coolant hoses, oil in coolant, water in oil, unexplained water loss, steam from the exhaust etc.

Small LHM leaks from around the base of the front suspension struts are likely to be the strut return pipes - cheap and easy to replace but worth going for OE pipes if possible.

A hard ride is often down to flat spheres, although less common now as more BXs are enthusiast owned. Fairly easy to change, at least at the front and can be got for around £20 each. A short 'tick time' (every few seconds) can be down to a flat accumulator sphere (cheap and easy to replace) or a worn hydraulic pump (not too bad to change but pricier). Problems with the latter will often be accompanied by intermittent loss of power assistance from the steering.

Pictures welcome of any trouble spots for rust etc, I'll try and add a few as time goes on. Also feel free to add any more pointers below - ideally it will all be condensed into an easy to read guide at a later date...

Below is a guide from Car Mechanics magazine, originally scanned in by DLM.







1993 1.9 TZD Turbo Estate
2006 Renault Kangoo
1996 3.9 V8 Discovery
1993 VW LT35 campervan
1985 Hyundai Stellar V8
2004 MINI Cooper (hers)

User avatar
themildbunch
BXpert
BXpert
Posts: 592
Joined: Fri Apr 30, 2010 9:38 pm
Location: Stroud, UK
x 4

rusty patches on my 1991 TZD estate..

Post by themildbunch » Thu Jul 22, 2010 10:31 pm

around the fuel filler flap:

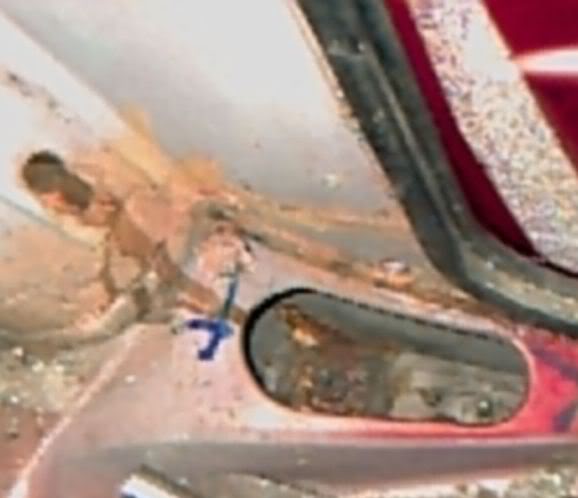

drivers door piller / hinge area even after a repair:


starting to bubbleup on the rear wing around the bumper..

1988 BX 19 Gti 16v
1991 BX 17 TZD Estate
1991 BX 17 TZD Estate

User avatar
Philip Chidlow
Over 2k
Posts: 11549
Joined: Fri Oct 07, 2005 1:08 pm
Location: Chelmsford, Essex
x 11

Post by Philip Chidlow » Fri Jul 23, 2010 10:29 am

Don't forget the boot floor - in the outer corners especially above the exhaust hanger (which itself can be crusty/held on by a flaking scab of rust in most cases!)
• COMING SOON... 1992 Citroen BX TZD Turbo Hurricane
• COMING SOON... 1998 Citroen Xantia 2.0 16v auto Exclusive
• Xsara Picasso 1.6 16v
and some Ford tat lol

User avatar
DLM
Our Trim Guru
Posts: 1569
Joined: Mon May 16, 2005 6:41 pm
Location: Gosport, Hampshire, UK
My Cars: None since the last BX.
x 1

Post by DLM » Fri Oct 01, 2010 6:43 pm

To add to the above, apologies for some of the pic quality, but here are some more examples of rust "in the field".

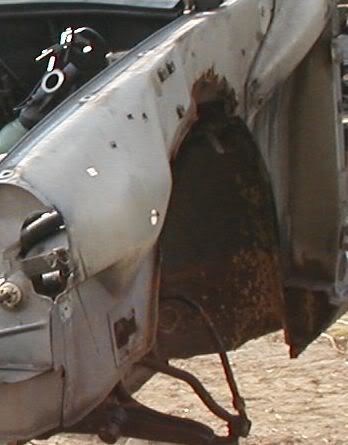

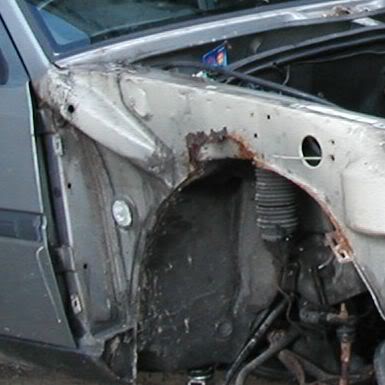

First off, the front inner wings, fairly advanced, probably from a scrapper


Nothing too unknown there, but what about the outer part of that inner wing at the top of the wheel arch, hidden by the wheel arch liner? Without the outer wing or wheel arch liner removed this area's pretty invisible, except on the tab onto which the liner locates.


This may well be repeated on the other side, too..

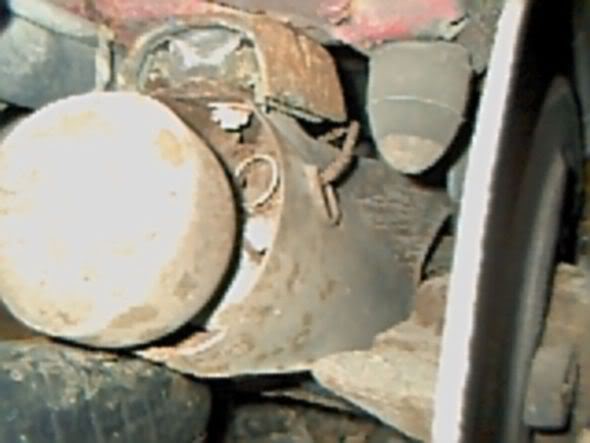

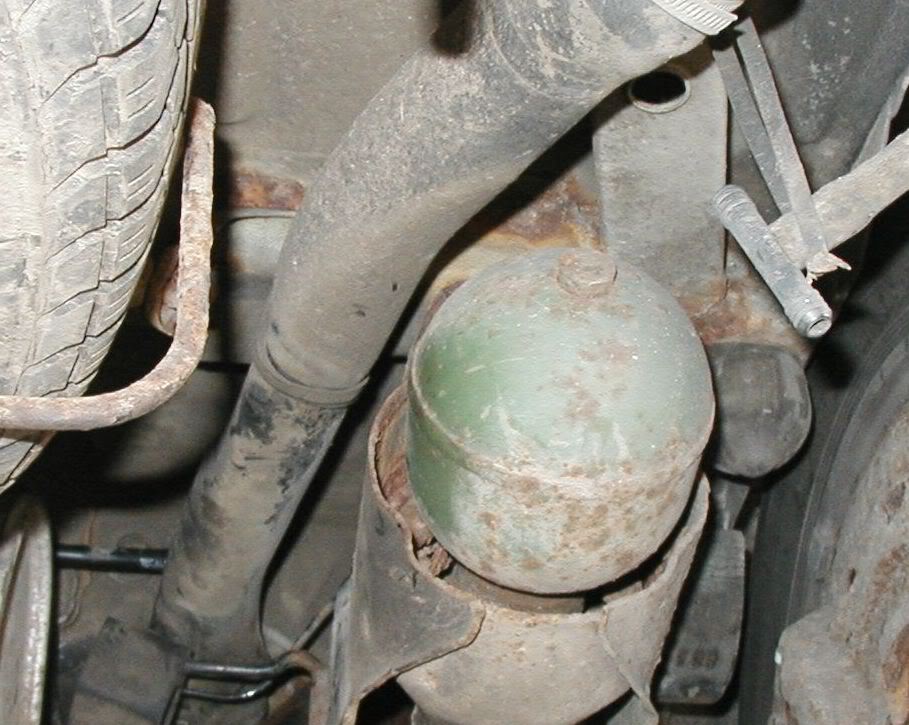

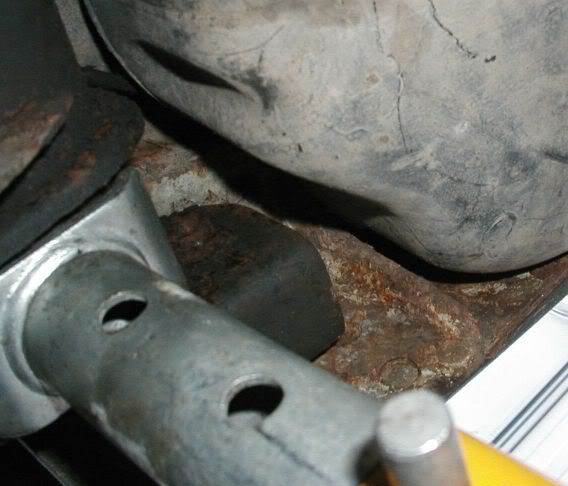

Moving swiftly to the rear of the car, there's the box-section just outboard of the rear axle section to which the rear spheres are attached. The area round the bump stop rots, along with other part of this fairly "open" box section.

There's some more rot going crossways here in the folowing pic that I can't tie to a specific structure without a BX to refer to.

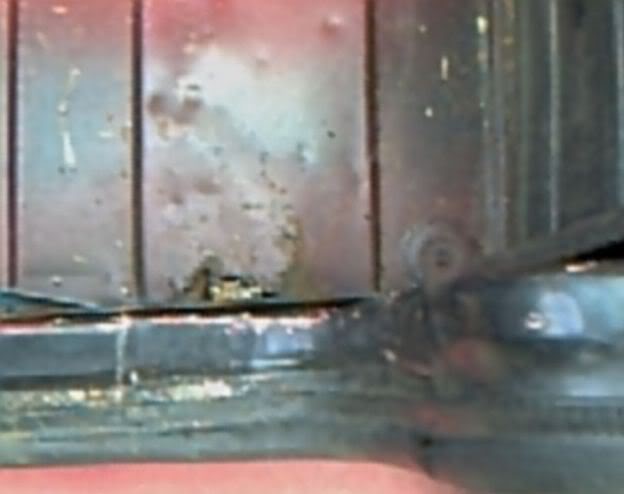

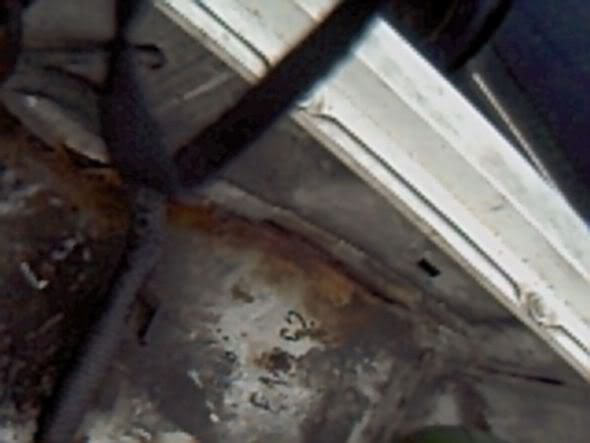

Moving further back, here's an example of classic boot floor rot on a hatchback
which is often not seen from underneath , and often creeps along the inside of the box section underneath, as well as right along the boot floor/rear valance edge.

If you can't remove the carpet, thumb pressure along the very rear of the boot floor will probably tell you everything you need to know.

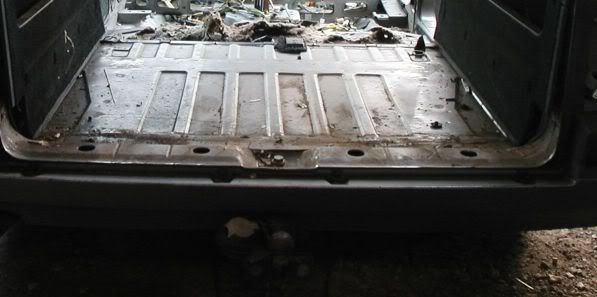

On the estate, there is no right-angle welded=together edge to rot along, though water can get trapped under the plastic trim covering the rear of the floor. I haven't seen this do major damage, but have seen rust-through next to and behind the upholstered panels which form the sides of the boot space of the boot. If it's coming through from outside, the first signs come in the form of holes. It's an area where plenty of mud and muck is thrown up and sticks.


If checking out the boot floor with the carpet out, it's worth checking this out as well. A really thorough investigation would include taking a look each side at the rear pair of retaining bolts for the rear beam/axle, blanked off by tape over the two cavities for them let into the boot floor.

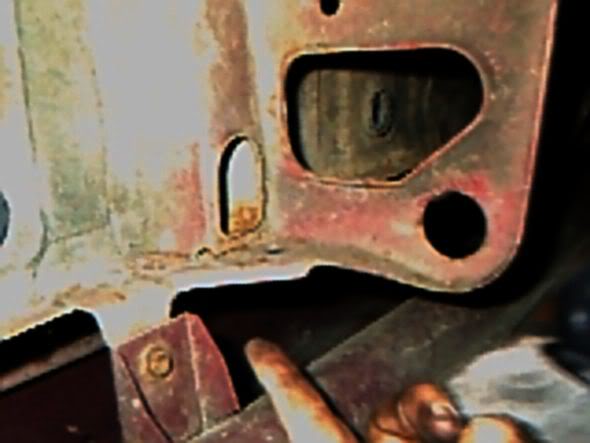

The front pair of fixings for this, under the rear-seat trim, unfortunately requrie quite a lot of trim-stripping to examine. I recalled this car I was dismantling as sound in bodywork but this pic of the area makes me wonder if I was wrong (apols for pic quality on this one in particular).
_ Image

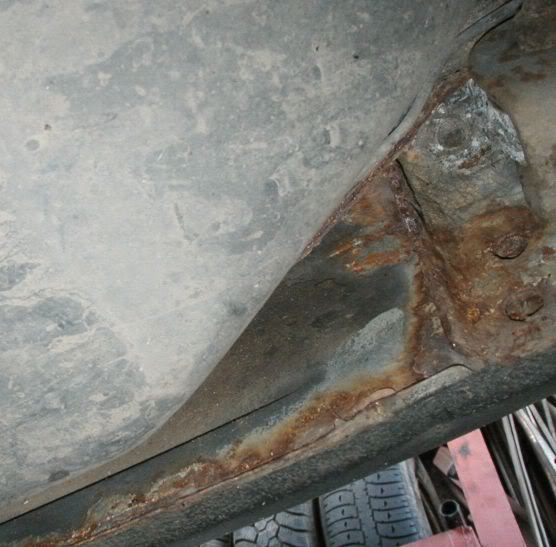

Underneath at this spot, the sills may look OK from the outside, but the inner sills could be hiding plenty of rot, seen here both behind and in front of the plastic fuel tank (a pretty horrible area to be welding around). The car needs to be on stands to see this.

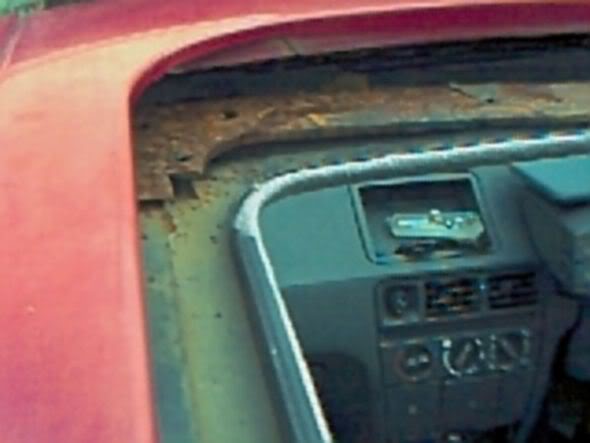

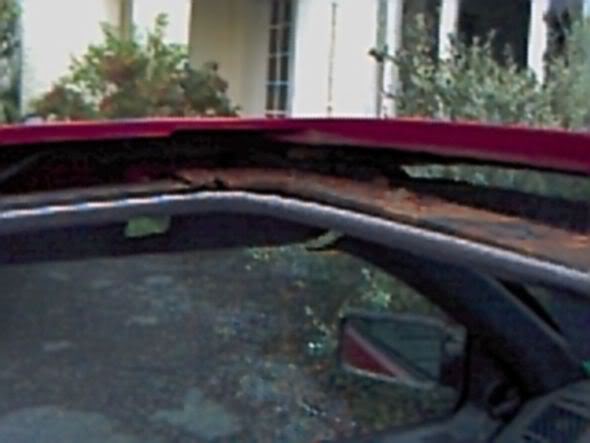

Finally, it isn't structural, but on BX hatches the sunroof area can harbour some pesky rust. When I swapped out these covers for the sunroof cable run, there were reasonably plentiful replacement parts available in the scrapyard - which is no longer the case.
Relying on two wheels and musclepower since the last BX (or any car) had to go.

RxBX
Over 2k
Posts: 2241
Joined: Wed Jan 28, 2009 11:51 am
Location: DERBYSHIRE

Re: BX Buyers Guide

Post by RxBX » Mon Jun 04, 2012 12:38 am

After the 'What Colour is this' in THIS thread of (TizzyD), although its obviously not a Technical issue, but should qualify under 'FAQs' !

So I thought it best placed under this post/thread of 'BX Buyers Guide' (Mat, if you think its worth being in a separate thread, then just split it off) !

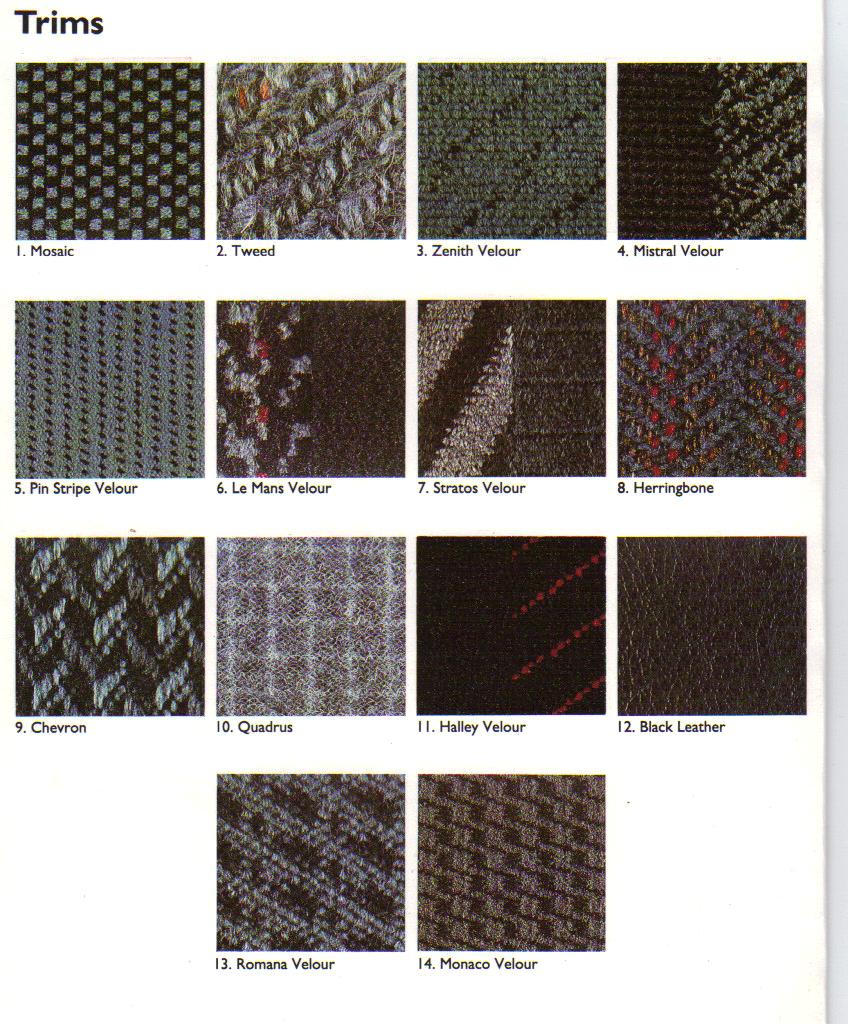

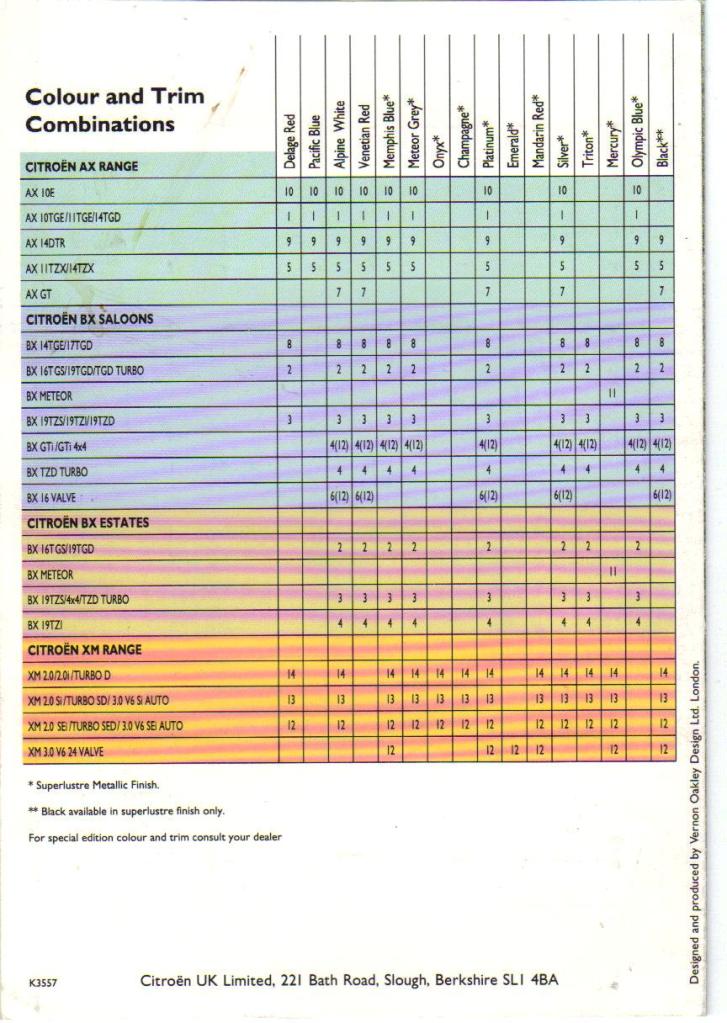

- - - - - - - - Citroën AX/BX/XM RANGE for COLOURS and Trim - - - - - - - - -





I hope this should help members in deciphering what Colour and trim their ^^bx> has !

:D

.

User avatar
MULLEY
Over 2k
Posts: 8375
Joined: Thu Jun 22, 2006 11:10 pm
Location: Derbyshire
x 3

Re: BX Buyers Guide

Post by MULLEY » Mon Jun 04, 2012 1:05 am

Handy guide, but erm have you not spotted something obvious, i had to turn my laptop upside down.
2002 C5 2.0 HDI Estate - Remapped - It goes better
2011 Mini Cooper D Clubman - it does over 60mpg
1992 TZD Turbo - SORN - slowly getting there
1991 Gti 16V - Blaze is back on the road since 2008
1990 Gti 8Valve SOLD - looks like it's been scrapped
2002 Mini Cooper S - SOLD - i miss this car
1992 TXD - Scrapped in March 2014

I'm not just a username, i'm also called Matthew.

RxBX
Over 2k
Posts: 2241
Joined: Wed Jan 28, 2009 11:51 am
Location: DERBYSHIRE

Re: BX Buyers Guide

Post by RxBX » Mon Jun 04, 2012 1:27 am

MULLEY wrote:Handy guide, but erm have you not spotted something obvious, i had to turn my laptop upside down.
Matt !
Page 1 and 3 where scanned upside down, so I flipped/rotated them in my 'Photo-bucket account' so they are the correct way up (It just takes sometimes up to 24 hr's to appear the correct way) if you used them say for E-Bay or a Forum 'Img' post straight after rotating/editing (I've haven't a clue why) !

So when I did see that pages 1 and 3 were appearing the wrong way on the forum, I actually stated (In a P.S. comment) that they will appear the correct way up within 24 hr's !

However after I looked at my posting approx. 1 minute afterwards all the pages where appearing the correct way up, so I therefore edited/removed my ('PS comment) which you obviously did not see !

But for some reason page 3 has appeared upside down now (hence your comment) so I've doubled checked my Photo-bucket account and ALL the images ARE definitely the correct way round so hells-knows what going off :?

But I'm sure all will be fine within 24hours time !

:lol:

User avatar
MULLEY
Over 2k
Posts: 8375
Joined: Thu Jun 22, 2006 11:10 pm
Location: Derbyshire
x 3

Re: BX Buyers Guide

Post by MULLEY » Mon Jun 04, 2012 1:43 am

They look allright now, so gawd knows whats happened, put it down to the IT fairy?? :)
