Fixed! Rough running GTi
I appreciate that this could be any number of issues ignition, fuel, etc. or a cracked distributor cap or worse... I'll outline the symptoms just in case anyone can offer any advice which would be gratefully received.
A couple of weeks ago the BX began to run a little roughly at idle but otherwise seemed to run smoothly. At the centenary rally weekend I had a nagging worry that perhaps it was just starting to worsen, thus I decided not to join the convoy to Motofest especially with a lot of queueing/idling likely. The return journey seemed to be OK but then the car began running roughly under acceleration on the M25 and then by home was just generally pretty rough. Sadly that put a dampener on a great weekend.
As a 1991 8v GTi I think it has the Motronic MP3.1 fuel injection system but not a more conventional distributor cap which threw me as I hoped to attempt to solve this myself by replacing the distributor cap and leads. Does anyone have a parts number for a set of ignition leads?
You can probably tell I'm not terribly mechanically minded and am probably not going to get very far with this on my own - so could anyone suggest anyone in the Medway/Gillingham (Kent) area familiar with BXs who might be able to diagnose the problem? Might be best to PM me.
Thanks!
A couple of weeks ago the BX began to run a little roughly at idle but otherwise seemed to run smoothly. At the centenary rally weekend I had a nagging worry that perhaps it was just starting to worsen, thus I decided not to join the convoy to Motofest especially with a lot of queueing/idling likely. The return journey seemed to be OK but then the car began running roughly under acceleration on the M25 and then by home was just generally pretty rough. Sadly that put a dampener on a great weekend.
As a 1991 8v GTi I think it has the Motronic MP3.1 fuel injection system but not a more conventional distributor cap which threw me as I hoped to attempt to solve this myself by replacing the distributor cap and leads. Does anyone have a parts number for a set of ignition leads?
You can probably tell I'm not terribly mechanically minded and am probably not going to get very far with this on my own - so could anyone suggest anyone in the Medway/Gillingham (Kent) area familiar with BXs who might be able to diagnose the problem? Might be best to PM me.
Thanks!
Last edited by deltic on Sun Jun 16, 2019 3:38 pm, edited 1 time in total.
1991 BX GTi Auto, grey, 133,000 miles (2015 & 2017 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
-
- Over 2k
- Posts: 15226
- Joined: Tue Apr 15, 2008 11:12 am
- Location: Burton on Trent
- My Cars: 1963 VW BEETLE 1200 KGJ413A
1972 Morris Marina 1.8 SDL BFA720L
1979 Rover SD1 3.5 V8-S TSL 982
1980 Morris Marina 1.7HL DBV468W
1985 CITROEN BX 19DTR C943DYA (again)
1985 CITROEN BX 19GT C1TBX
1991 CITROEN BX 19TZI AUTO A/C BXi 19
1994 CITROEN XANTIA 1.8 SXi M908HRY
2003 Rover 25 1.6i XL L33CHT - x 85
Re: Rough running GTi
Hi Jonathan
Start with the basics, , a new set of plugs/leads/ dizzy cap and rotor arm is a good point, also check the coolant and oil for contamination which could be a blown head gasket (not unheard of but rare)
Anyone can fit those, its a case of replace old with new, if you change the cap do one lead at a time so not to get the firing order out of sequence.
They should be readily available as its the same engine a 205 GTI, try eurocarparts or even your local factor.
Any local garage should be able to diagnose this as its not Citroen specific,
Start with the basics, , a new set of plugs/leads/ dizzy cap and rotor arm is a good point, also check the coolant and oil for contamination which could be a blown head gasket (not unheard of but rare)
Anyone can fit those, its a case of replace old with new, if you change the cap do one lead at a time so not to get the firing order out of sequence.
They should be readily available as its the same engine a 205 GTI, try eurocarparts or even your local factor.
Any local garage should be able to diagnose this as its not Citroen specific,
1963 VW BEETLE 1200
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR
-
- Over 2k
- Posts: 2187
- Joined: Sun Sep 02, 2012 9:54 pm
- Location: South Lincs
- My Cars: 65 Peugeot Boxer van 160k
Ven red tzd turbo 294k it will live again
Nissan Micra K13 the wife's run around - x 56
Re: Rough running GTi
Air leaks can cause bad running issues on gti's, lumpy idling, stalling and generally misbehaving.
Check all the rubber hoses that are connected in any way between the ecu and the throttle body including the air hoses that go to the cold start valve, if any of these have the slightest leak or split it will cause a very lean mixture.
Other things to consider, injectors/wiring, ignition module, fuel pump/filter, fuel pressure regulator, or even perished/corroded fuel lines
I had running issues on my gti with Jetronic system Ultimately finding the fault was in the injector wiring loom, not saying that's where your fault is but the above are a good starting point.
It's a process of elimination I'm afraid.
Removal of the spark plugs will give an idea of how things are and will give a rough guide to weak or lean mixture and as to what's going on inside.
Check all the rubber hoses that are connected in any way between the ecu and the throttle body including the air hoses that go to the cold start valve, if any of these have the slightest leak or split it will cause a very lean mixture.
Other things to consider, injectors/wiring, ignition module, fuel pump/filter, fuel pressure regulator, or even perished/corroded fuel lines
I had running issues on my gti with Jetronic system Ultimately finding the fault was in the injector wiring loom, not saying that's where your fault is but the above are a good starting point.
It's a process of elimination I'm afraid.
Removal of the spark plugs will give an idea of how things are and will give a rough guide to weak or lean mixture and as to what's going on inside.
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
-
- BXpert
- Posts: 612
- Joined: Tue Jan 25, 2011 10:48 pm
- x 11
Re: Rough running GTi
To help me find my way around would anyone have a diagram of the various components (especially the wiring and hoses) of the ignition system?
1991 BX GTi Auto, grey, 133,000 miles (2015 & 2017 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
-
- 1K Away
- Posts: 1458
- Joined: Tue Jul 05, 2005 7:54 am
- Location: Usually in the garage
- x 16
Re: Rough running GTi
I can let you have a wiring diagram in a few days. In the meantime check your fuel quantity and quality by removing the fuel pipe from the engine, put it into a clear bottle then crank the engine and observe the petrol being pumped into the bottle. It should be clean and pump in reasonably quickly.
No there is no dizzy to worry about.
A compression test would be a good idea too.
No there is no dizzy to worry about.
A compression test would be a good idea too.
The Joy of BX with just one Citroën to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
-
- Over 2k
- Posts: 15226
- Joined: Tue Apr 15, 2008 11:12 am
- Location: Burton on Trent
- My Cars: 1963 VW BEETLE 1200 KGJ413A
1972 Morris Marina 1.8 SDL BFA720L
1979 Rover SD1 3.5 V8-S TSL 982
1980 Morris Marina 1.7HL DBV468W
1985 CITROEN BX 19DTR C943DYA (again)
1985 CITROEN BX 19GT C1TBX
1991 CITROEN BX 19TZI AUTO A/C BXi 19
1994 CITROEN XANTIA 1.8 SXi M908HRY
2003 Rover 25 1.6i XL L33CHT - x 85
Re: Rough running GTi
One less thing to worry about then, I would also pop the plugs out and see if any of them are particularly sooty, which could indicate a misfire.
1963 VW BEETLE 1200
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR
1985 BX 19GT Mk1
1985 BX 19 DTR Mk1
1991 BX 19TZI Auto A/C
1994 Xantia 1.8i SX
1972 Morris Marina 1.8 SDL
1979 Rover SD1 V8-S
1980 Morris Marina 1.7 HL
2003 Rover 25 1.6i XL 5 DR
-
- BXpert
- Posts: 612
- Joined: Tue Jan 25, 2011 10:48 pm
- x 11
Re: Rough running GTi

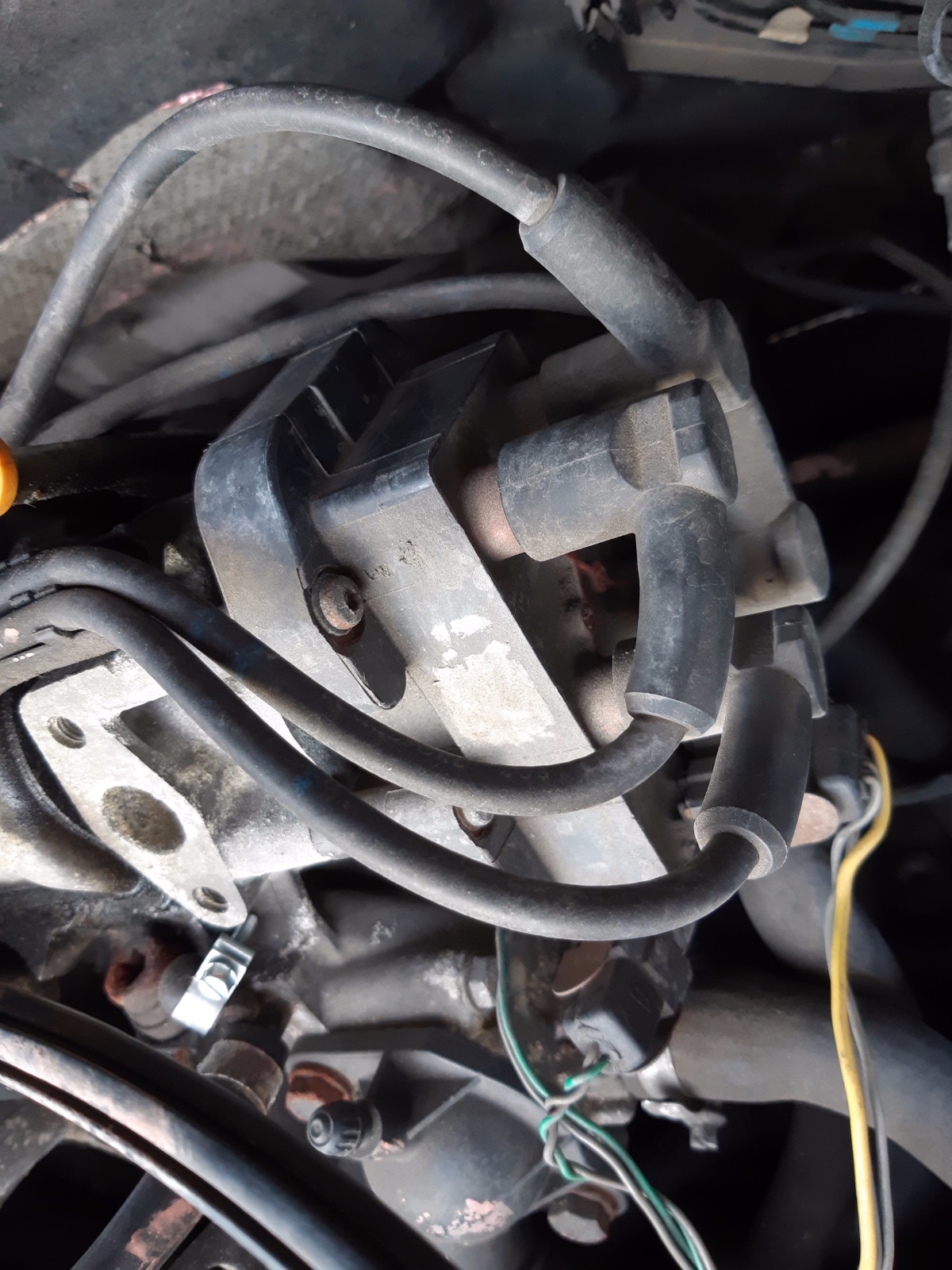

Thanks for the further comments. Have only just had another chance to look at the car this evening and it looks like the coil (the thing in the photo above!) is only producing sparks to three cylinders so all being well an easy fix. Hopefully!
Assuming I get hold of a correct replacement coil is it just a straight swap?
Assuming I get hold of a correct replacement coil is it just a straight swap?
1991 BX GTi Auto, grey, 133,000 miles (2015 & 2017 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
-
- 1K Away
- Posts: 1458
- Joined: Tue Jul 05, 2005 7:54 am
- Location: Usually in the garage
- x 16
Re: Rough running GTi
The coil provides a spark for cylinders 2 & 3 and 1 & 4 at the same time, that means two sparks per cycle where one is a wasted spark. So it would be a strange failure if only one of them is not sparking. Have you checked the HT leads and perhaps swapped some around to see if it is the coil or a lead or plug ?
Hope that makes sense. The usual failures are two cylinders losing spark due to HT coil or ignition amp failure
Hope that makes sense. The usual failures are two cylinders losing spark due to HT coil or ignition amp failure
The Joy of BX with just one Citroën to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
-
- BXpert
- Posts: 612
- Joined: Tue Jan 25, 2011 10:48 pm
- x 11
Re: Rough running GTi
I see. What I did was remove each lead from the coil in turn and all but one continued to produce a spark. Only in the case of removing the lead from coil did the engine continue to run, for the other three the engine stalled.
1991 BX GTi Auto, grey, 133,000 miles (2015 & 2017 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
-
- BXpert
- Posts: 612
- Joined: Tue Jan 25, 2011 10:48 pm
- x 11
Re: Fixed! Rough running GTi
Replaced the coil (as depicted above) which (thankfully!) fixed the problem. Top tip: access for removal is easier if you remove the battery...
I sourced a Hella coil on eBay, part number 5DA193175-421 for just over £32.00. This also seems to fit a large number of other Citroens.
I sourced a Hella coil on eBay, part number 5DA193175-421 for just over £32.00. This also seems to fit a large number of other Citroens.
1991 BX GTi Auto, grey, 133,000 miles (2015 & 2017 Citroen Classic Challenge veteran)
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
2006 C4 VTR+ 2.0 Coupé, silver, 60,000 miles
-
- 1K Away
- Posts: 1458
- Joined: Tue Jul 05, 2005 7:54 am
- Location: Usually in the garage
- x 16
Re: Fixed! Rough running GTi
Good fix J. Can you fix the weather too?
The Joy of BX with just one Citroën to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
-
- BXpert
- Posts: 612
- Joined: Tue Jan 25, 2011 10:48 pm
- x 11
Re: Fixed! Rough running GTi
I got wet doing the fix...
