Name that part...

Post by Mark.T » Fri Jul 08, 2016 1:55 pm

Been re-installing or replacing various parts under the bonnet on my 19TRS Series 2 before putting the transmission back in - HP pump, timing belt, starter motor... I was pretty carful with putting various smaller bits and pieces in labelled takaway trays, but have come across a few parts I can't recall where they came from #-o

I was hoping somebody might recognise them...

I expect there will be a few more - but first up are two types of washer. Firstly three similar steel washers about 2 cm diam., each with a small notch on one edge. Secondly a larger, thinner spring washer (about 3 cm diam.).

Photos are below, but I think they came out when I removed the FDV and disconnected the regulator and support from the transmisison/engine, but could also have come from around the steering rack as it has also been removed.



Any suggestions welcome
Mark T.
Melbourne, Australia
BX16 TRS Auto (Series 1)
BX19 TRS (Series 2)
C3 Pluriel

User avatar
JayW
1K Away
1K Away
Posts: 1590
Joined: Thu Dec 07, 2006 6:40 pm
Location: Now listen here you mullet...
x 13

Re: Name that part...

Post by JayW » Fri Jul 08, 2016 4:58 pm

Those really thin distorted washers appear to be from the seatbelt mounts. Possibly used as makeshift packing by p.o. ?
I have zero patience for your tedium.

rutter123
Over 2k
Posts: 2173
Joined: Sun Sep 02, 2012 9:54 pm
Location: South Lincs
x 52

Re: Name that part...

Post by rutter123 » Sat Jul 09, 2016 9:43 am

Could poss be gearbox bell housing washers? or starter motor?
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability

User avatar
sleepy0905
1K Away
1K Away
Posts: 1394
Joined: Thu Aug 25, 2005 9:23 am
Location: Birchwood, Lincoln

Re: Name that part...

Post by sleepy0905 » Sat Jul 09, 2016 8:14 pm

They look like the washers that go between the steering rack and the subframe possibly
2017 Seat Leon ST FR 2.0 150Bhp

User avatar
Mark.T
Confirmed BX'er
Posts: 47
Joined: Sat Jun 02, 2007 12:19 pm
Location: Melbourne, Australia
x 2

Re: Name that part...

Post by Mark.T » Fri Aug 19, 2016 2:45 pm

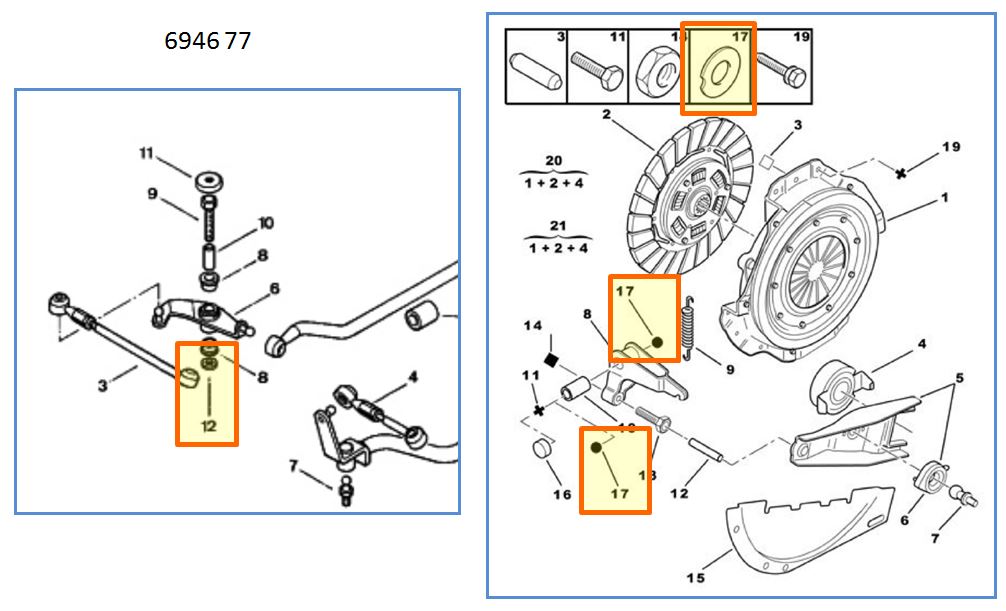

Thanks for suggestions - I think I worked out where these washers come from. The three 2 cm washers are probably part no 694677 - one of these came from below the gear change linkage where it pivots on the steering rack, and two came from above and below the clutch lever. I've marked these in the diagram below.

JayW mentioned seat belt mounts for the larger washer and that rang a bell - but not a BX one. A couple of years ago I borrowed a Mazda 323 from a friend for a few months and after a water leak from the boot removed the carpets and seats to dry out - This washer was from the seat belt mount. I think it was missed on reassembly and has been lurking on the garage floor since.
