How do I replace this hose?

Post by Jonesy »

Hi,

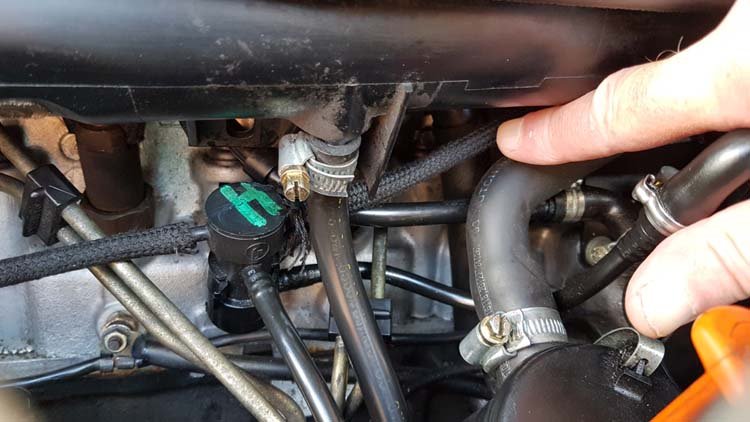

I bought a TZD Turbo Estate on Saturday and on Sunday the LHM hose I am pointing at split where it goes onto that thing with a green 'H' on it causing a right old mess! I cut the split end off the hose and fitted it back on. But my thinking is, if that end was old enough to split I suppose the other end could go imminently.

Question is where does the other end go to / how do I get to it? It just disappears into a black hole under the intercooler where I can't even get my hand into. Any ideas would be much appreciated.

Thanks in advance.
Attachments
Own copyright
Own copyright

User avatar
Jaba
1K Away
1K Away
Posts: 1574
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
x 27

Re: How do I replace this hose?

Post by Jaba »

I am puzzled by that pic. I don't have a diesel anymore but that looks like diesel leak back hose but I suppose it could be used for LHM in the correct length. If its for LHM then it will reappear at the side or rear of the intercooler and will make its way down to a return pipe connection somewhere near the subframe or maybe the pressure regulator.
Cutting back should be ok as there is no heat, oil or diesel at the other end.
The Joy of BX with just one Citroën to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.

RobC
BXpert
BXpert
Posts: 459
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 12

Re: How do I replace this hose?

Post by RobC »

Agree with Jaba. That doesn't look like any LHM connection block I've ever seen. Maybe it's a bodge from a previous owner. I've had to use some of that braided fuel hose for a couple of my LHM return lines and it works ok.
1991 Citroen BX 16v

rutter123
Over 2k
Posts: 2289
Joined: Sun Sep 02, 2012 9:54 pm
Location: South Lincs
My Cars: 65 Peugeot Boxer van 160k
Ven red tzd turbo 294k it will live again
Nissan Micra K13 the wife's run around
x 74

Re: How do I replace this hose?

Post by rutter123 »

That could poss be the lhm return pipe from the brake valve (doseur) as said some kind of heath Robinson repair, I'm pretty sure it just returns to the main body of the octopus.
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability

Jonesy
New Member
Posts: 2
Joined: Mon Jul 20, 2020 4:02 pm
Location: Chelmsford
My Cars: 1994 BX TZD Turbo Estate

Re: How do I replace this hose?

Post by Jonesy »

Hi there. You're quite correct that's the diesel return pipe on further inspection with the intercooler off. Replaced this and all the leak off hoses with some decent gates stuff and all cured now. Bit of a born again returnee to the BX and the bright green marks just made me assume it was LHM related. Dohh. Thanks for the feedback!
