How do you remove a pedal box?
- vulgalour
- BXpert
- Posts: 553
- Joined: Mon Feb 04, 2013 11:30 am
- Location: Kent
- My Cars: 1980 Austin Princess 1.7 HL
1987 Citroen BX 17RD - x 105
How do you remove a pedal box?
I'm stuck, I can't figure out how to remove the pedal box and instructions online that I've found are less than useless.
I've got this far.

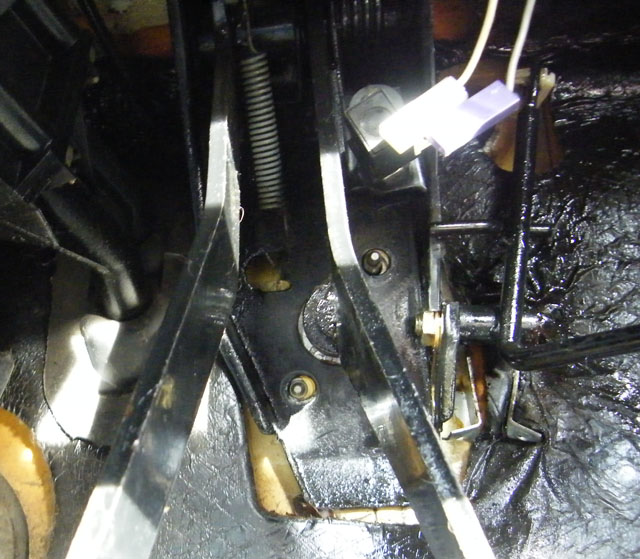

Do I need to undo these allen bolts?
How do I disconnect the pedals? I've never had to remove a pedal box before and while I'll normally just have a go, I'm stuck with this job.
I've got this far.
Do I need to undo these allen bolts?
How do I disconnect the pedals? I've never had to remove a pedal box before and while I'll normally just have a go, I'm stuck with this job.
-
- Over 2k
- Posts: 2695
- Joined: Sun Sep 02, 2012 9:54 pm
- Location: South Lincs
- My Cars: 90 Bx Tzd turbo ven red 295k
74 D Super 5 black
05 Volvo V50 2.0d 180k
65 Peugeot Boxer work van 280k - x 137
Re: How do you remove a pedal box?
there are 4 fasteners holding it in, 2 nuts hold the back plate to the floor pan and 2 allen head bolts at the top that you can see in the pic just above the springs, you will also need to disconnect the throttle cable and clutch cable and brake switch wiring, bolts are locktitened so will be stiff, i found it a lot easier to access if you remove the front seat. also looks as if yr throttle pedal housing has cracked as they all do. good luck.
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
- mat_fenwick
- Moderator
- Posts: 7326
- Joined: Tue Sep 20, 2005 4:08 pm
- Location: North Wales
- x 19
Re: How do you remove a pedal box?
WHS. Clutch cable is under a rubber cover in the engine bay secured by 4 screws - can't remember what access is like on the NA diesels but it may be easier to unhook it there before removing the pedal box.
- mat_fenwick
- Moderator
- Posts: 7326
- Joined: Tue Sep 20, 2005 4:08 pm
- Location: North Wales
- x 19
Re: How do you remove a pedal box?

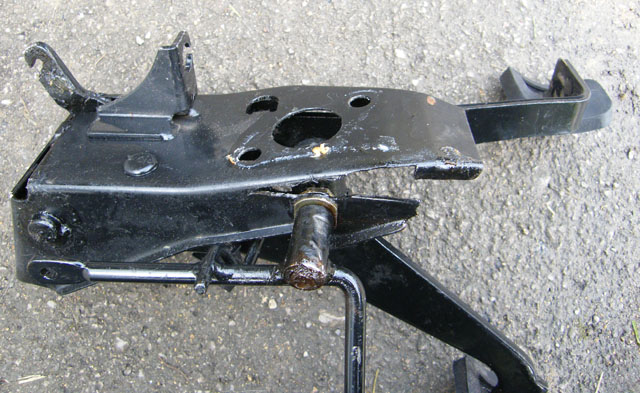

A great big crack in it!
