Heater - no air throughput
On the TZD, there is no air coming out of the vents. Well, nothing more than a trickle. The heater blower is going great guns, but there's still no air, even when moving. I suspect the flap that opens as you turn the blower motor dial is not actually opening. Any tips on how to get it open without having to remove most of the car first?
- mat_fenwick
- Moderator
- Posts: 7326
- Joined: Tue Sep 20, 2005 4:08 pm
- Location: North Wales
- x 19
Re: Heater - no air throughput
Ironically, my new acquisition has the same problem, although to start with the blower wasn't working either. I temporarily wired that directly to the battery (whilst sat in a pub car park)
but all that achieved was more noise and no more air. I'll try and find the relevant flaps and post back in due course.
but all that achieved was more noise and no more air. I'll try and find the relevant flaps and post back in due course.
-
- Over 2k
- Posts: 3940
- Joined: Sun Dec 04, 2005 2:25 pm
- Location: Wales
- Contact:
Re: Heater - no air throughput
Thanks Mat. I've been studying schematics and it does suggest there's a cable from the middle dial to a flap on top of the heater unit. That's separate from the blower unit though.
Scary how we both ended up on epic BX estate collections (with duff heaters) passing close to Chester, having to deal with snow (and did you get the torrential rain too?).
Scary how we both ended up on epic BX estate collections (with duff heaters) passing close to Chester, having to deal with snow (and did you get the torrential rain too?).
Re: Heater - no air throughput
I went through all this with Sophie last year Ian, luckily being LHD and a MK 1 everything was much easier to get at. I was quite surprised how easily i coped with it.
I think you will have to remove some of the trim around the steering wheel to gain access but there is always the blasted steering column in the ruddy way. I wonder if the cable has become detached at one end. Bits can break at the control switch end if its been forced in its time.
Good luck with it.
Andy
I think you will have to remove some of the trim around the steering wheel to gain access but there is always the blasted steering column in the ruddy way. I wonder if the cable has become detached at one end. Bits can break at the control switch end if its been forced in its time.
Good luck with it.
Andy
Re: Heater - no air throughput

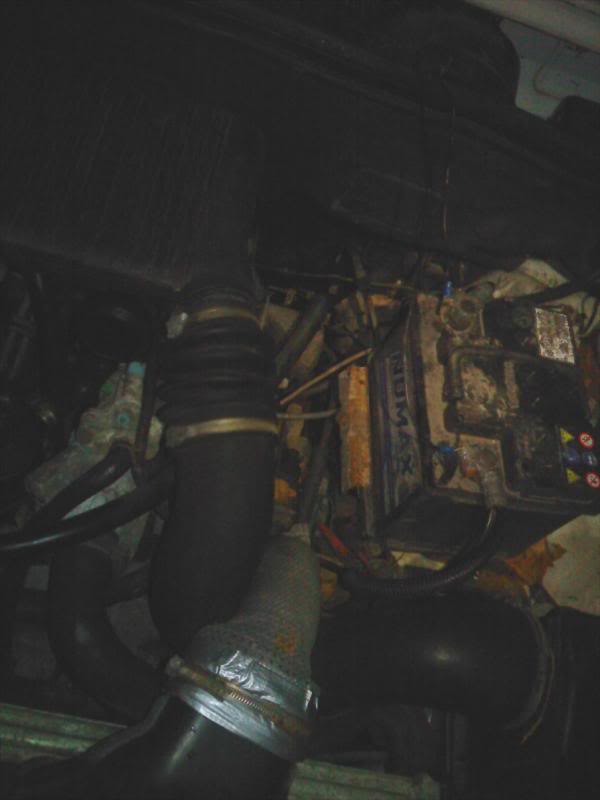

Is this any help?...
I am pretty sure it's the control top right rear in the picture that opens/closes the top vent to atmosphere.
If you remove the fan, you can then check if it's working.
Good luck
I am pretty sure it's the control top right rear in the picture that opens/closes the top vent to atmosphere.
If you remove the fan, you can then check if it's working.
Good luck
Visa 17D 1986 192K Sorn
BX 17RD 1986 220K Scrapped 2013 - Too much rust.
BX 17TZD 1992 192K
306 XRDT 1996 175K
BX 17RD 1986 220K Scrapped 2013 - Too much rust.
BX 17TZD 1992 192K
306 XRDT 1996 175K
-
- Over 2k
- Posts: 3940
- Joined: Sun Dec 04, 2005 2:25 pm
- Location: Wales
- Contact:
Re: Heater - no air throughput
Thanks Brian. I'll see if I have time to have a play later. It's currently a gorgeous day but I've got a serious workload to deal with. I can't quite get my bearings with how that unit sits in the car.
Re: Heater - no air throughput
Ian, it's very simple to work out the orientation with the photo /\ that Brian has kindly posted !Dollywobbler wrote:Thanks Brian. I'll see if I have time to have a play later. It's currently a gorgeous day but I've got a serious workload to deal with. I can't quite get my bearings with how that unit sits in the car.
Your starring direct @ the heater control valve (Which can be clearly identified by the long set-screws and the control bell crank and valve open/close rod above ) and if you follow down to the right-hand side of the heater valve block you can see the inlet/outlet pipes which goes thro' the bulk-head, which also go thro' the oval rubber bulk-head seal (the heater Matrix its to the left of the heater control valve)
.
-
- Over 2k
- Posts: 3940
- Joined: Sun Dec 04, 2005 2:25 pm
- Location: Wales
- Contact:
Re: Heater - no air throughput
Right. Got you. So I guess the scuttle panel needs to come off to allow further investigation. Let's hope for some spare time and dry weather next week!
- docchevron
- The Immoderate half of the admin team
- Posts: 7524
- Joined: Sun Jun 04, 2006 7:03 pm
- Location: A Bucket of Fish
- x 7
- Contact:
Re: Heater - no air throughput
yeah, if you remove the blower motor, you'll see the flap in the hole beneath it.
If it's snapped the bowden cable it's most likely at the dial end rather than the heater box end, it clips into a shitty bit of plastic. That said, you might be really lucky and find it's just a bowden clip thats popped off the back of the PCB box.
If it's snapped the bowden cable it's most likely at the dial end rather than the heater box end, it clips into a shitty bit of plastic. That said, you might be really lucky and find it's just a bowden clip thats popped off the back of the PCB box.
Smokes lots, because enough's enough already!
Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
Re: Heater - no air throughput
it used to be a common fault of the cables at the control end becoming kinked, so turning the knob's did not relay the movement on to your flaps,
the other one was the cable would become unclipped at the control end's
you need to turn your knob/s whilst watching your flaps
regards malcolm
the other one was the cable would become unclipped at the control end's
you need to turn your knob/s whilst watching your flaps
regards malcolm
curent ride
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
-
- Over 2k
- Posts: 3940
- Joined: Sun Dec 04, 2005 2:25 pm
- Location: Wales
- Contact:
Re: Heater - no air throughput
Oo-er missus. I shall try and investigate this week.
-
- Over 2k
- Posts: 3940
- Joined: Sun Dec 04, 2005 2:25 pm
- Location: Wales
- Contact:
Re: Heater - no air throughput
That wasn't so bad. Heater motor out of the way and it was very obvious that the flap was shut. I didn't bother investigating - just shoved the flap open. That'll do.
