Mystery Diaphragm
Re: Mystery Diaphragm
I have 2 Z1 32 34 s' and I don't have that weird attachment. It may be a way of setting the idle stop from the front not the rear. It looks like one half of the autochoke mechanism but adapted to take the threaded screw.
I take it it is an autochoke model, if not it may be for a manual choke attachment. It's not the same as the RCK33 kit which is still available for auto to man conversion.
I take it it is an autochoke model, if not it may be for a manual choke attachment. It's not the same as the RCK33 kit which is still available for auto to man conversion.
Re: Mystery Diaphragm
Hi.
Thanks for the reply.
Yeah its an autochoke.
I had a guess that it might be something to do with idle. It does have an idle adjustment at the rear where you would expect it though.
I might just remove it, or leave it there and ignore it unless it has an adverse effect on the carbs operation once I fit it, in which case I will perhaps contact Webcon, who I bought it from to ask for some advice.
Thanks for the reply.
Yeah its an autochoke.
I had a guess that it might be something to do with idle. It does have an idle adjustment at the rear where you would expect it though.
I might just remove it, or leave it there and ignore it unless it has an adverse effect on the carbs operation once I fit it, in which case I will perhaps contact Webcon, who I bought it from to ask for some advice.
Last edited by juno106 on Thu May 16, 2013 3:24 pm, edited 2 times in total.
Re: Mystery Diaphragm
it might be and anti flood/strangle capsule,
similar to a dersh ( 2CV ) has,
you should be able to tell what it does firstly by following the rod at the back of it,
or attach a length of pipe to the spout and suck on the pipe whilst watching the mechanism,
regards malcolm
ps.
hope you dont get grease on your mums sofa
similar to a dersh ( 2CV ) has,
you should be able to tell what it does firstly by following the rod at the back of it,
or attach a length of pipe to the spout and suck on the pipe whilst watching the mechanism,
regards malcolm
ps.
hope you dont get grease on your mums sofa
curent ride
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
Re: Mystery Diaphragm
It appears to pull againts the throttle mechanism, which would back up your suggestion of its purpose. I know what you mean about 2cv carb as I've got a Dyane back at my home in N. Ireland (currrently reside in Glasgow).citronut wrote:it might be and anti flood/strangle capsule,
similar to a dersh ( 2CV ) has,
you should be able to tell what it does firstly by following the rod at the back of it,
or attach a length of pipe to the spout and suck on the pipe whilst watching the mechanism,
regards malcolm
ps.
hope you dont get grease on your mums sofa
I think I'll have a go at connecting it up if I can get my hands on a suitable T-piece to splice with the vacuum advance pipe.
ps.

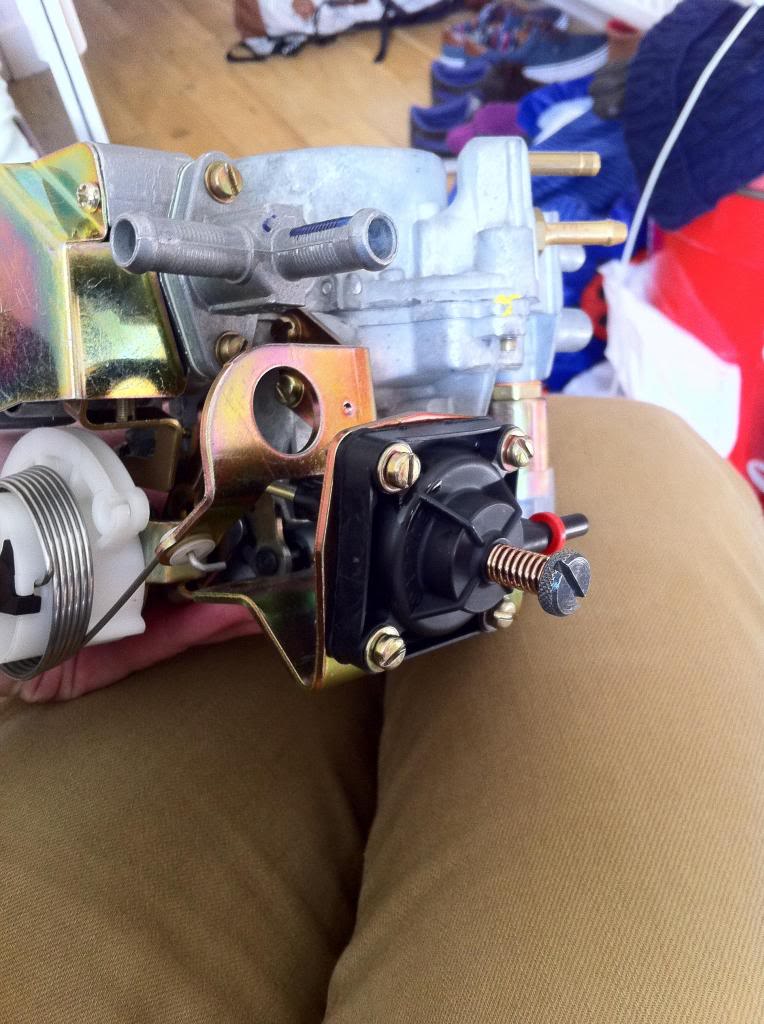

In respose to your concerns over upholstery. Thats my lap the carb. is resting on, i.e beige trousers, not beige sofa
Matt.
- electrokid
- 1K Away
- Posts: 1764
- Joined: Fri May 09, 2008 2:14 pm
- Location: Woking
Re: Mystery Diaphragm
If that's a vacuum connection to the plastic housing it could be an anti-stall mechanism.
If the engine revs fall close to zero the vacuum also fails - a diaphram previously held by the vacuum against a spring is released when the vacuum fails and either operates a lever to pump fuel directly into the carb or the carb side of the diaphram (as opposed to the vacuum side) is the pump itself and the diaphram movement pumps fuel into the carb and prevents the stall.
If the engine revs fall close to zero the vacuum also fails - a diaphram previously held by the vacuum against a spring is released when the vacuum fails and either operates a lever to pump fuel directly into the carb or the carb side of the diaphram (as opposed to the vacuum side) is the pump itself and the diaphram movement pumps fuel into the carb and prevents the stall.
1992 BX19 TGD estate 228K Rusty - SORNed
2002 C5 HDi SX estate
2002 C5 HDi SX estate
Re: Mystery Diaphragm
I forget what the thing is called but it is on the Aircon models and is part of that function I am lead to believe. I know some fiddling with it while running the aircon on adjusts the idle.
It IS fitted to both Aircon models of my 19TZS fleet but not fitted to the 19TRS infact I have never seen it fitted to any other BX petrol unless its got aircon.
Will have a look tommorow for you to see how it conects and if you can indeed not bother with it, my hunch is you dont need it.
It IS fitted to both Aircon models of my 19TZS fleet but not fitted to the 19TRS infact I have never seen it fitted to any other BX petrol unless its got aircon.
Will have a look tommorow for you to see how it conects and if you can indeed not bother with it, my hunch is you dont need it.
1991 BX19 TZS 04/01/91 (Deceased)
1990 BX19 TRS 27/10/89 (Reborn)
1992 BX19 TXD (Ex UK - K 744 SDF) 15/06/92
1990 BX19 TZS Auto 06/11/1989
1992 BX TZD Turbo Estate (Ex UK) 1/07/91
1990 BX19 TRS 27/10/89 (Reborn)
1992 BX19 TXD (Ex UK - K 744 SDF) 15/06/92
1990 BX19 TZS Auto 06/11/1989
1992 BX TZD Turbo Estate (Ex UK) 1/07/91
Re: Mystery Diaphragm
kiwi wrote:I forget what the thing is called but it is on the Aircon models and is part of that function I am lead to believe. I know some fiddling with it while running the aircon on adjusts the idle.
It IS fitted to both Aircon models of my 19TZS fleet but not fitted to the 19TRS infact I have never seen it fitted to any other BX petrol unless its got aircon.
Will have a look tommorow for you to see how it conects and if you can indeed not bother with it, my hunch is you dont need it.
i think this is more likely the correct answer,
so yes also anti stall,
and if so it will bring the rev's back up whilst the air con pump is running
regards malcolm
curent ride
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
K reg BX 17TD TZD est
also own
K reg D special
no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)
Re: Mystery Diaphragm
Thanks for the help.
Much appreciated.
Matt.
Much appreciated.
Matt.
Re: Mystery Diaphragm
I looked on the 19TZS with it fitted and it is part of the aircon.
Basically the tube out goes over to the passenger side to another gizmo attached to the bulkhead under the battery tray with a couple wires attached to this gizmo. Another tube then runs back to the front of the carb, directly behind that Diaphram.
On the non aircon models that tube on the front of the carb is blanked off. Is that the case with yours? I have no idea if just directly pipining from the diaphram to the carb port will affect your carb operation.
Be interested in the solutions you find to this.
Basically the tube out goes over to the passenger side to another gizmo attached to the bulkhead under the battery tray with a couple wires attached to this gizmo. Another tube then runs back to the front of the carb, directly behind that Diaphram.
On the non aircon models that tube on the front of the carb is blanked off. Is that the case with yours? I have no idea if just directly pipining from the diaphram to the carb port will affect your carb operation.
Be interested in the solutions you find to this.
1991 BX19 TZS 04/01/91 (Deceased)
1990 BX19 TRS 27/10/89 (Reborn)
1992 BX19 TXD (Ex UK - K 744 SDF) 15/06/92
1990 BX19 TZS Auto 06/11/1989
1992 BX TZD Turbo Estate (Ex UK) 1/07/91
1990 BX19 TRS 27/10/89 (Reborn)
1992 BX19 TXD (Ex UK - K 744 SDF) 15/06/92
1990 BX19 TZS Auto 06/11/1989
1992 BX TZD Turbo Estate (Ex UK) 1/07/91
- electrokid
- 1K Away
- Posts: 1764
- Joined: Fri May 09, 2008 2:14 pm
- Location: Woking
Re: Mystery Diaphragm
It was common at one time to operate aircon components (pump clutch, coolant valves etc) by a vacuum switch in the dash. In this case the vaccuum (switched to that port when the aircon is switched on) is obviously used to change the idle setting on the carb so the car doesn't stall when the aircon is running and adding a small extra load on the engine.I looked on the 19TZS with it fitted and it is part of the aircon.
So when vaccuum is applied to that port the revs will increase slightly - that's the opposite of an anti-stall arrangement where revs are increased when the vaccuum fails
So if you don't have aircon it's best to ignore that assembly altogether.
1992 BX19 TGD estate 228K Rusty - SORNed
2002 C5 HDi SX estate
2002 C5 HDi SX estate
- Tim Leech
- Over 2k
- Posts: 15578
- Joined: Tue Apr 15, 2008 11:12 am
- Location: Derbyshire
- My Cars: Various
- x 148
Re: Mystery Diaphragm
Ive had a few 1.6/1.9 carb fed cars but never seen that before. Be interesting to see how well it runs with a new carb!
Lots of Motors, mostly semi broken....
Re: Mystery Diaphragm
Just fitted the carburettor tonight. Runs like a dream. No more horrible flat spots and the throttle response is greatly improved.
Re: Mystery Diaphragm
Yes but how did you deal with the ports of the diaphram and on the front of the carb??
