Parts of Hydraulic - Gasa

Post by Gasa »

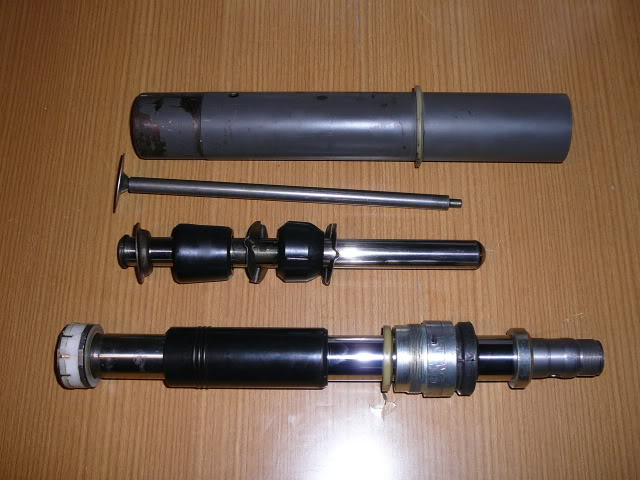

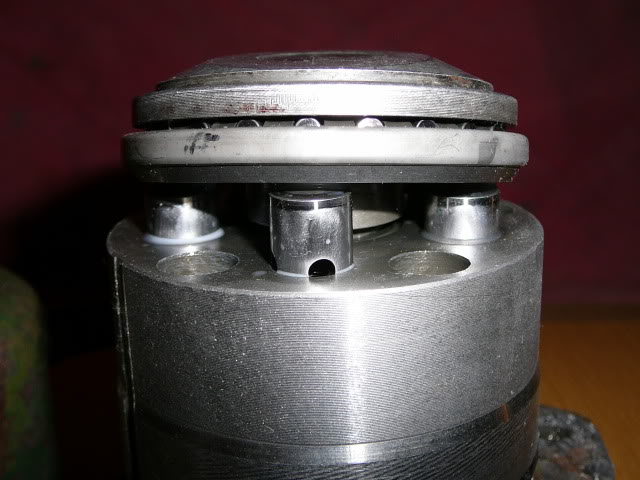

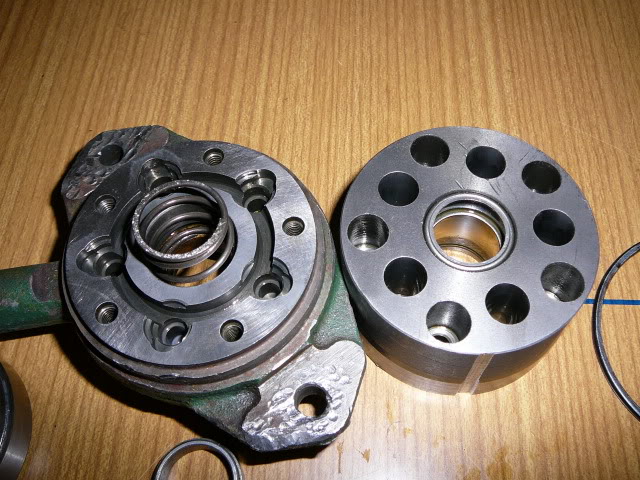

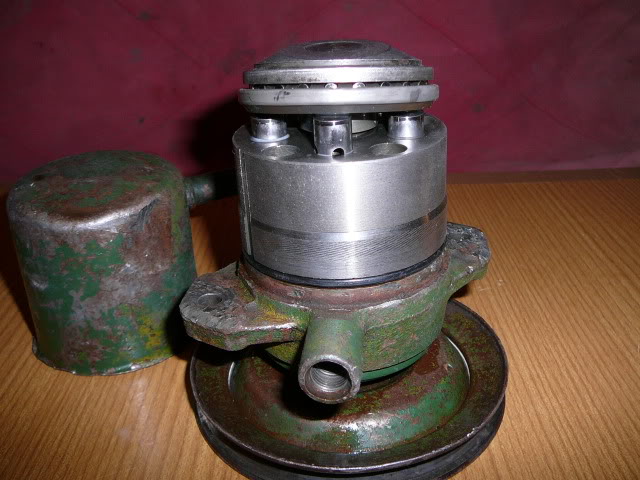

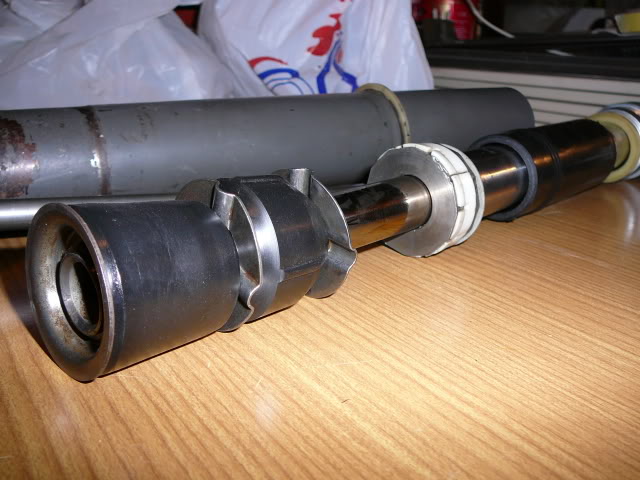

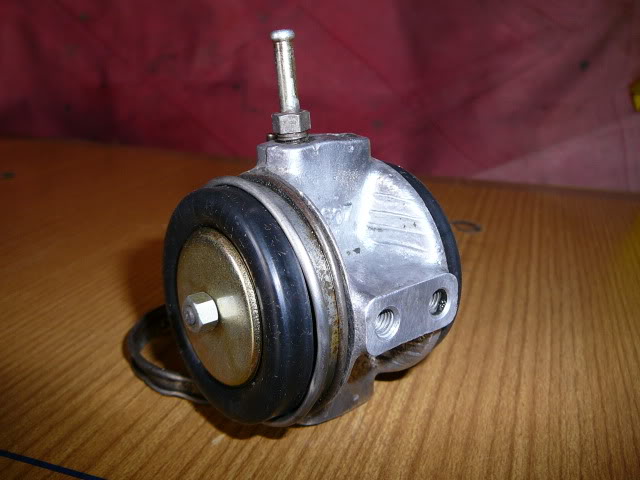

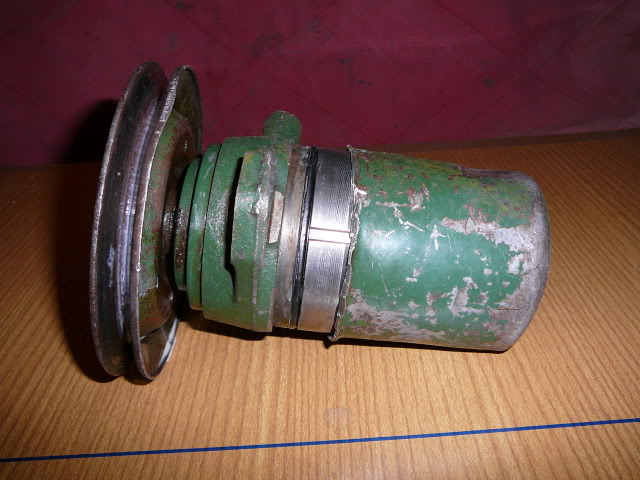

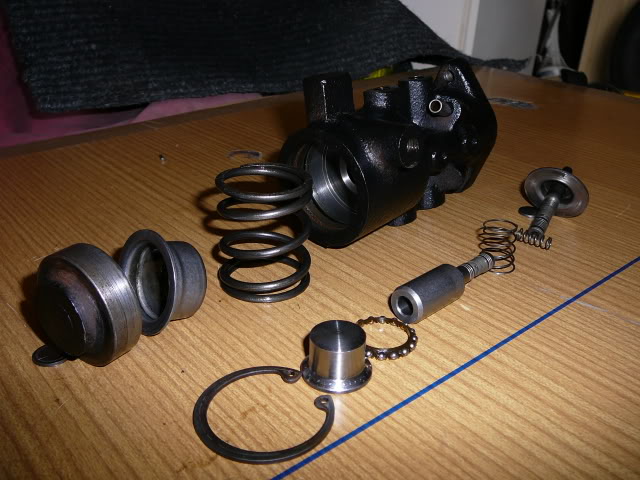

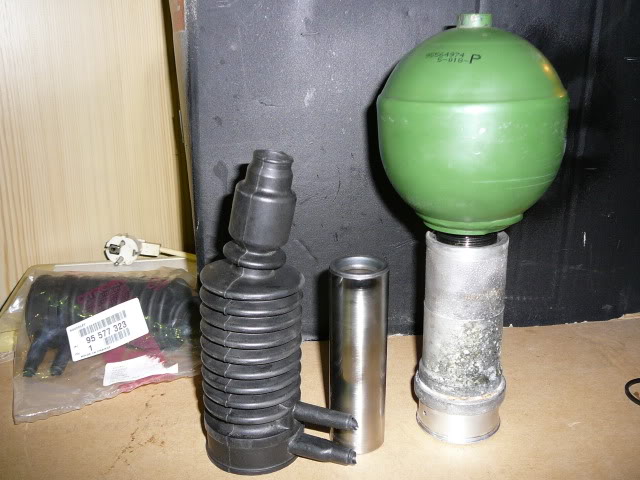

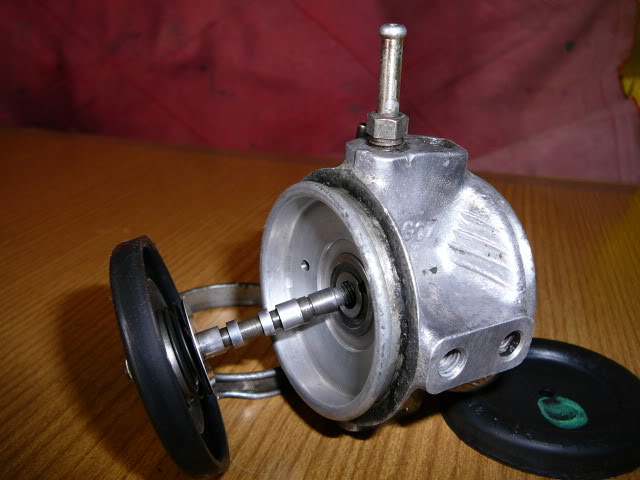

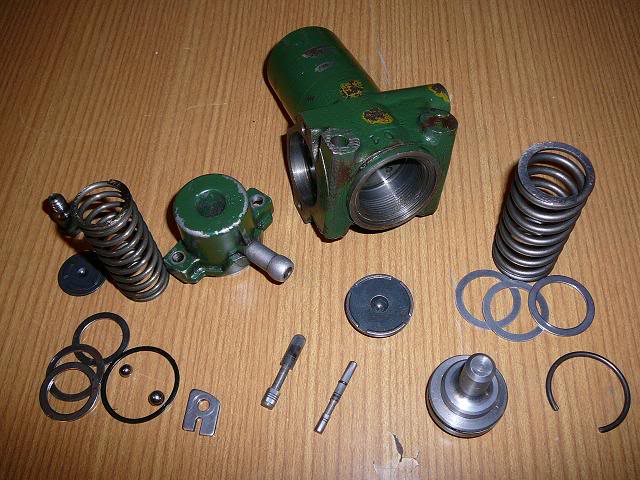

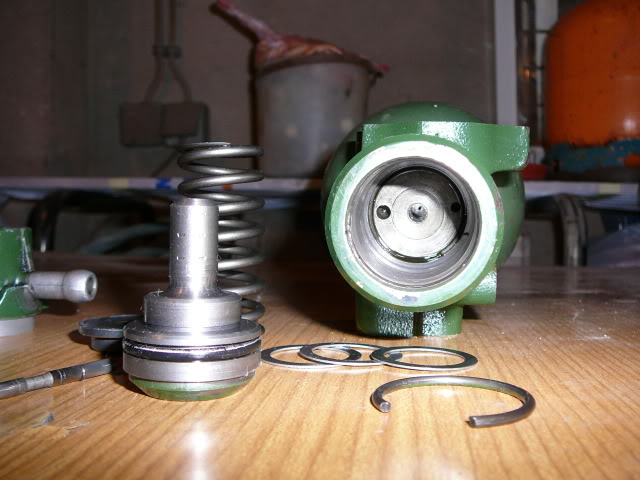

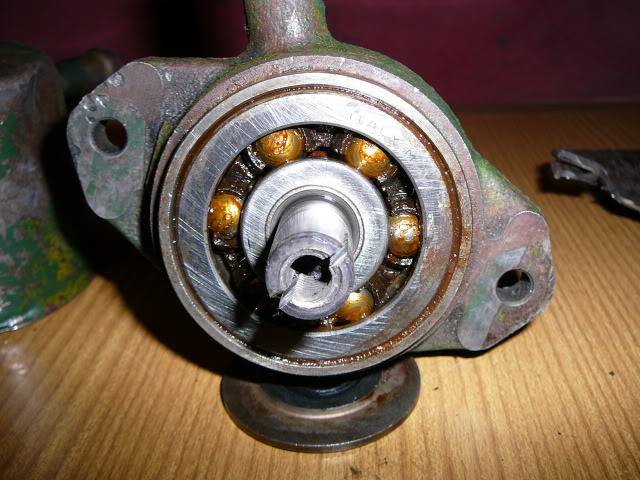

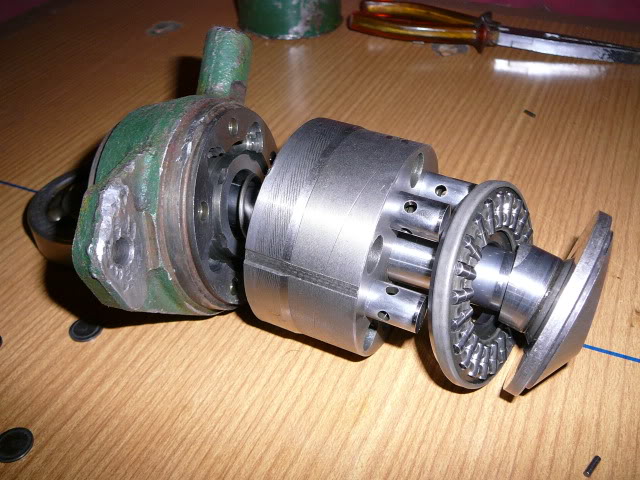

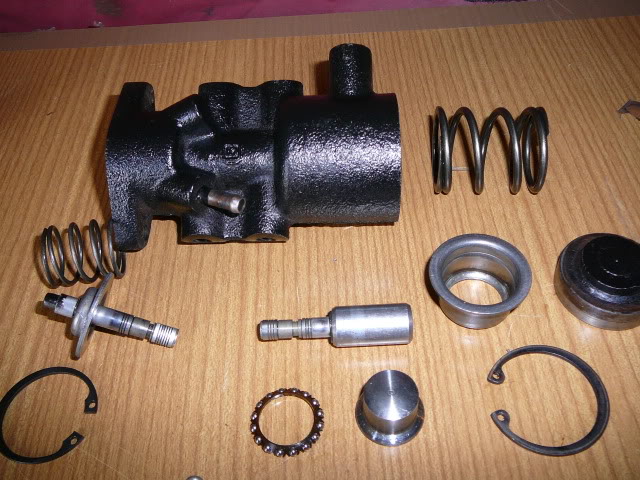

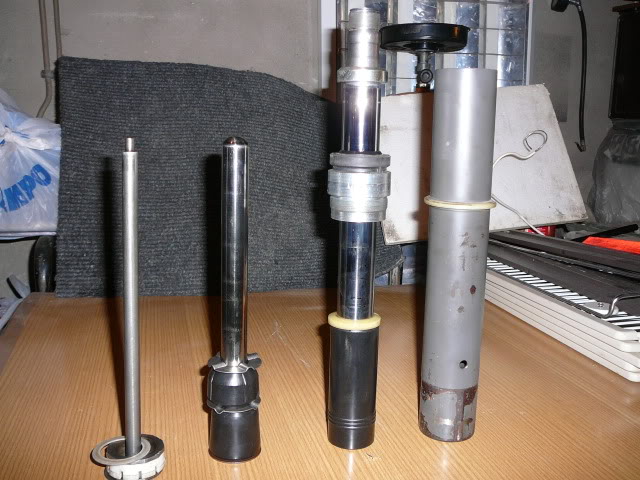

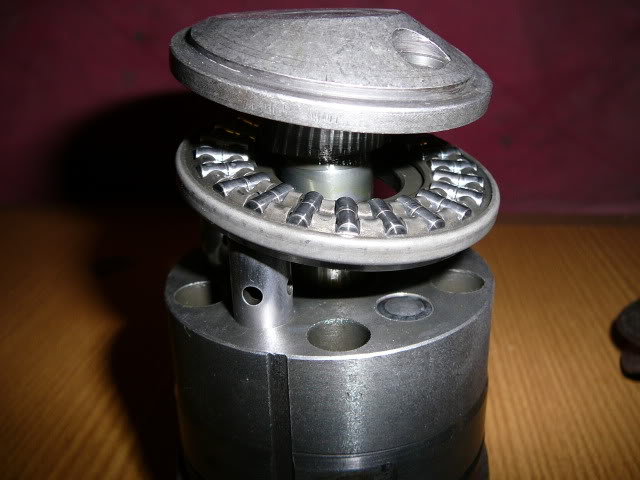

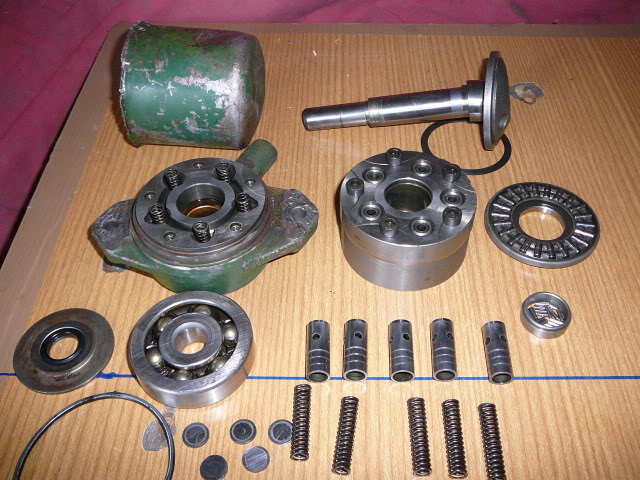

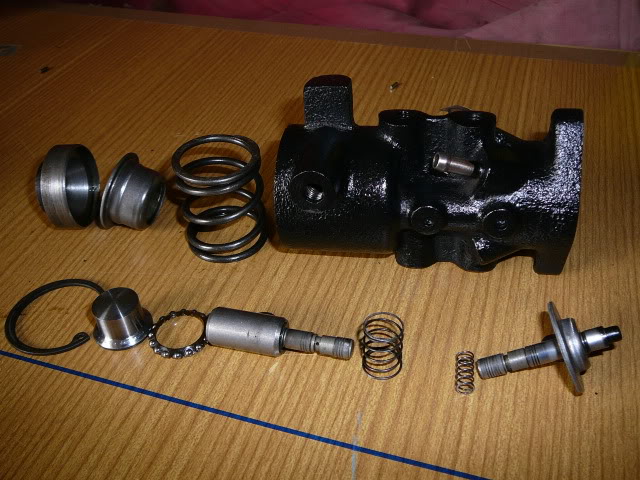

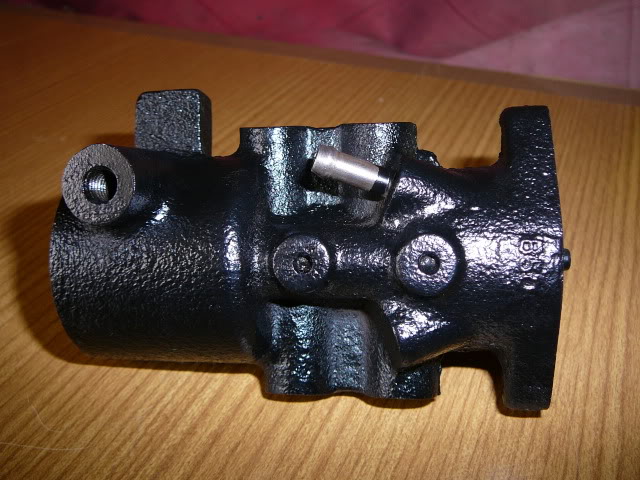

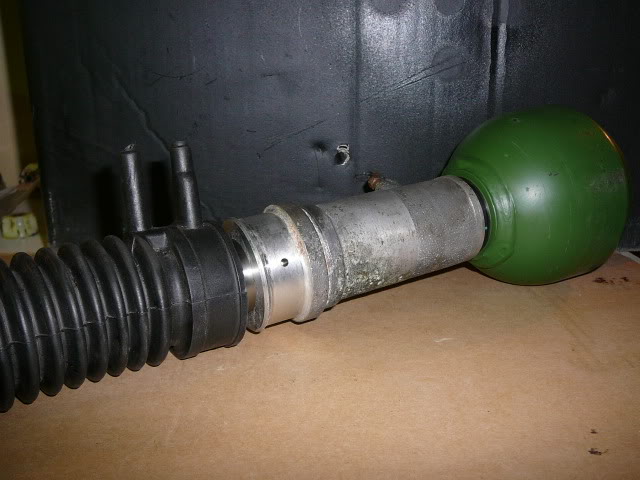

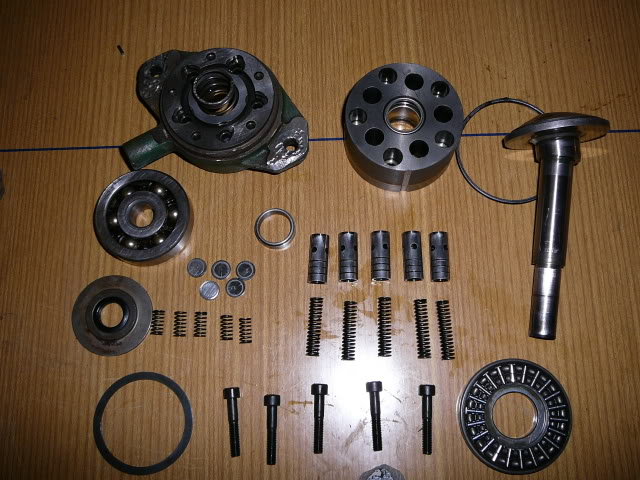

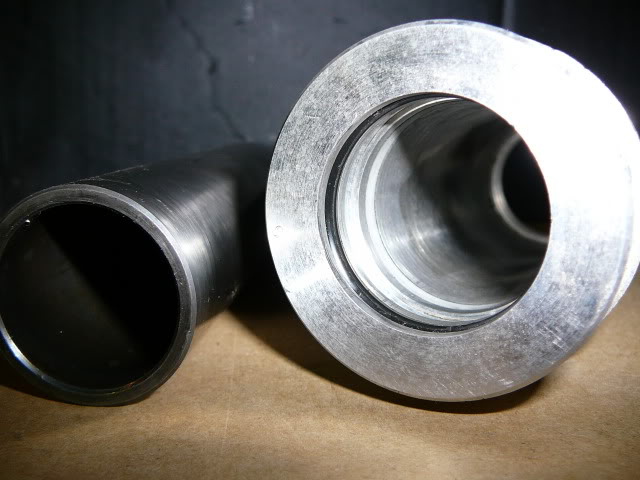

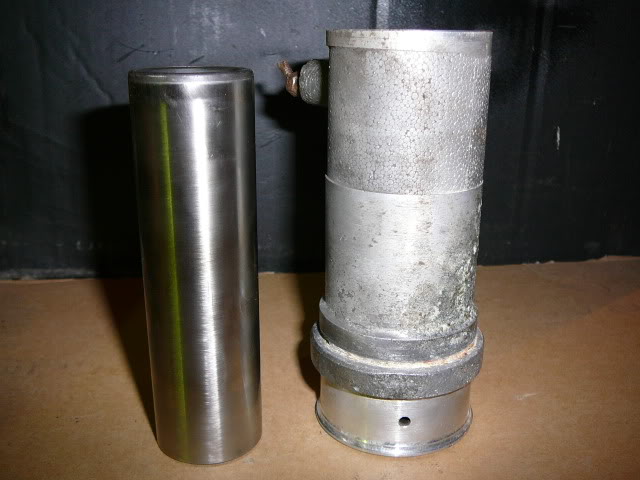

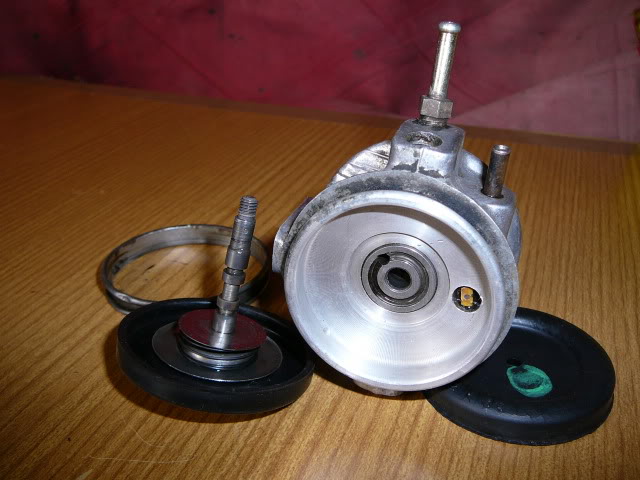

Here to put pictures hydraulics of BX. You can view and , I think there is no need to enumerate all the separate parts as they are all already known.

Image Image Image Image Image
Gasa
Confirmed BX'er
Posts: 35
Joined: Tue Aug 19, 2014 7:19 am
x 1

Re: Parts of Hydraulic - Gasa

Post by Gasa »

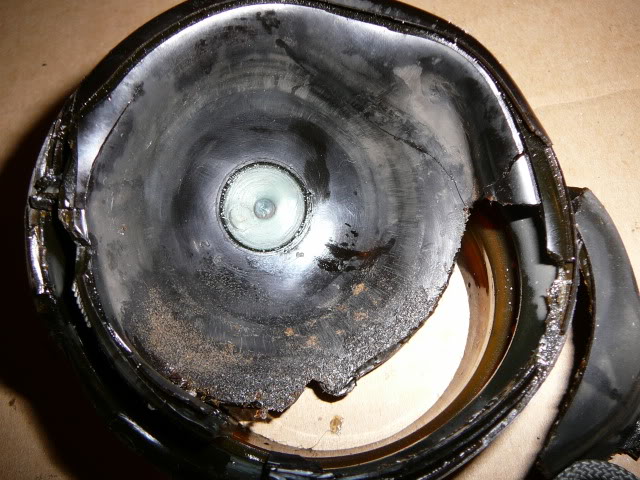

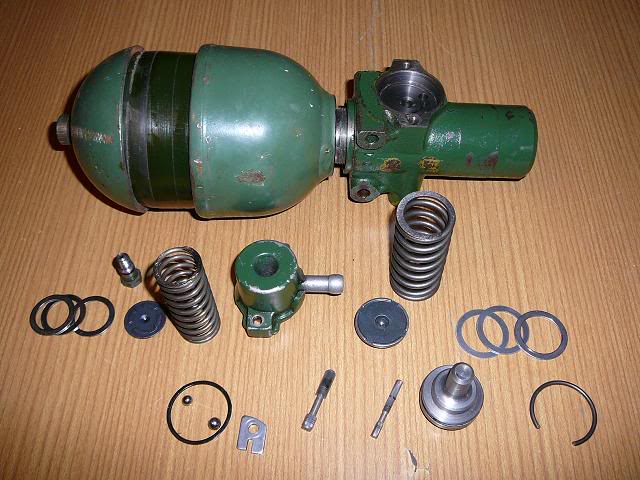

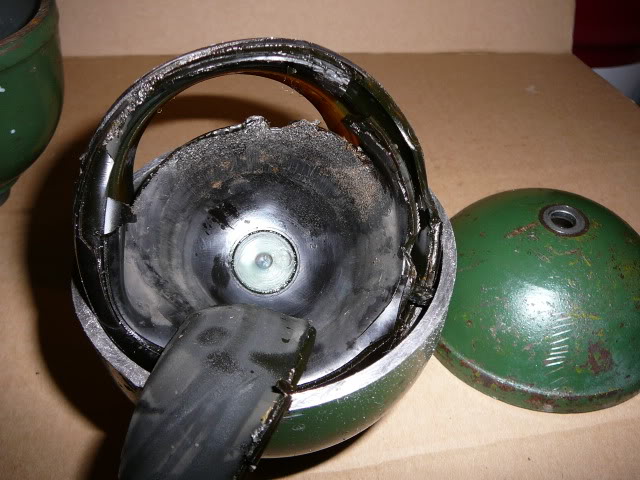

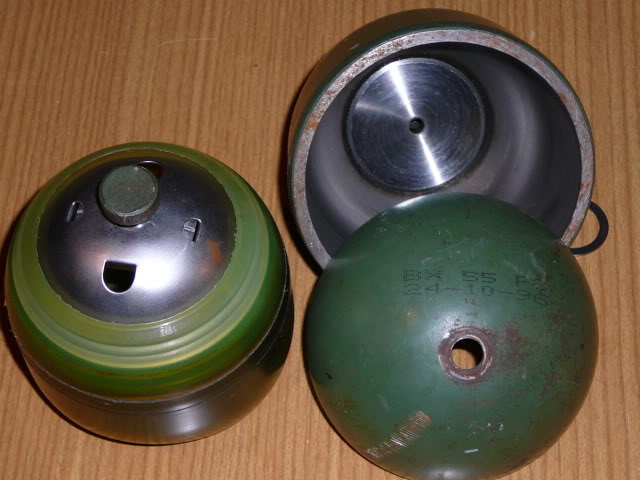

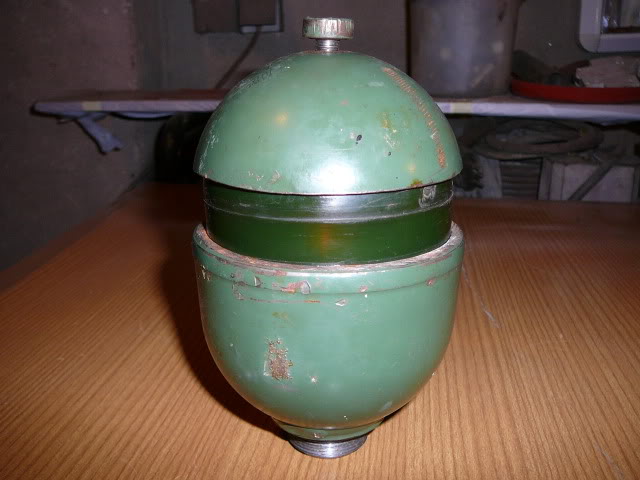

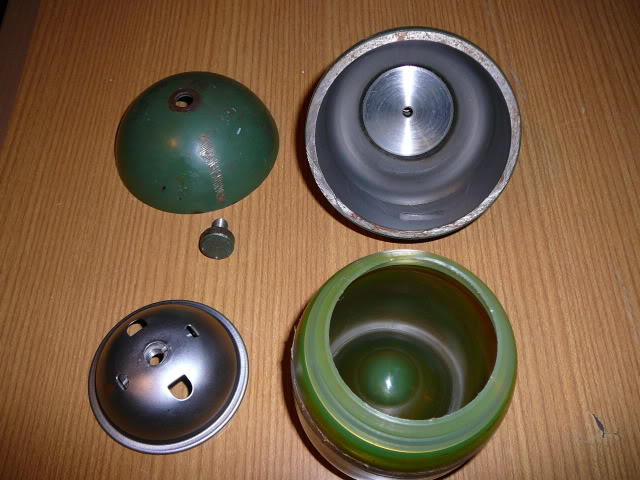

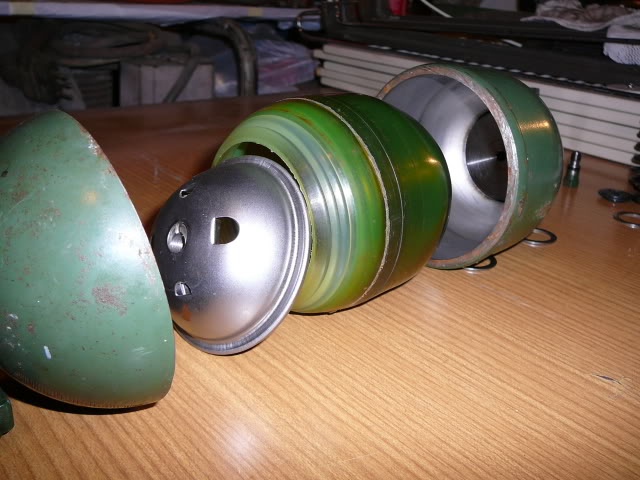

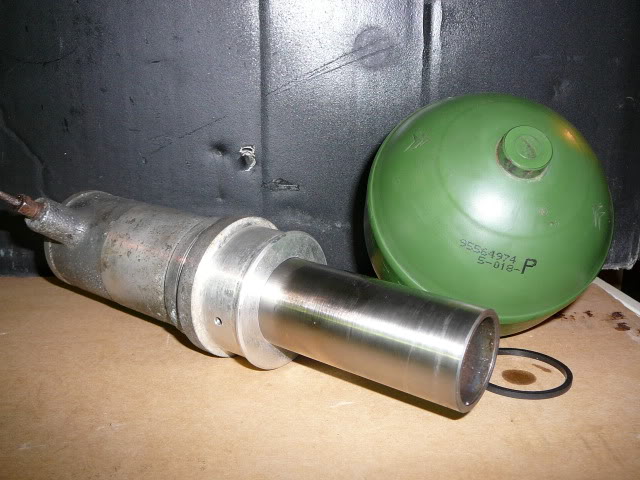

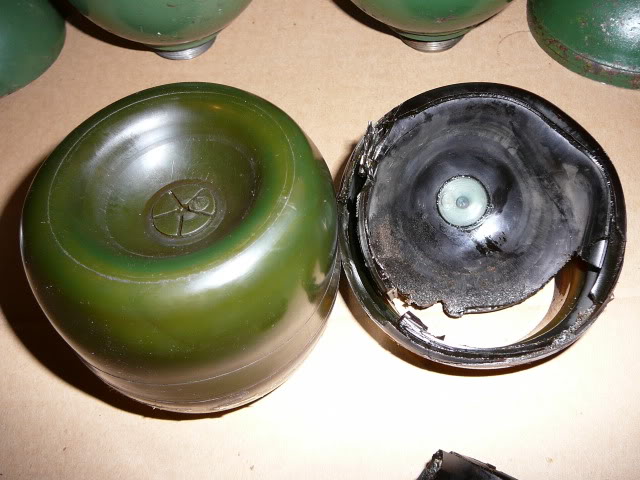

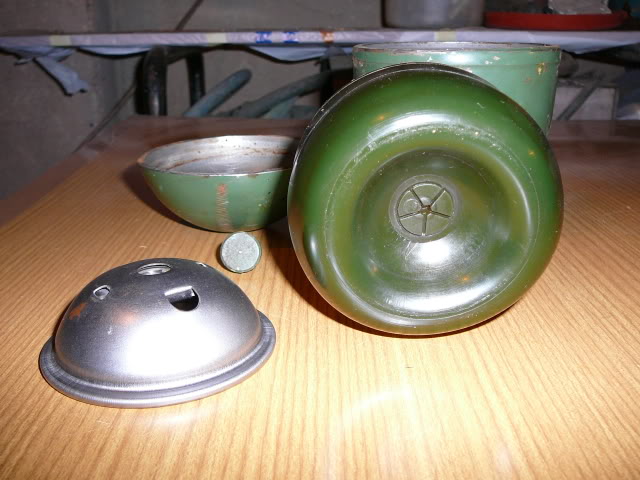

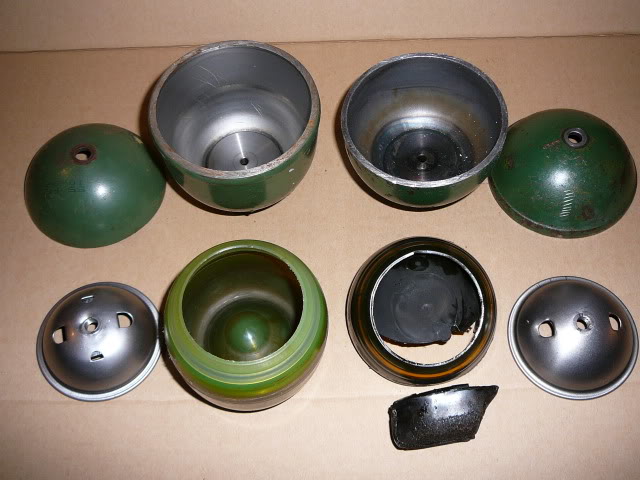

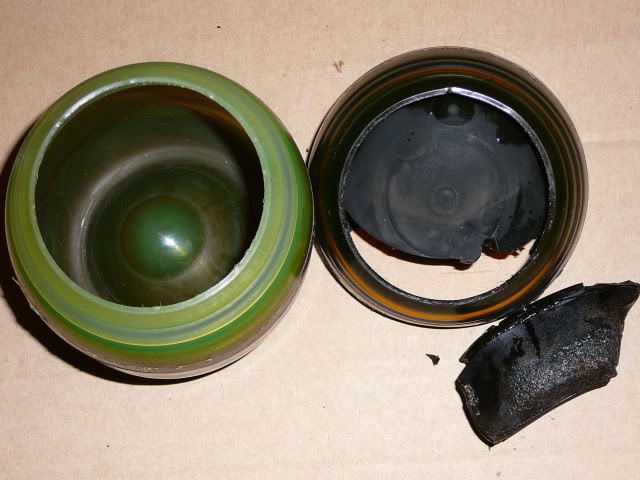

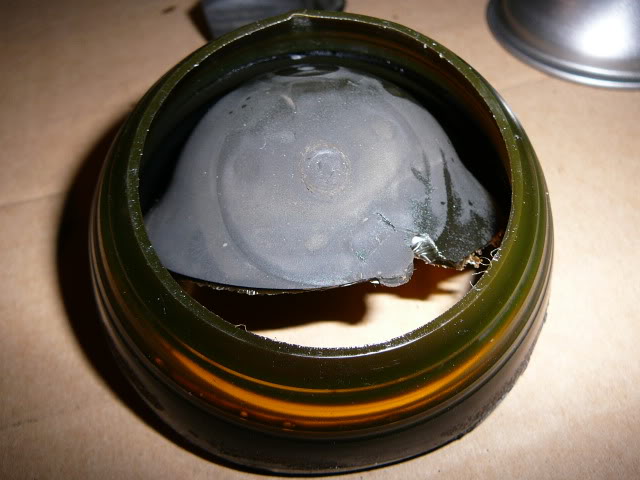

This is how the sphere when not in use LHM but different oils for the hydraulics on trucks, excavators and other machines.


Image Image Image Image Image
Gasa
Confirmed BX'er
Posts: 35
Joined: Tue Aug 19, 2014 7:19 am
x 1

Re: Parts of Hydraulic - Gasa

Post by Gasa »

Image Image

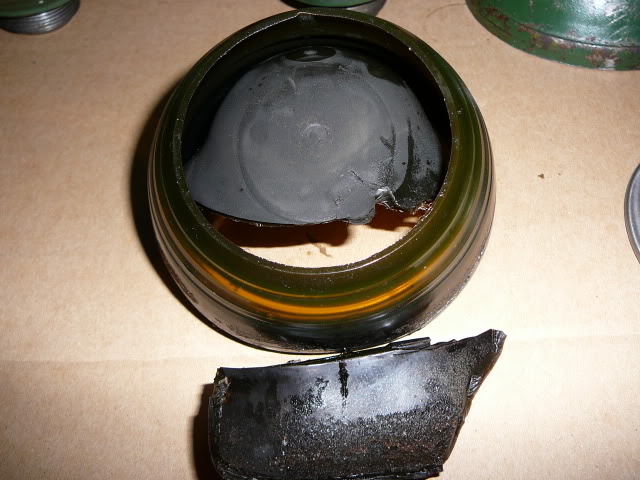

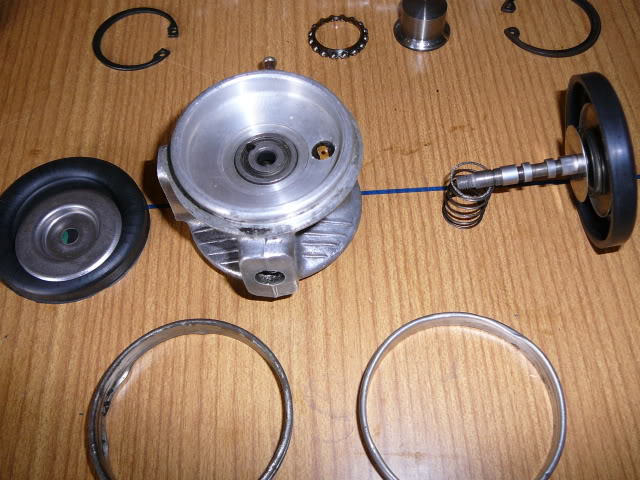

Means other than LHM nothing else pour into the system.
