Rear arm - too far gone?

Post by Phil Peters » Mon Dec 08, 2014 5:18 pm

Hi all,

I picked up a set of used rear arms a little while ago so I could rebuild them and then swap them over with the ones on my car.

I finally had a chance to take a look at them today and I spent a few minutes removing the metal tube and bearings on the first arm. One side in particular is looking pretty nasty:



Notice in the above photo how the rollers have left imprints on the inside of the arm. Do you think this arm is too far gone? It seems to me that the damage is confined to the area where the dust shield goes but a second opinion would be much appreciated.

Cheers,

Phil

1992 BX19 TGD (aka Maurice), N/A diesel, silver with Zenith trim.

rutter123
Over 2k
Posts: 2184
Joined: Sun Sep 02, 2012 9:54 pm
Location: South Lincs
My Cars: 65 Peugeot Boxer van 160k
Ven red tzd turbo 294k it will live again
Nissan Micra K13 the wife's run around
x 54

Re: Rear arm - too far gone?

Post by rutter123 » Mon Dec 08, 2014 7:44 pm

If the seats for the outer bearing races are still intact then you may get away with rebuilding them, seen worse.
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability

User avatar
mat_fenwick
Moderator
Posts: 7279
Joined: Tue Sep 20, 2005 4:08 pm
Location: North Wales
x 13

Re: Rear arm - too far gone?

Post by mat_fenwick » Mon Dec 08, 2014 10:03 pm

So long as you can get the race in OK (filing away any burrs if needs be) then I don't see a problem. Mine were similar the first time I did them at 145k miles, so what I did to provide a water seal was to squirt in some (non atoxy) silicone sealant. They needed doing again at 190k miles, and it seemed as though the silicone had failed and let water in, although I caught them before they'd gone too far.

That time I filled the damage with JB Weld after I pushed the seal in, making sure the surface was grease-free. I was interested to see how it was lasting, so checked it a couple of years ago at around 220k miles. All seemed intact, so on that basis I'd say JB did a better job of sticking to the metal and sealing.

1993 1.9 TZD Turbo Estate
1996 3.9 V8 Discovery
1993 VW LT35 campervan
1985 Hyundai Stellar V8
2016 Hyundai iLoad

Tinkley
1K Away
1K Away
Posts: 1495
Joined: Sat Jun 06, 2009 11:27 am
Location: N Hants England
x 6

Re: Rear arm - too far gone?

Post by Tinkley » Mon Dec 08, 2014 10:49 pm

It's a long time since I've done them but if the inner race piece is still in one piece and you can drift it out, I don't see a problem. The lower photo makes it look as if the inner part (tapered) is still there and the needles have gone outboard of it. I could be wrong. Be thankful they are cast iron arms, the XMs' have alloy ones.... :wink:
In the worst case a sleeve could be machined along with the arm and inserted into the end of the arm. BTW keep the spacers, which are specific to each side. When I did mine the rollers themselves had just disintegrated inside the bearing sleeves giving a wonderful creaking noise with the suspension rise and fall and when you got in the car!. But they were bone dry on dismantling.

citronut
Over 2k
Posts: 2781
Joined: Wed Oct 31, 2007 7:55 am
Location: EAST SUSSEX UK

Re: Rear arm - too far gone?

Post by citronut » Tue Dec 09, 2014 9:15 am

as all / \

the area that is damaged is only the seal seat, so as long as you pack loads of grease between the bearing and seal this will be fine, like other replys i have seen much wore than that arm

regards malcolm
curent ride
K reg BX 17TD TZD est
also own
K reg D special

no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)

User avatar
themildbunch
BXpert
BXpert
Posts: 592
Joined: Fri Apr 30, 2010 9:38 pm
Location: Stroud, UK
x 4

Re: Rear arm - too far gone?

Post by themildbunch » Tue Dec 09, 2014 9:46 am

..that_ My offside one was worse than that but the bearing seat was ok just and I filled it with masses of Mobile marine type grease several years ago and it's been fine since....
1988 BX 19 Gti 16v
1991 BX 17 TZD Estate
1991 BX 17 TZD Estate

Phil Peters
Confirmed BX'er
Posts: 46
Joined: Sun Feb 03, 2013 7:15 pm
Location: Warwickshire, UK

Re: Rear arm - too far gone?

Post by Phil Peters » Tue Dec 09, 2014 1:30 pm

Thanks for the words of encouragement everyone.

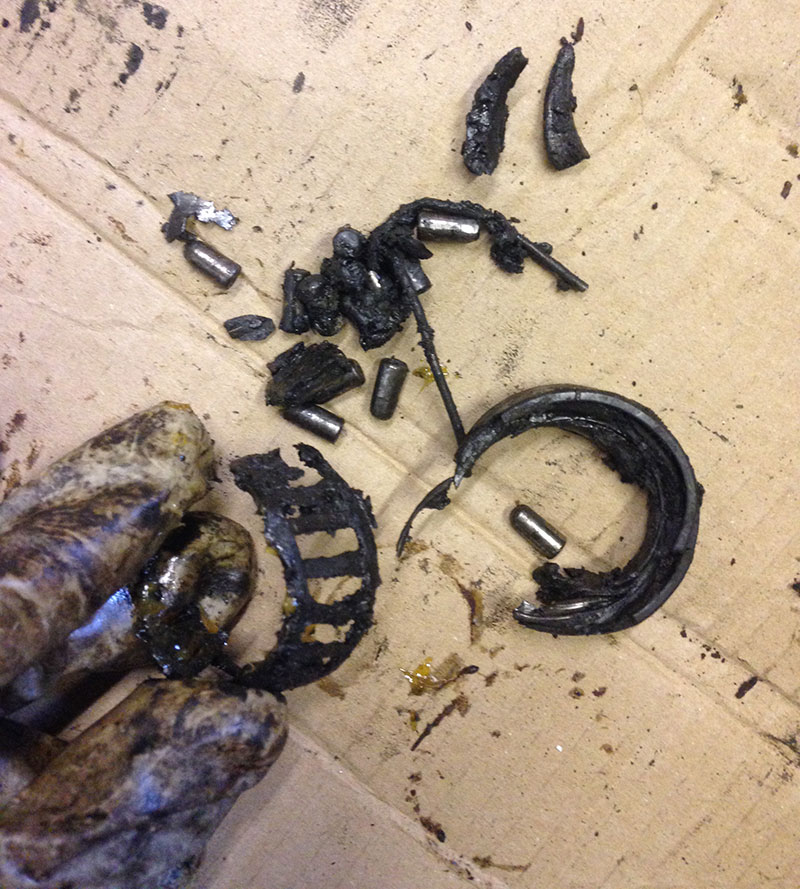

There wasn't much left of that original bearing. It had totally disintegrated on one side:

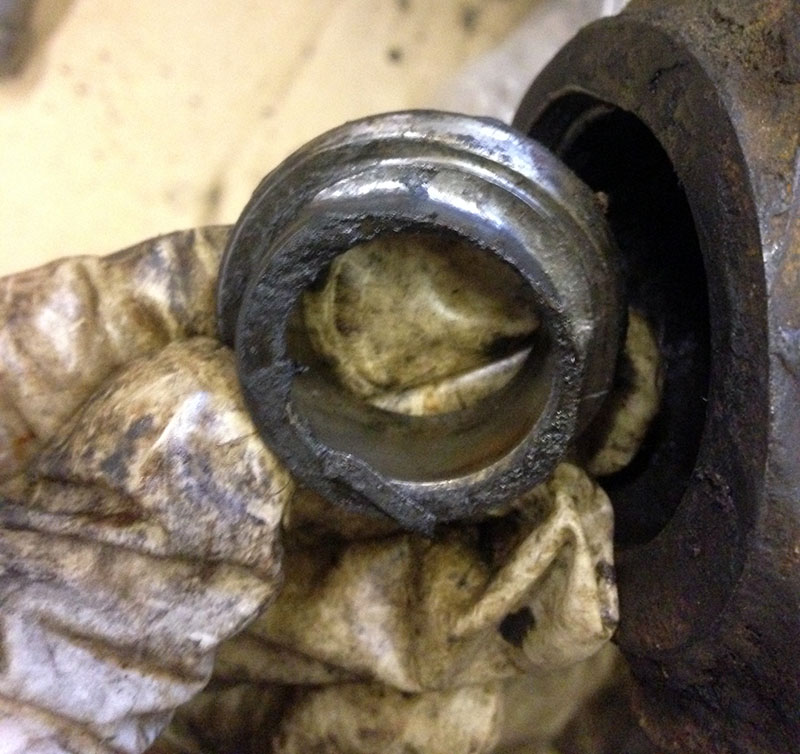

I've kept the spacers and put them to one side. However, the spacer on the 'bad' side has been worn away between the 12 - 3 o'clock position in this photo:


I suppose that needs to be replaced?

I started dismantling the second arm and it's in much better condition than the first one. The bearings were in (comparatively) good condition and there was still lashings of grease in the arm which no doubt helped to keep things in good shape.

@themildbunch - I think it must have been your recommendation I saw before about the Mobil XHP 220. Got it on the shelf here ready to go! :D

1992 BX19 TGD (aka Maurice), N/A diesel, silver with Zenith trim.

citronut
Over 2k
Posts: 2781
Joined: Wed Oct 31, 2007 7:55 am
Location: EAST SUSSEX UK

Re: Rear arm - too far gone?

Post by citronut » Tue Dec 09, 2014 8:38 pm

all those bits are inner race and seals, as long as the outer race are not worn through you will still be ok to use those arms

regards malcolm
curent ride
K reg BX 17TD TZD est
also own
K reg D special

no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)

Tinkley
1K Away
1K Away
Posts: 1495
Joined: Sat Jun 06, 2009 11:27 am
Location: N Hants England
x 6

Re: Rear arm - too far gone?

Post by Tinkley » Wed Dec 10, 2014 9:34 am

The rear arm repair 'kit' contains not just the bearings but spacers and seals too. Might be worth seeking one out as I believe they are still around. The Berlingo too, I think had the same arms at the rear.

citronut
Over 2k
Posts: 2781
Joined: Wed Oct 31, 2007 7:55 am
Location: EAST SUSSEX UK

Re: Rear arm - too far gone?

Post by citronut » Thu Dec 11, 2014 8:49 am

Tinkley wrote: The Berlingo too, I think had the same arms at the rear.
nop the Bling go has that orible torsion bar suspenders,
the Xant, C15 and CX do use the same arm kits as the BX though,

be careful of the non branded kits GSF are selling these days, they dont look very good to me,

its best to either look for SKF kits or buy the SKF bearings and seals ( only use Corteco seals ) from GSF, as they still sell those,

here is price and part No.'s of the spacer tube, seals and spacer bush from citroen

Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000513252 SUSPENSN SPACER 8.13 GBP 9.76 GBP 9.76 GBP

0000513320 BEARING BUSH 2.39 GBP 2.87 GBP 2.87 GBP

0000515414 SUSP ARM SEAL 3.33 GBP 4.00 GBP 4.00 GBP


regards malcolm
curent ride
K reg BX 17TD TZD est
also own
K reg D special

no longer have
H reg CX saffari 2.5 TRI (now gone to Malaysia)
R reg xantia 1.9TD est (gone to meet its maker)

Tinkley
1K Away
1K Away
Posts: 1495
Joined: Sat Jun 06, 2009 11:27 am
Location: N Hants England
x 6

Re: Rear arm - too far gone?

Post by Tinkley » Fri Dec 12, 2014 10:28 am

Yes I'd second the SKF kit(s) as that is what I used before, and it was all decent quality. Ironically the kits came from GSF who seem to sell both good and poor stuff these days so caveat emptor!. Any half decent bearing factor will have a choice of bearings in quality terms, and any of the better names can generally be trusted.

As in I got some Bendix pads from GSF - good, but previously could only get the Mintex ones from them. Likewise the now rubbish front strut returns which 10 years ago were better ie original quality. Last Octopus I bought from them a couple of years back was a genuine Citroen one and so on.
