Brake calipers

Post by TizzyD » Fri Feb 19, 2016 8:15 pm

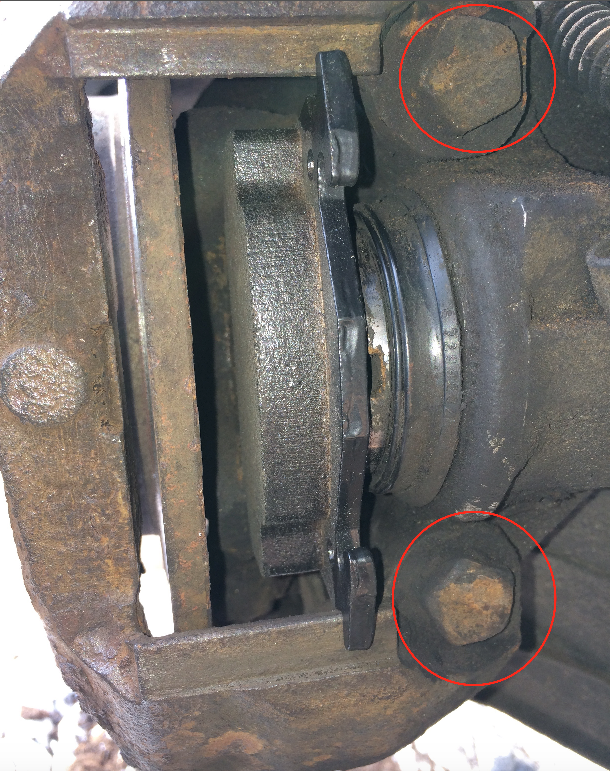

My car is currently off the road at the moment but something I wanted to do is give the pad carrier a spruce up with a wire wheel and a lick of paint (not red don't worry) I am right in thinking its only these two bolts holding it on without having to disconnect anything ?


Also the sliders could do with new dust covers and re-greasing as I'm sure one might be dragging so I'm looking at these on eBay but the Haynes I have doesn't elaborate on changing the sliders very well - is it a straight forward job ? I have noticed my car only has one brake vent on the O/S front brake I'm guessing it should have one on the N/S as well ?

http://www.ebay.co.uk/itm/CITROEN-BX-AL ... Swa-dWtMnB
Last edited by TizzyD on Sat Feb 20, 2016 5:47 am, edited 1 time in total.
'02 Clio Dynamique 1.2 16v - 92K - Sold
'09 Yamaha YBR 125 - 1100 miles
'93 Bx 17 TZD Turbo - 240K - The Aubergine


Defender110
Over 2k
Posts: 5898
Joined: Wed Dec 16, 2009 8:02 pm
Location: Harwood, Bolton
My Cars: Citroen BX MK1 Break.
Land Rover Discovery Series 1 200tdi 3 door
Land Rover Discovery Series 2 Facelift TD5
BMW X1
x 25

Re: Brake callipers

Post by Defender110 » Fri Feb 19, 2016 10:18 pm

Yes those 2 bolts will remove the carrier frame without disconnecting anything else.
Changing the sliders and rubbers is straight forward depending on the condition of the grooves that hold the rubber seals in. The old rubber seals may appear stuck in but they are not. They are held into location groves by the sliding pin so you have to remove the pin then remove the rubber seal out of the groove but it often is stuck solid and needs to be dug out and the groove cleaned out properly but sometimes the grove is damaged/corroded and it can be hard to locate the new seals in the groves properly. Once he seals are in the location groves inserting the slider pin in then holds the seal in the groove. Very straight forward on paper but can be very fiddly in practise.
Yes both calipers should have the cooling diverter but no real harm done if they are not there.
Kevan
1987 Citroen BX MK1 diesel estate.(Currently in dry storage)
1997 Mercedes C230 W202 - daily driver.
2010 BMW X1 SE 2.0D Auto - Her indoors daily driver.
2003 Land Rover Discovery Series 2 Facelift TD5 - Daily driver / hobby days and camping.
1993 Land Rover Discovery 200tdi Series 1 3 door - in need of TLC

User avatar
TizzyD
BXpert
BXpert
Posts: 522
Joined: Fri Jun 01, 2012 10:36 pm
Location: Bedfordshire
x 10

Re: Brake callipers

Post by TizzyD » Sat Feb 20, 2016 12:05 am

Thanks for the response, just one question, how do you actually remove the sliding pin though ?

And its nice to not have to worry about only having one cooling diverter :lol:
'02 Clio Dynamique 1.2 16v - 92K - Sold
'09 Yamaha YBR 125 - 1100 miles
'93 Bx 17 TZD Turbo - 240K - The Aubergine


Defender110
Over 2k
Posts: 5898
Joined: Wed Dec 16, 2009 8:02 pm
Location: Harwood, Bolton
My Cars: Citroen BX MK1 Break.
Land Rover Discovery Series 1 200tdi 3 door
Land Rover Discovery Series 2 Facelift TD5
BMW X1
x 25

Re: Brake callipers

Post by Defender110 » Sat Feb 20, 2016 12:32 am

Once you've taken the caliper off by undoing the two bolts that go through the sliders they just push out but if yours are seizing you may have to knock them out with a hammer and punch.
Kevan
1987 Citroen BX MK1 diesel estate.(Currently in dry storage)
1997 Mercedes C230 W202 - daily driver.
2010 BMW X1 SE 2.0D Auto - Her indoors daily driver.
2003 Land Rover Discovery Series 2 Facelift TD5 - Daily driver / hobby days and camping.
1993 Land Rover Discovery 200tdi Series 1 3 door - in need of TLC

Defender110
Over 2k
Posts: 5898
Joined: Wed Dec 16, 2009 8:02 pm
Location: Harwood, Bolton
My Cars: Citroen BX MK1 Break.
Land Rover Discovery Series 1 200tdi 3 door
Land Rover Discovery Series 2 Facelift TD5
BMW X1
x 25

Re: Brake callipers

Post by Defender110 » Sat Feb 20, 2016 12:40 am

p,s. use a dab of loktite on each bolt when reassembling.
Kevan
1987 Citroen BX MK1 diesel estate.(Currently in dry storage)
1997 Mercedes C230 W202 - daily driver.
2010 BMW X1 SE 2.0D Auto - Her indoors daily driver.
2003 Land Rover Discovery Series 2 Facelift TD5 - Daily driver / hobby days and camping.
1993 Land Rover Discovery 200tdi Series 1 3 door - in need of TLC

Tinkley
1K Away
1K Away
Posts: 1495
Joined: Sat Jun 06, 2009 11:27 am
Location: N Hants England
x 6

Re: Brake calipers

Post by Tinkley » Sat Feb 20, 2016 6:54 am

You might find the plastic diverter has in fact broken leaving a bit under the retaining bolts.... :wink:

The other bit that goes missing in this area is the heat shield around the steering ball joint.....

User avatar
TizzyD
BXpert
BXpert
Posts: 522
Joined: Fri Jun 01, 2012 10:36 pm
Location: Bedfordshire
x 10

Re: Brake calipers

Post by TizzyD » Sat Feb 20, 2016 10:42 pm

I haven't seen any missing heat shields but I'll have a look next time I've got the wheels off

May try and get a diverter so that I can re-fit it as it should be even if its not essential for when I get round to doing the job
'02 Clio Dynamique 1.2 16v - 92K - Sold
'09 Yamaha YBR 125 - 1100 miles
'93 Bx 17 TZD Turbo - 240K - The Aubergine


User avatar
TizzyD
BXpert
BXpert
Posts: 522
Joined: Fri Jun 01, 2012 10:36 pm
Location: Bedfordshire
x 10

Re: Brake callipers

Post by TizzyD » Sat Jul 23, 2016 3:22 pm

Defender110 wrote:p,s. use a dab of loktite on each bolt when reassembling.
Nicer weather for playing with the car is here so I need to get on with this job, what type of loktite should I use ?
'02 Clio Dynamique 1.2 16v - 92K - Sold
'09 Yamaha YBR 125 - 1100 miles
'93 Bx 17 TZD Turbo - 240K - The Aubergine


User avatar
mat_fenwick
Moderator
Posts: 7278
Joined: Tue Sep 20, 2005 4:08 pm
Location: North Wales
x 13

Re: Brake calipers

Post by mat_fenwick » Sat Jul 23, 2016 9:54 pm

Make sure you've got the right socket for the bolts (look closely and count the flats...)

1993 1.9 TZD Turbo Estate
1996 3.9 V8 Discovery
1993 VW LT35 campervan
1985 Hyundai Stellar V8
2016 Hyundai iLoad

User avatar
TizzyD
BXpert
BXpert
Posts: 522
Joined: Fri Jun 01, 2012 10:36 pm
Location: Bedfordshire
x 10

Re: Brake calipers

Post by TizzyD » Sun Jul 24, 2016 12:52 am

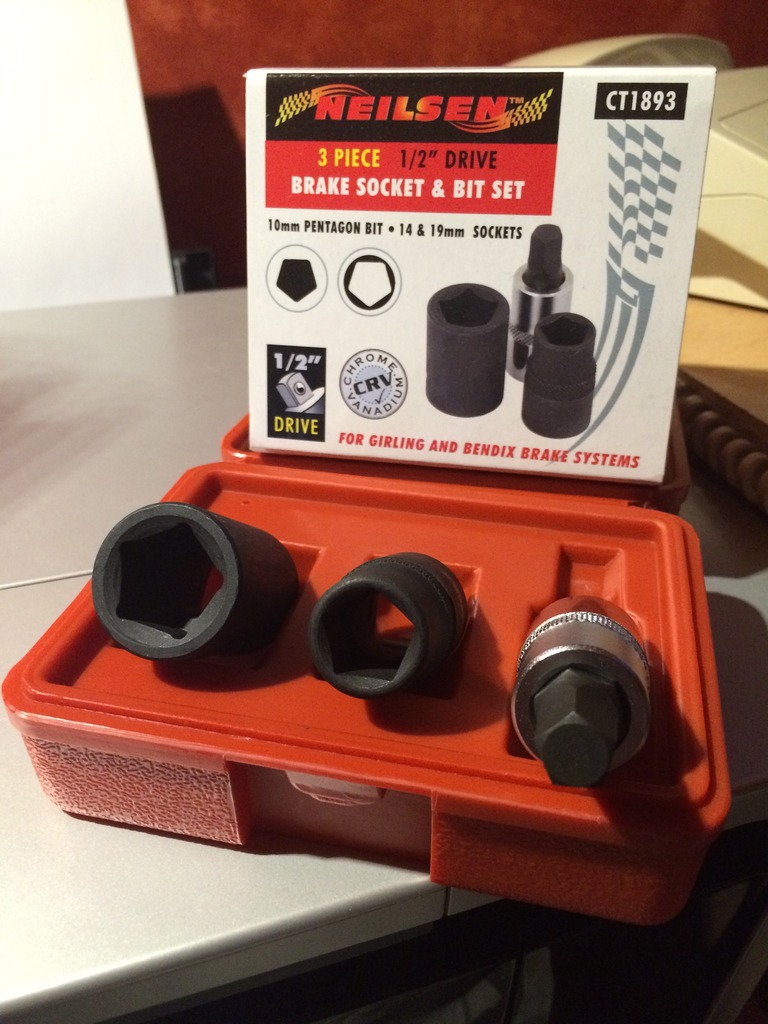

Picked up this off eBay for £8 with free P&P the other week in anticipation of this job and not wanting to round off the bolts :)
