Fuel Injectors - Seals and ECU testing

Post by BXTASY »

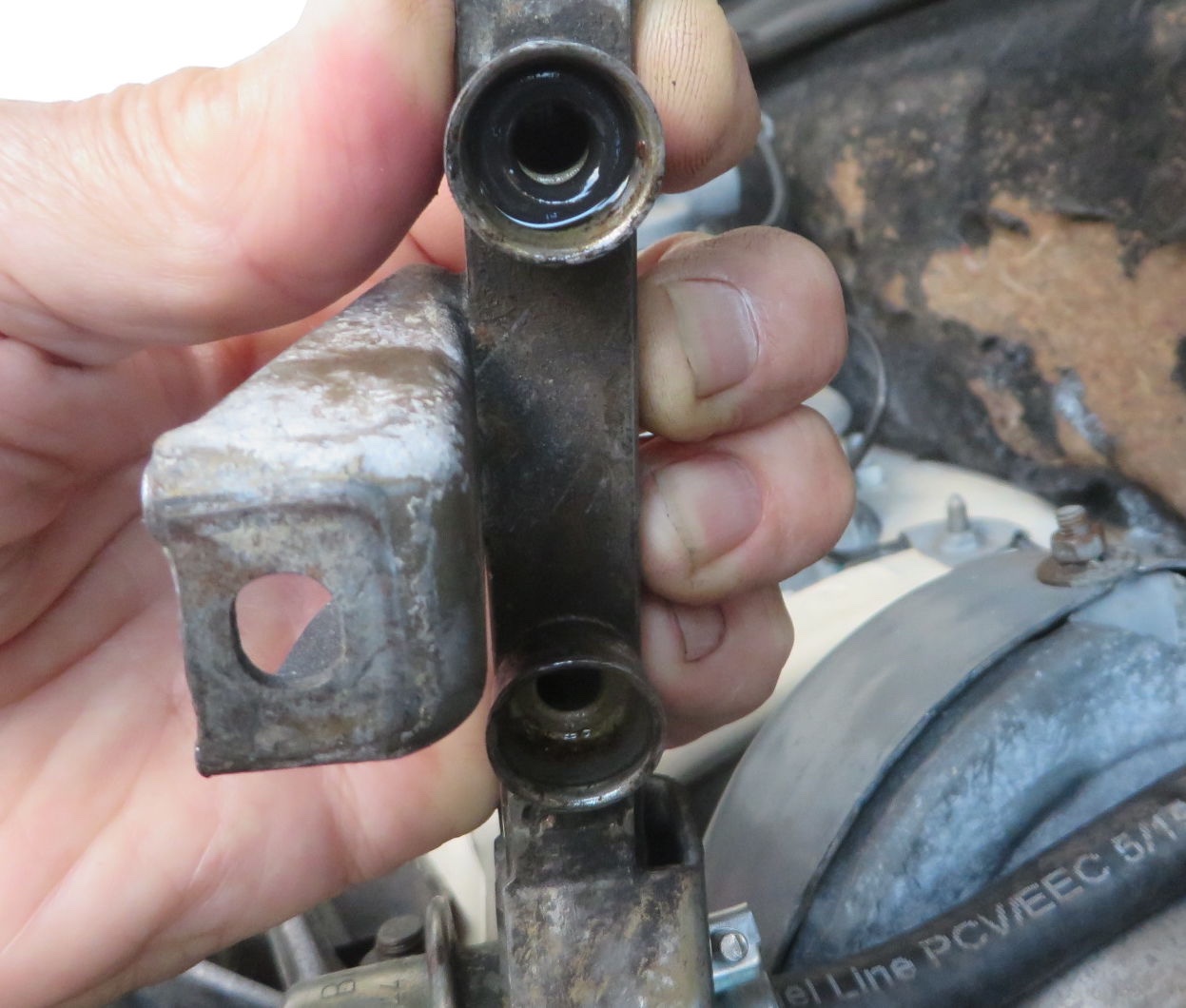

BX GTI still won’t start. Ignition - new plugs, dist. cap, rotor, checked coil for power and ground, had spark at plug. Injection - removed and tested each injector with an electric tester - all pulsed. Trying to test ECU pulse to injectors and spray pattern, but with the fuel rail removed and injectors in place, too much fuel leaking. Removed injectors from rail to inspect outlet for anything that might cause leaks. First photo shows two outlets in the rail - one had an internal seal, other didn’t, and the latter had the second-worst leak.

Rail outlets, one missing seal, own copyright, bxtasy
Rail outlets, one missing seal, own copyright, bxtasy

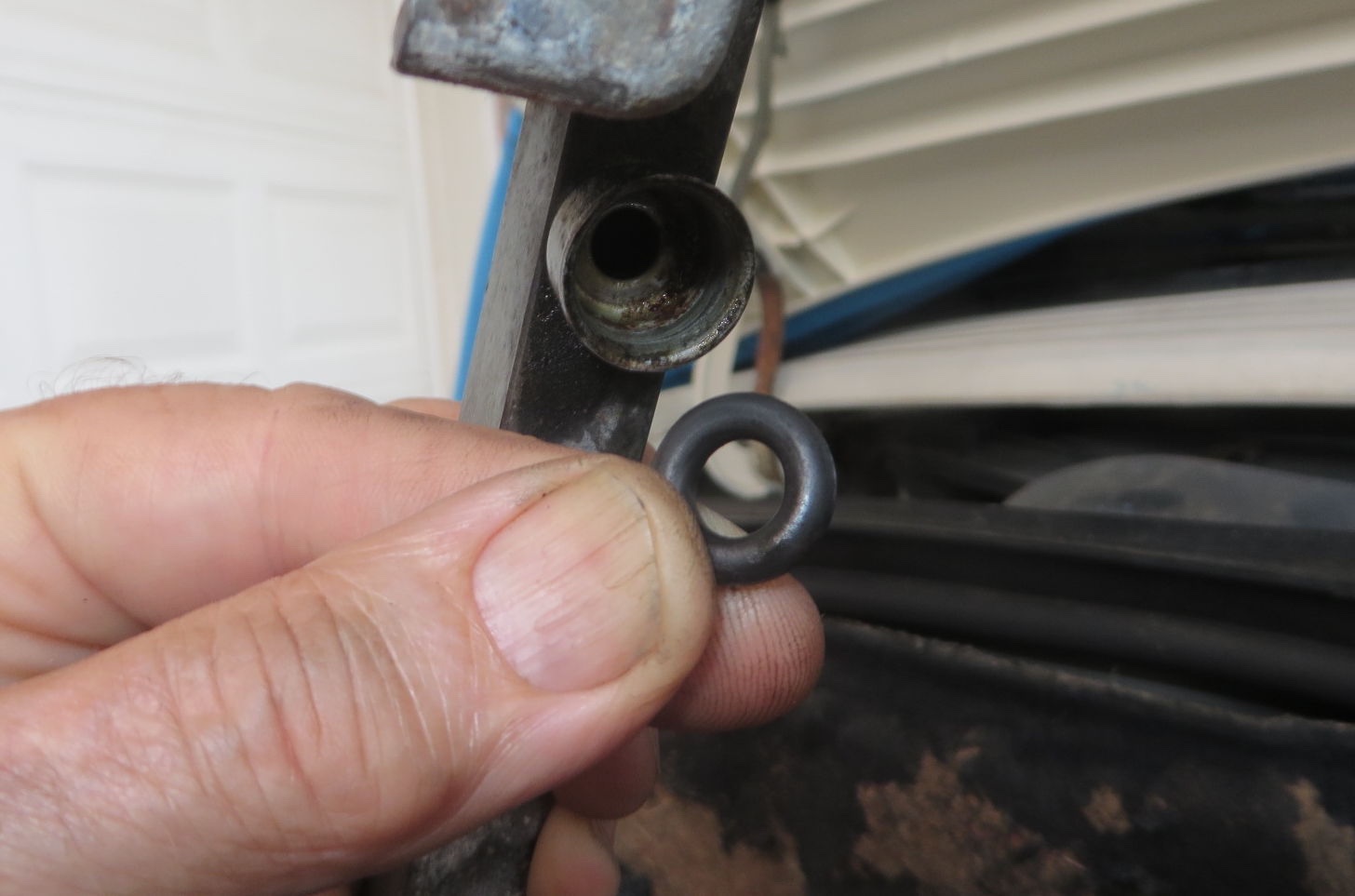

Here’s the seal, looks identical to injector seal.

Fuel Rail Seal, own copyright, bxtasy
Fuel Rail Seal, own copyright, bxtasy

The seals are the same size, but nothing in manuals describes the internal seals. Are they essential and the same size/composition as the injector seals?

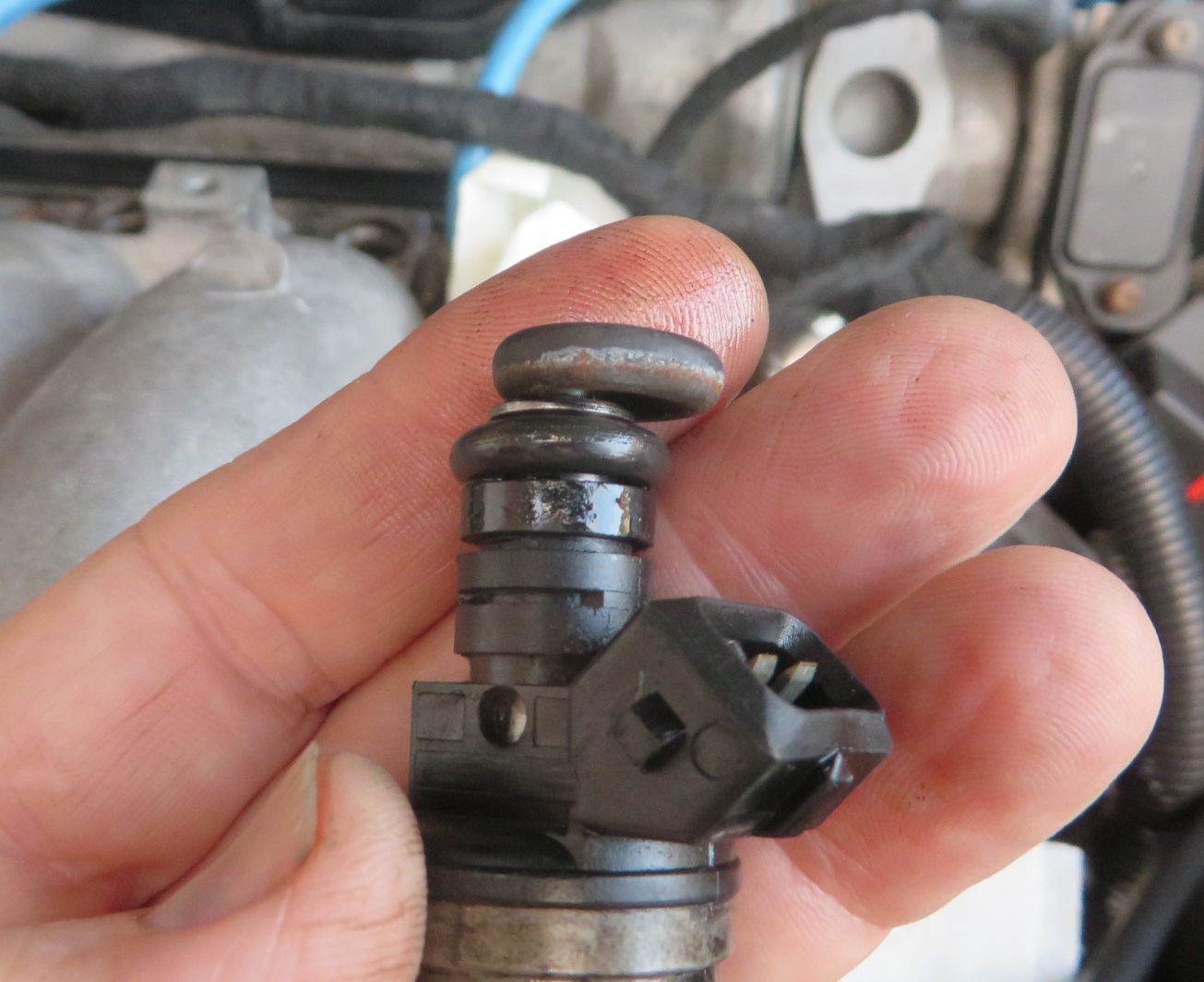

Injector and Rail Seals, own copyright, bxtasy
Injector and Rail Seals, own copyright, bxtasy
User avatar
Vanny
Merseyside resident
Posts: 3581
Joined: Tue May 17, 2005 11:48 pm
Location: BXProject
My Cars: BX 16v Ph2 - Jazz
BX 16v Ph2 - XPO
x 79
Contact:

Re: Fuel Injectors - Seals and ECU testing

Post by Vanny »

Is it not just an old seal that's been left in place? I only remember having the single seal on the injector.
BXTASY
Confirmed BX'er
Posts: 29
Joined: Mon Jul 13, 2015 2:27 am
My Cars: 1988 BX 1.9 GTI
x 2

Re: Fuel Injectors - Seals and ECU testing

Post by BXTASY »

Thanks, Nanny - that seems likely. My mechanic thinks the same thing - I had never checked this until recently.
User avatar
MULLEY
Over 2k
Posts: 8406
Joined: Thu Jun 22, 2006 11:10 pm
Location: Derbyshire
My Cars: 1999 Xsara LX 2.0HDI (90) Hatch - Fern
2002 C5 2.0 HDI (110) Estate - Jasmine - SORN
2011 Mini Cooper D Clubman - SOLD
2016 Mercedes A180D Sport - Auto refinement
1992 TZD Turbo - Bluebell - SORN
1992 TZD Turbo Estate - SORN
1991 Gti 16V - Blaze - crash damaged, will get repaired - SORN
1990 Gti 8Valve SOLD - looks like it's been scrapped
2002 Mini Cooper S - SOLD - i miss this car
1992 TXD - Scrapped in March 2014
1988 CX 25 GTI Turbo2 - SORN
1996 - AX Memphis 1.5D - Dream - SORN
x 8

Re: Fuel Injectors - Seals and ECU testing

Post by MULLEY »

I've just taken a fuel rail off, the only o-ring at the top is on the actual injector, hopefully an easy fix. The o-rings may have hardened, so perhaps buy a replacement kit for all of them?
2002 C5 2.0 HDI Estate - Jasmine - Now SORN
2011 Mini Cooper D Clubman - SOLD
2016 Mercedes A180D Sport - Auto refinement
1992 TZD Turbo - Bluebell - My daily
1991 Gti 16V - Blaze - crash damaged, will get repaired.
1990 Gti 8Valve SOLD - looks like it's been scrapped
2002 Mini Cooper S - SOLD - i miss this car
1992 TXD - Scrapped in March 2014
1988 CX 25 GTI Turbo2 - SORN
1996 - AX Memphis 1.5D - Dream - SORN

I'm not just a username, i'm also called Matthew.
