Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by RobC »

Am in need of the rectangular bung that sits in the offside wheel arch and which you remove to access the engine mount nut.

Somehow I have also lost the combined bolt/nut that you screw the tensioning bolt into on the alternator for a 16v model (it may be the same on other models too?). It's basically a small cylindrical thing with a thread on one end and a threaded hole on the other. Such things probably have a special name but I'm not party to that...

Cheers
Rob
1991 Citroen BX 16v

User avatar
Dave_16v
Confirmed BX'er
Posts: 68
Joined: Fri Aug 25, 2017 10:20 pm
Location: Yorkshire
My Cars: BX 16 Valve Ph 2 Current
BX 16 valve Ph 1 past
BX Gti past
BX Gti Auto past
ZX Volcane keeping others going
x 15

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by Dave_16v »

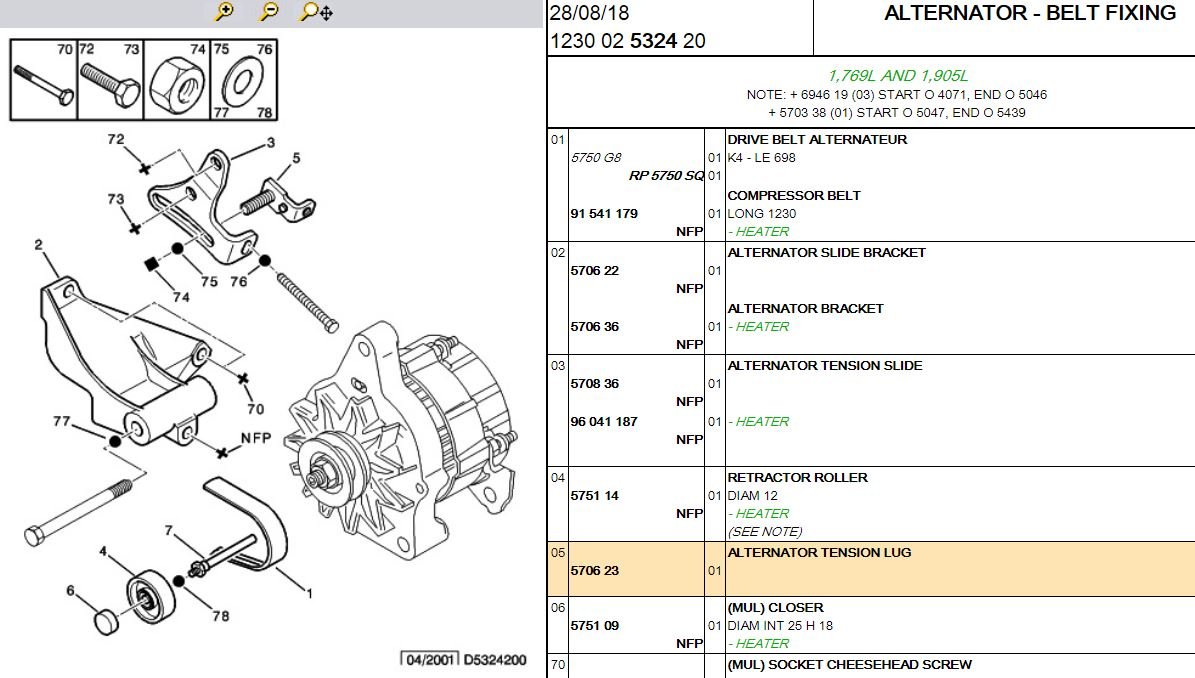

Is it #3 on this pic Rob, if so, it is called a capscrew on the parts list. Part number 96000783.

Someone may have one. Can't seem to find one online but a more thorough search may do it.

Prefer it to the Lamborghini, like Signor Gandini!

RobC
BXpert
BXpert
Posts: 459
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 12

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by RobC »

Hi Dave that’s exactly right, many thanks!
1991 Citroen BX 16v

User avatar
Dave_16v
Confirmed BX'er
Posts: 68
Joined: Fri Aug 25, 2017 10:20 pm
Location: Yorkshire
My Cars: BX 16 Valve Ph 2 Current
BX 16 valve Ph 1 past
BX Gti past
BX Gti Auto past
ZX Volcane keeping others going
x 15

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by Dave_16v »

Having looked, they come up as a slider bolt or tensioner adjustment arm bolt for various vehicles so perhaps another make may fit. I imagine somone with the right tools could fabricate one if you get stuck.
Prefer it to the Lamborghini, like Signor Gandini!

User avatar
white exec
Confirmed BX'er
Posts: 63
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
2003 Toyota RAV4 2.0 D4D
x 14

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by white exec »

Why is that pivot bolt so special - apart from having a plain shank section?
Chris

xantia_v6
BXpert
BXpert
Posts: 241
Joined: Wed Dec 16, 2015 6:13 pm
Location: here and there
My Cars: Peugeot 308 CC
Citroen XM V6 ES9
Citroen Xantia V6
Jaguar XJ-S V12
x 30

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by xantia_v6 »

white exec wrote:
Tue Oct 20, 2020 7:24 am
Why is that pivot bolt so special - apart from having a plain shank section?
My interpretation of the diagram above is that bolt 4 screws into the threaded hole in the side of the "head" of bolt 3.

RobC
BXpert
BXpert
Posts: 459
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 12

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by RobC »

That is correct
1991 Citroen BX 16v

User avatar
Dave_16v
Confirmed BX'er
Posts: 68
Joined: Fri Aug 25, 2017 10:20 pm
Location: Yorkshire
My Cars: BX 16 Valve Ph 2 Current
BX 16 valve Ph 1 past
BX Gti past
BX Gti Auto past
ZX Volcane keeping others going
x 15

Re: Wanted: alternator tensioning nut/bolt & wheel arch bung

Post by Dave_16v »

I was going to post a pic but you beat me Rob.

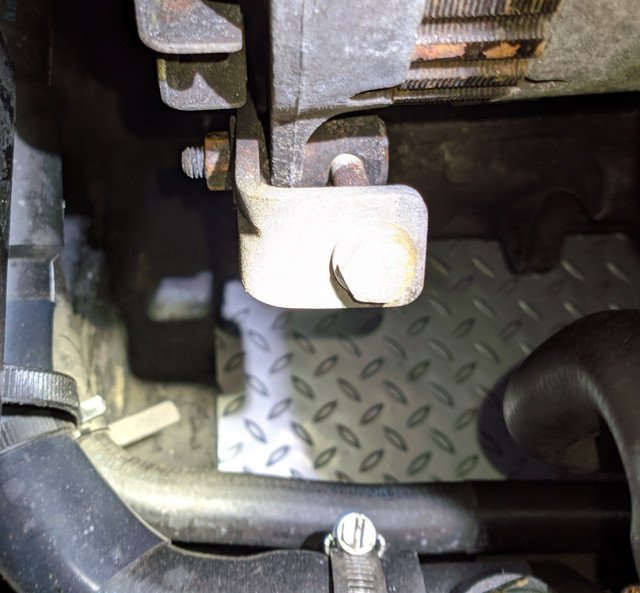

Anyway, here it is now I that I managed to get it. :D
