Hydraulic Diagram

artic-steel · Post by **artic-steel** » Sun Mar 18, 2007 5:18 pm

Does anyone know of a decent Hydraulic Diagram be it online or in a book, the haynes isn't that good.

I'm paticularly interested in return pipes

Ian_Fearn · Post by **Ian_Fearn** » Sun Mar 18, 2007 5:38 pm

i find the diagrams on the Citroen pr net quite useful.

AlanS · Post by **AlanS** » Sun Mar 18, 2007 10:54 pm

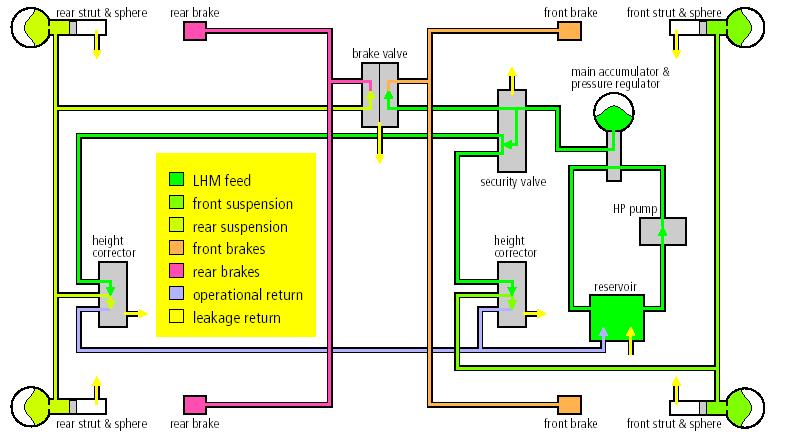

Scroll down the bottom of here and all will be revealed.

http://www.tramontana.co.hu/citroen/sus ... ension.php

Alan S

jeremy · Post by **jeremy** » Sun Mar 18, 2007 11:09 pm

Also worth following the links on that site to the technical guide.

May be some diagrams in the workshop manual - which can be downloaded from Bob Smith's site.

http://www.rwbsmith.plus.com/citroen2/

ellevie · Post by **ellevie** » Mon Mar 19, 2007 7:05 am

From the Japanese site:
http://www.mars.dti.ne.jp/~ynar/bxorg_a ... /m15e.html

Also from the Xantia site:
http://xantiaclub.net/techguide/#chapter2_2
