Anti Roll Bar bush

Post by Tinkley » Mon Apr 24, 2017 4:13 pm

Does anyone know any source for an anti roll bar bush? Part No is 95635526. It may be available from France as far as I can ascertain but I have yet to find a UK source. Euro, GSF etc including Chevronics do not have them. Rob said he's never done one!.

As the poxy r/h side one has worn enough to crush the hard return pipes that lead from front strut return pipes through to octopus and even allowed the drop linkl to mark the chassis it does need replacing!. If I drop the drop link and undo the retaining M8s' it should be accessible. I've changed a sub frame but not the bushes.

User avatar
Kitch
Over 2k
Posts: 6207
Joined: Sun Jul 03, 2005 9:36 pm
Location: Fareham, Hants
x 49

Re: Anti Roll Bar bush

Post by Kitch » Mon Apr 24, 2017 4:49 pm

It's a bearing though, isn't it?? I've never done one, but on the mk1 it's a bearing (unrelated to the wishbone bearing/non-bearing setup).

KevR
1K Away
1K Away
Posts: 1767
Joined: Mon Apr 12, 2010 8:46 pm
Location: Normandy
My Cars: It's all in my signature
x 4

Re: Anti Roll Bar bush

Post by KevR » Mon Apr 24, 2017 6:09 pm

Earlier ones were a kind of bearing, but when they changed to bushes in the wishbones, they also changed to bushes for the rollbar (and also recommended retro-fitting that to earlier ones).

Citroen Service are still showing them as available at 15.79 euros each (my CitServ account is set for France).
I need to order some other bits later in the week so I can order one (or two if needed) at the same time and see if they've actually got them if you like.

Just let me know before thursday morning. Best to email me: kevin.raymond'at'wanadoo.fr
1990 BX TZD Estate ('the grey one', 1991 BX TZD Estate ('the white one'), 1982 2CV6 Charleston (in bits), 1972 AZU Serie B (2CV van), 1974 HY72 Camper, 1990 Land Rover 110 diesel LWB, 1957 Mobylette AV76, 1992 Ducati 400SS, 1966 VW Beetle, 1990 Mazda MX-5, 1996 Peugeot 106D, 1974 JCB 2D MkII, 1997 BMW R1100RS, 1987 Suzuki GSX-R1100, 1978 Honda CX500A, 1965 Motobecane Cady, 1988 Honda Bros/Africa Twin, 1963 Massey Ferguson 825, and a lot of bicycles!

Tinkley
1K Away
1K Away
Posts: 1495
Joined: Sat Jun 06, 2009 11:27 am
Location: N Hants England
x 6

Re: Anti Roll Bar bush

Post by Tinkley » Tue Apr 25, 2017 6:38 am

Thanks to KevR and Kitch. It is described in French as a 'palier' which is bearing. However the only photo I could find of one was on some Russian BX owners forum!. It looks like a rubber bush not disimilar in style to the later type used on the ZX etc, of course these later and smaller i/d ones are widely available... BX one is 22.5 i/d and 42-44 long and I'm going to assume a one side split rubber item that can be installed pretty easily, just clamped by the ARB mount blocks. I've only ever had MK2 BX and the parts list where I found the part No was for late ie '90 onwards cars. I did try the local Cit dealer but n/a in UK. I've also contacted some Cit dealer in France to see if they'd post to the UK. BTW KevR you will find some slightly discounted ones around, hardly a hot seller in la France.

Fortunately I had a word with my local fount of BX knowledge as to the root of the pipe crushing and he immediately said it's the ARB bearing. I will also check wear on the roll bar too - it may be knackered as well. Good thing, as I might have replaced the twin pipes and crushed the replacements. To get through the MOT inside the 10 day period I will raid the donor, but would be better to put in a new bit of rubber. BTW Rob at Chevronics has never done one, there are few references on this forum to the bushes. It may be just old age on the rubber, car has done 93k hardly a high miler and even on the highest miler I've had 175k I've never had one go. Wishbone bushes are not exactly great but should pass, and I changed the drop links last year so they should come out OK.

Will e-mail you KevR.

KevR
1K Away
1K Away
Posts: 1767
Joined: Mon Apr 12, 2010 8:46 pm
Location: Normandy
My Cars: It's all in my signature
x 4

Re: Anti Roll Bar bush

Post by KevR » Tue Apr 25, 2017 8:49 am

Tinkley wrote:I'm going to assume a one side split rubber item that can be installed pretty easily, just clamped by the ARB mount blocks. I've only ever had MK2 BX and the parts list where I found the part No was for late ie '90 onwards cars.

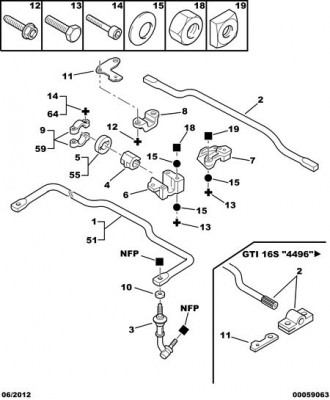

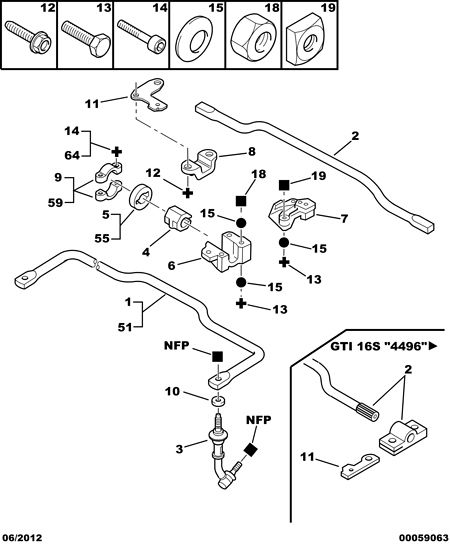

It's the same part for all BXs after May 1987 (up to ORGA number 03856). It is indeed a split bush so shouldn't be a problem to change in situ. It's part number 4 in this diagram from Citroen Service - worth signing up if you haven't already as it makes sourcing bits much easier. You can check the original part number, makse sure its is actually right for your particular car, then check prices and availability. Sometimes you'll find it's actually cheaper to order stuff from a dealer if still available than from Ebay or a factor. For example I need a set of rear arm bearing seals, part no. 515414. Straight from main dealer, 5.72 euros each. From Ebay £6.48 each...
