Front End Reassembly - Where Is This Plastic Shield Fitted?

Post by BXTASY »

I started removing front end parts from the BX four years ago for de-rusting and cleaning, including this plastic shield, and that’s the last time I saw it. Has two bolt holes - where does it belong? Not shown on any parts graphics.

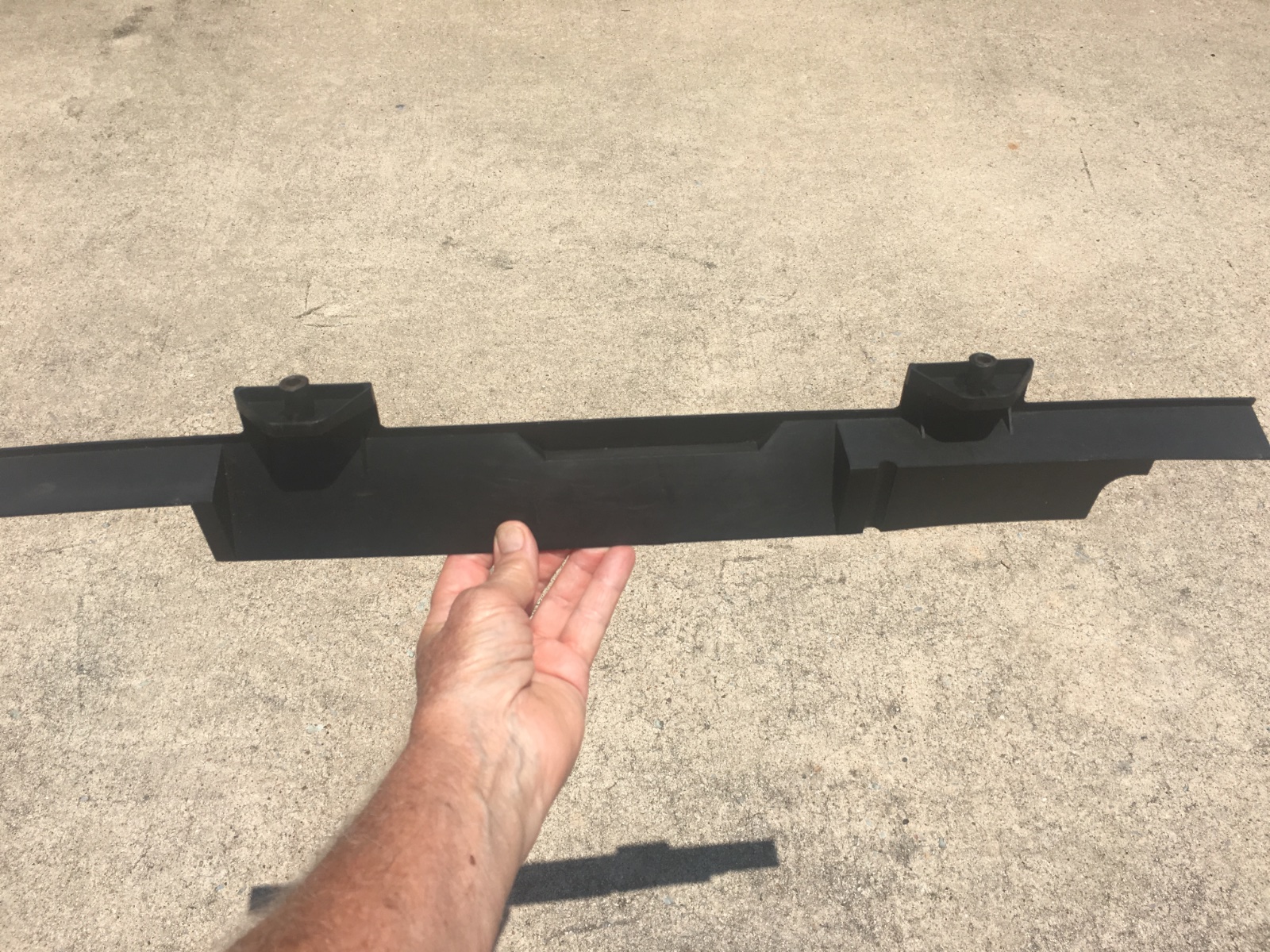

BX Front Plastic Shield.  Own copyright, bxtasy
BX Front Plastic Shield. Own copyright, bxtasy
rutter123
Over 2k
Posts: 2695
Joined: Sun Sep 02, 2012 9:54 pm
Location: South Lincs
My Cars: 90 Bx Tzd turbo ven red 295k
74 D Super 5 black
05 Volvo V50 2.0d 180k
65 Peugeot Boxer work van 280k
x 136

Re: Front End Reassembly - Where Is This Plastic Shield Fitted?

Post by rutter123 »

Not something I recognise could poss be from an air-con model
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
BXTASY
Confirmed BX'er
Posts: 29
Joined: Mon Jul 13, 2015 2:27 am
My Cars: 1988 BX 1.9 GTI
x 2

Re: Front End Reassembly - Where Is This Plastic Shield Fitted?

Post by BXTASY »

It does have air conditioning - the condenser rests on a similar (but wider) plastic shield. Found nothing on the front for the radiator, condenser, or fans that has bolt holes that line up with this shield.
xantia_v6
BXpert
Posts: 330
Joined: Wed Dec 16, 2015 6:13 pm
Location: here and there
My Cars: Peugeot 308 CC
Citroen XM V6 ES9
Citroen Xantia V6
Jaguar XJ-S V12
x 51

Re: Front End Reassembly - Where Is This Plastic Shield Fitted?

Post by xantia_v6 »

BXTASY
Confirmed BX'er
Posts: 29
Joined: Mon Jul 13, 2015 2:27 am
My Cars: 1988 BX 1.9 GTI
x 2

Re: Front End Reassembly - Where Is This Plastic Shield Fitted?

Post by BXTASY »

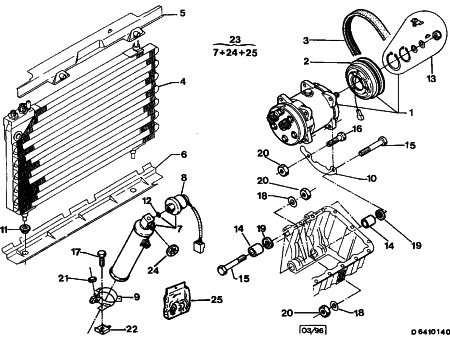

Thanks BXpert - I do have that parts graphic but missed it. The two bolt holes on the shield ("radt deflector - anti recycl") line up with the top mounting bolts for the fans. The "anti recycl" in the description seems to mean it prevents airflow from coming back over the top of the condenser, rather than continuing through the radiator.
