Saggy offside rear

Post by RobC »

My BX rides 5cm lower on the offside rear than the nearside. Front height is fine both sides. Tyres all good.

What’s causing this then..? Cylinders or spheres? Plenty of softness still in the spheres.
1991 Citroen BX 16v

User avatar
white exec
BXpert
Posts: 426
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
2003 Toyota RAV4 2.0 D4D
x 48

Re: Saggy offside rear

Post by white exec »

Is it still lop-sided when put at maximum height, and at fully down?
Chris

RobC
BXpert
Posts: 529
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 19

Re: Saggy offside rear

Post by RobC »

Good question. Certainly even when fully down and resting on the bump stops.
will try fully up and report back...
1991 Citroen BX 16v

RobC
BXpert
Posts: 529
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 19

Re: Saggy offside rear

Post by RobC »

Yes it’s still uneven at full height: only 2cm difference rather than the 5 cm at normal height though.
1991 Citroen BX 16v

User avatar
white exec
BXpert
Posts: 426
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
2003 Toyota RAV4 2.0 D4D
x 48

Re: Saggy offside rear

Post by white exec »

Unusual.
So,
fully down - sitting evenly
normal height - one side higher than the other, by 5cm
full height - same side higher, by 2cm

My thoughts...
- Not likely to be tyre/wheel/trailing arm*, as the car sits level when at Lowest
- * possibly a very badly seized/still trailing arm bearing, preventing one side from moving properly
- possibly a rear hydraulic ram has become dislodged from its prooer seating in the subframe; can happen when depressurising and changing spheres.
Last one:
Jack up the car
Let wheel hang clear of ground
Check that the ram is properly seated.

Another possibility is a problem with the rear anti-roll bar. This connects the two trailing arms, and also feeds height position via a mechanical link to the rear hright corrector. But note that height instructions are fed to both rear rams simultaneously, not separately.
Chris

RobC
BXpert
Posts: 529
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 19

Re: Saggy offside rear

Post by RobC »

Thanks for the ideas. Will investigate.
What about mismatched spheres?
1991 Citroen BX 16v

User avatar
Jaba
1K Away
Posts: 1687
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 35

Re: Saggy offside rear

Post by Jaba »

Another possibility, an unwelcome one, rust at the mounting point of the front of the rear subframe.
I know you say that the front end is level but something at the front end too, like a very stiff front strut for example would give same symptom.
Any strange noises on speed bumps/ potholes?
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.

User avatar
white exec
BXpert
Posts: 426
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
2003 Toyota RAV4 2.0 D4D
x 48

Re: Saggy offside rear

Post by white exec »

RobC wrote:
Sat Apr 24, 2021 7:24 pm
What about mismatched spheres?
Mis-matched spheres - or even correct ones with little/no/too much gas - will affect ride quality, but not running height. Additional (or less) fluid will enter the sphere to compensate.

Can you post a photo or two of car, in its worst state - on flat, level ground, one pic from front square-on, another ditto from the back?
Chris

User avatar
Kitch
Over 2k
Posts: 6337
Joined: Sun Jul 03, 2005 9:36 pm
Location: Fareham, Hants
My Cars: Too many to list
x 68

Re: Saggy offside rear

Post by Kitch »

That's really odd. It can only be a bent suspension component, or so much corrosion that the subframe is collapsing in, but that's far-fetched.

What datum point are you using? Nothing on the bodywork, right?
CCC BX monthly column writer bloke thingy - bx@citroencarclub.org.uk

The national BX register - click to submit a car!

1983(A) 16TRS (Rouge Valleunga) - 1987(E) GTi 16v (Noir) - 1990(H) 16Valve (Rouge Furio)

RobC
BXpert
Posts: 529
Joined: Tue Aug 15, 2006 11:15 am
Location: East London
My Cars: 1991 Citroen BX 16v
x 19

Re: Saggy offside rear

Post by RobC »

Turns out I was mistaken sorry: there is also sag in the lowest position: 5cm difference again.
There is an approx 1cm difference in tyre height (they’re both 60s, but the offside one is running slightly lower pressure it seems, plus it’s more worn) but that’s not enough to make the rest of the 4cm difference.

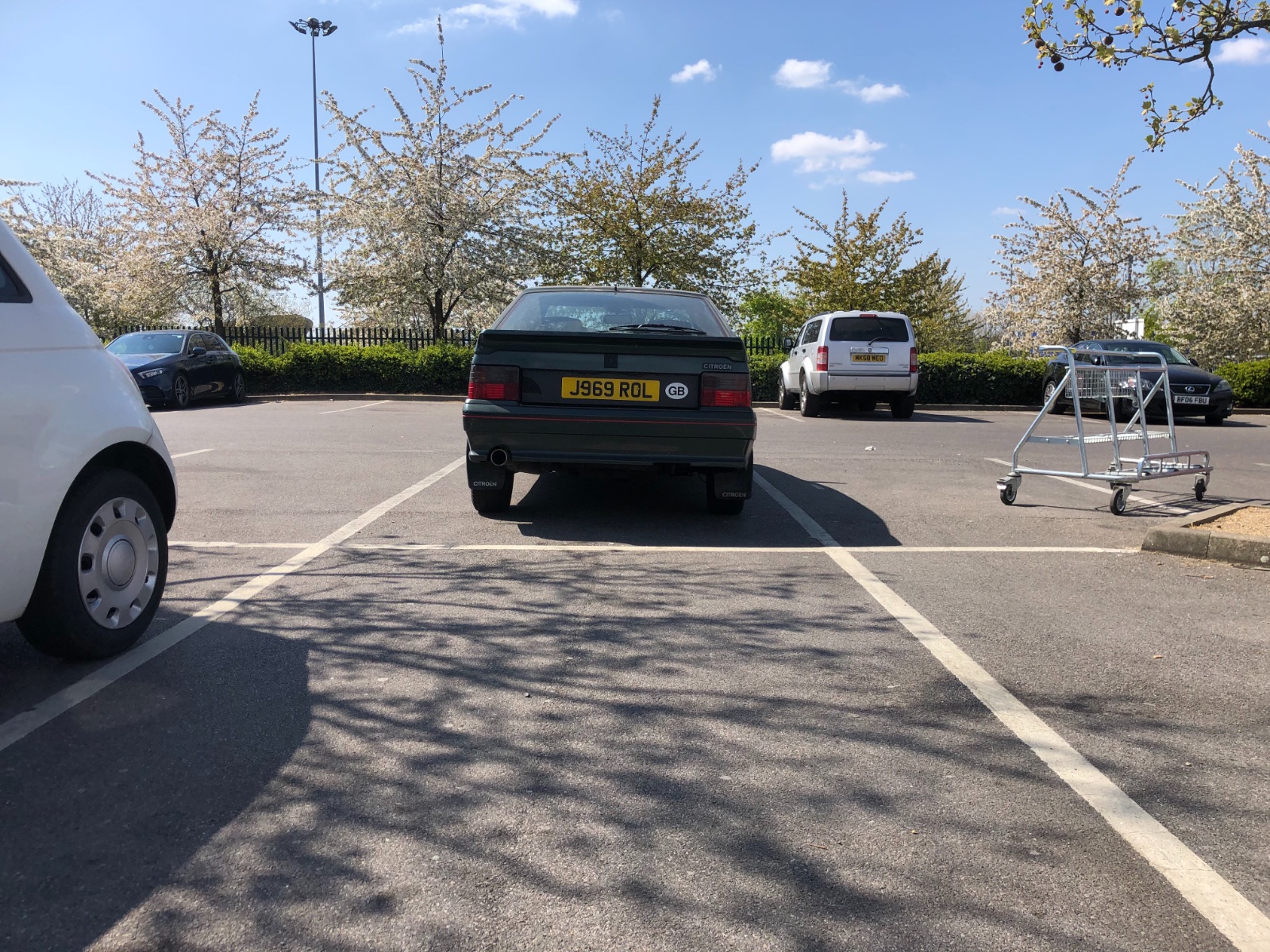

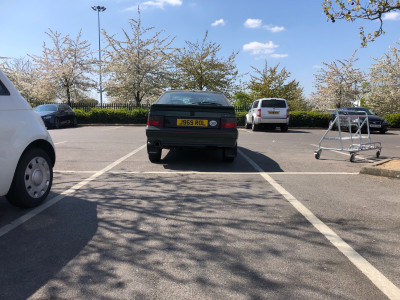

@Kitch it’s measured at the wheel arch, and while that’s bodywork it’s also obvious when you look from the rear, as per this pic:
