Diagnosing the door open warning display

Post by Jugostran »

Hello everyone!
So, I have been tinkering with the door open display, and I am currently stuck in a diagnostics mess. I have determined that the board itself is fine (along with all the bulbs), but unfortunately, it only ever displays the rear right door as open. It is quite puzzling since it's also meant to indicate when the lights are on. So yeah, I am quite stuck. I don't know how to diagnose the issue. If anyone has previously dealt with this, any input would be greatly appreciated :D
Proudly daily driving a 1989 BX 16 TRS since 2021

User avatar
white exec
BXpert
Posts: 681
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
x 73

Re: Diagnosing the door open warning display

Post by white exec »

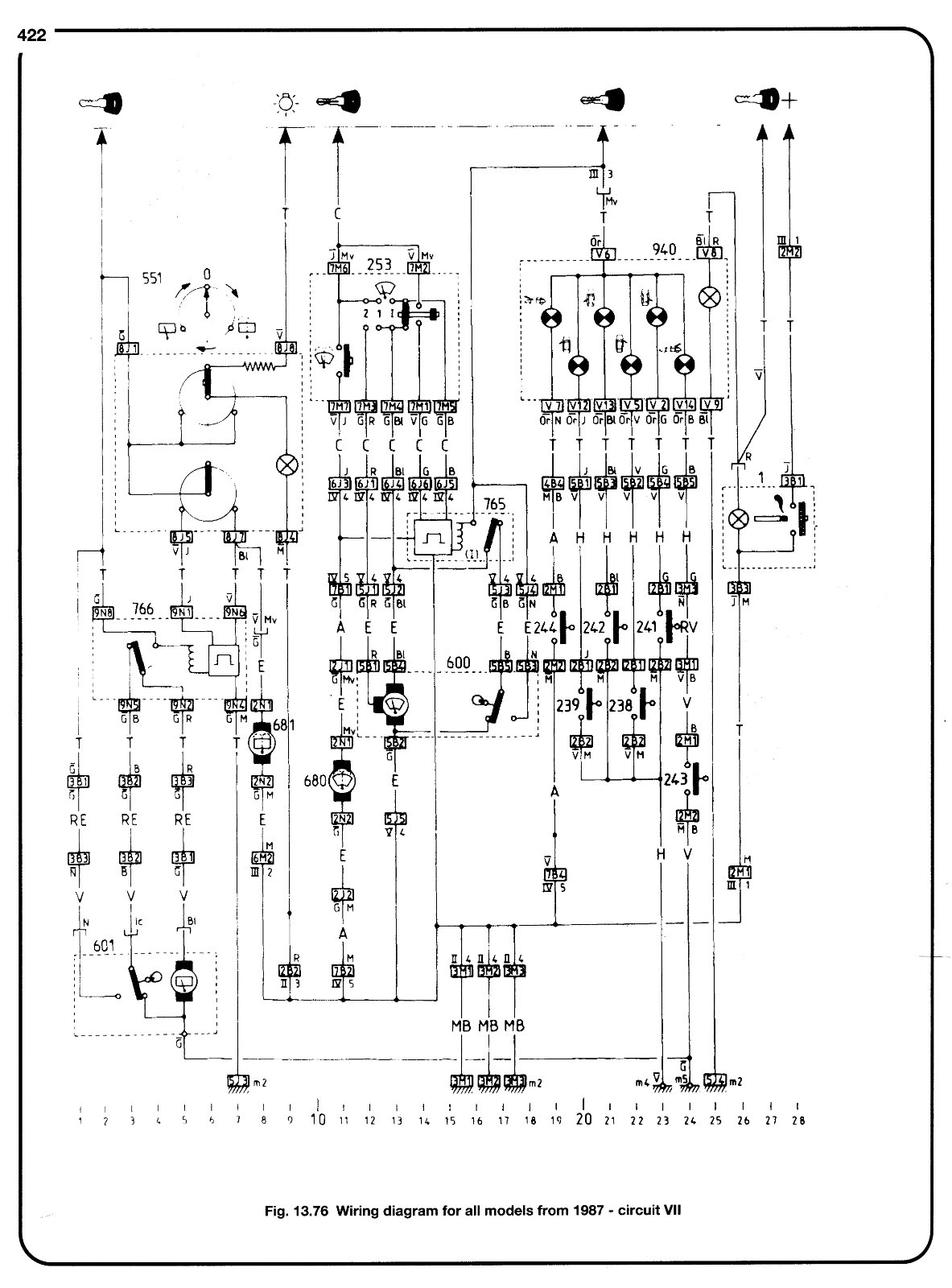

from Haynes (1995 edn) p.418

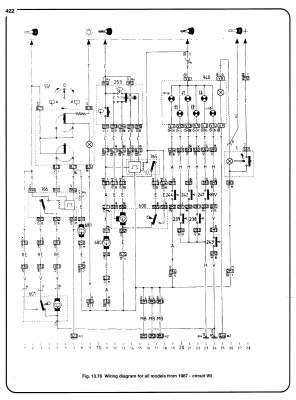

from Haynes (1995 edn) p.418
The doors open display (#940) looks to be directly driven from a common IGN+, with each lamp connected directly to Gnd by each door etc switch.
You should be able to bench-test it off the car. Pin numbers on the diagram.

I don't think it displays "Lights on", although the circuit shows it does have instrument panel illumination.
"Lights on" warning on BX is usually the audible buzzer (in the steering column shroud).

If the display checks out, and the door switches operate the interior lights properly, the intermediate connectors (between display and door etc switches) may be misbehaving.
EDIT: Ignore this last paragraph, it's not correct. See below...
Chris
User avatar
Jaba
1K Away
Posts: 1930
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 86

Re: Diagnosing the door open warning display

Post by Jaba »

I think you will find that these indicators are illuminated by a switch on each door handle. The door pillar switches are for the interior lights only.

It seems unlikely that 3 out of 4 door indicators would fail concurrently so the problem must be in the board, but I see you have checked that out, or if the bonnet indicator works the 5 way white connector and I don't know where that connector is exactly. If you can locate that in the harness somewhere then it would be a good testing point.

I bought a Xantia once to replace a BX and it did not have that door open indicator and I really missed it.
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
white exec
BXpert
Posts: 681
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
x 73

Re: Diagnosing the door open warning display

Post by white exec »

John is right. The switches in the diagram above are "door lock switches".
The interior lights are brought on by the separate door-pillar switches, #230, 231, 232, 233.

Have you powered up the indicator unit on the bench, and tested each channel?
Chris
User avatar
Jugostran
BXpert
Posts: 185
Joined: Fri Sep 10, 2021 6:22 pm
Location: Osijek, Croatia
My Cars: 1989 Cimos-Citroën BX 16 TRS
2007 BMW 318D (the "company car")
x 43

Re: Diagnosing the door open warning display

Post by Jugostran »

All of this is super useful info. Thank you!
Also, I should have pointed out that the board for the lights was replaced, and it still only illuminates that one door.
I will try to diagnose the connection between the door sensor and the end of the cable.
However, quick question, where is it's exact place of the sensor for the door? I theorize it may be oxidized/dirty.
Proudly daily driving a 1989 BX 16 TRS since 2021

User avatar
white exec
BXpert
Posts: 681
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
x 73

Re: Diagnosing the door open warning display

Post by white exec »

On the bench, do all the channels (4 doors, bonnet, and boot) on the indicator board work, when each one is grounded ?
Chris
User avatar
Jaba
1K Away
Posts: 1930
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 86

Re: Diagnosing the door open warning display

Post by Jaba »

Jugostran wrote: Thu Oct 28, 2021 4:04 pm All of this is super useful info. Thank you!
Also, I should have pointed out that the board for the lights was replaced, and it still only illuminates that one door.
I will try to diagnose the connection between the door sensor and the end of the cable.
However, quick question, where is it's exact place of the sensor for the door? I theorize it may be oxidized/dirty.
Its part of the door handle itself and requires inside door panel removal.
Does the bonnet open indicator work?? I ask this as it uses a different circuit and does not come through the white 5 way connector in the harness that I mentioned earlier as a good testing point (when located that is).
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
Jugostran
BXpert
Posts: 185
Joined: Fri Sep 10, 2021 6:22 pm
Location: Osijek, Croatia
My Cars: 1989 Cimos-Citroën BX 16 TRS
2007 BMW 318D (the "company car")
x 43

Re: Diagnosing the door open warning display

Post by Jugostran »

Jaba wrote: Fri Oct 29, 2021 11:23 am
Jugostran wrote: Thu Oct 28, 2021 4:04 pm All of this is super useful info. Thank you!
Also, I should have pointed out that the board for the lights was replaced, and it still only illuminates that one door.
I will try to diagnose the connection between the door sensor and the end of the cable.
However, quick question, where is it's exact place of the sensor for the door? I theorize it may be oxidized/dirty.
Its part of the door handle itself and requires inside door panel removal.
Does the bonnet open indicator work?? I ask this as it uses a different circuit and does not come through the white 5 way connector in the harness that I mentioned earlier as a good testing point (when located that is).
Neither bonnet open indicator nor the boot open indicator work. Only the rear right door works, as mentioned before.
Luckily I have sourced a multimeter which might make diagnostics a tad bit easier (even with my severely limited electrical knowledge :P).
Also, I still need to locate the white connector. Thankfully I have become quite well experienced in taking the interior apart (I sometimes do it out of boredom when waiting for someone xD) so finding it (assuming I find the rough area where it is located) should be easy.
Proudly daily driving a 1989 BX 16 TRS since 2021

User avatar
Jugostran
BXpert
Posts: 185
Joined: Fri Sep 10, 2021 6:22 pm
Location: Osijek, Croatia
My Cars: 1989 Cimos-Citroën BX 16 TRS
2007 BMW 318D (the "company car")
x 43

Re: Diagnosing the door open warning display

Post by Jugostran »

white exec wrote: Thu Oct 28, 2021 5:08 pm On the bench, do all the channels (4 doors, bonnet, and boot) on the indicator board work, when each one is grounded ?
I tested continuity. Both boards tested good.
Proudly daily driving a 1989 BX 16 TRS since 2021

User avatar
white exec
BXpert
Posts: 681
Joined: Sat Sep 12, 2020 4:04 pm
Location: Sayalonga, Malaga
My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive
x 73

Re: Diagnosing the door open warning display

Post by white exec »

Have you tested the display unit on the bench yet?
Supply it with 12v, and then Gnd each of the door etc channels in turn, to make sure each one illuminates.

Our posts crossed!
When you say you have continuity, are the individual lamps actually lighting when supplied and Gnd'd as above?
Chris
User avatar
Jugostran
BXpert
Posts: 185
Joined: Fri Sep 10, 2021 6:22 pm
Location: Osijek, Croatia
My Cars: 1989 Cimos-Citroën BX 16 TRS
2007 BMW 318D (the "company car")
x 43

Re: Diagnosing the door open warning display

Post by Jugostran »

white exec wrote: Fri Oct 29, 2021 7:09 pm Have you tested the display unit on the bench yet?
Supply it with 12v, and then Gnd each of the door etc channels in turn, to make sure each one illuminates.

Our posts crossed!
When you say you have continuity, are the individual lamps actually lighting when supplied and Gnd'd as above?
Yes. The board itself is tested all good (including the connector on the back). The issue probably lies somewhere between the door/bonnet/boot and the end of the cable that connects to the display.
EDIT:
Some new discoveries. The only pins with any voltage on the board are (when looking right to left when display is mounted upright in the car) the first two (the ones lighting up the rear right door), and pin number 9 (also looking right to left). And another minor correction - the lamp that lights the entire display with a green glow also works.
Proudly daily driving a 1989 BX 16 TRS since 2021

User avatar
David
BXpert
Posts: 529
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Diagnosing the door open warning display

Post by David »

The best thing that you can do is find the white connecter behind the glove box and start diagnostics from there.

The pins need to be earthed out to test them. I think the bonnet one goes in the grey connector, not the white one, but it should be easy to find as all the wires are all thin, and either dark green or orange. The said connecters are different to the rest on the car, so they're obvious when you find them. The bonnet switch is probably full of corrosion & faulty. The connections aren't the best in the white connector, so the wires could've snapped, especially if someone's been messing behind the glovebox.

Pull the glovebox out and see what you find.

Hope that helps.
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jugostran
BXpert
Posts: 185
Joined: Fri Sep 10, 2021 6:22 pm
Location: Osijek, Croatia
My Cars: 1989 Cimos-Citroën BX 16 TRS
2007 BMW 318D (the "company car")
x 43

Re: Diagnosing the door open warning display

Post by Jugostran »

David wrote: Fri Nov 19, 2021 10:51 pm The best thing that you can do is find the white connecter behind the glove box and start diagnostics from there.

The pins need to be earthed out to test them. I think the bonnet one goes in the grey connector, not the white one, but it should be easy to find as all the wires are all thin, and either dark green or orange. The said connecters are different to the rest on the car, so they're obvious when you find them. The bonnet switch is probably full of corrosion & faulty. The connections aren't the best in the white connector, so the wires could've snapped, especially if someone's been messing behind the glovebox.

Pull the glovebox out and see what you find.

Hope that helps.
Hey there,
Hugely sorry for the very late reply, but I have been really busy nearing the end of 2021. Anyway, this sounds like a good lead as to fixing my issue. One small question, is this connector also located behind the glove compartment on left hand drive cars? I'll be tearing apart the instrument cluster to replace the bulbs soon, so if the LHD ones have it on the left, I could possibly also diagnose the door open display.
Either way, I am very thankful for your advice!
