Turbo diesel gearbox

Post by rutter123 »

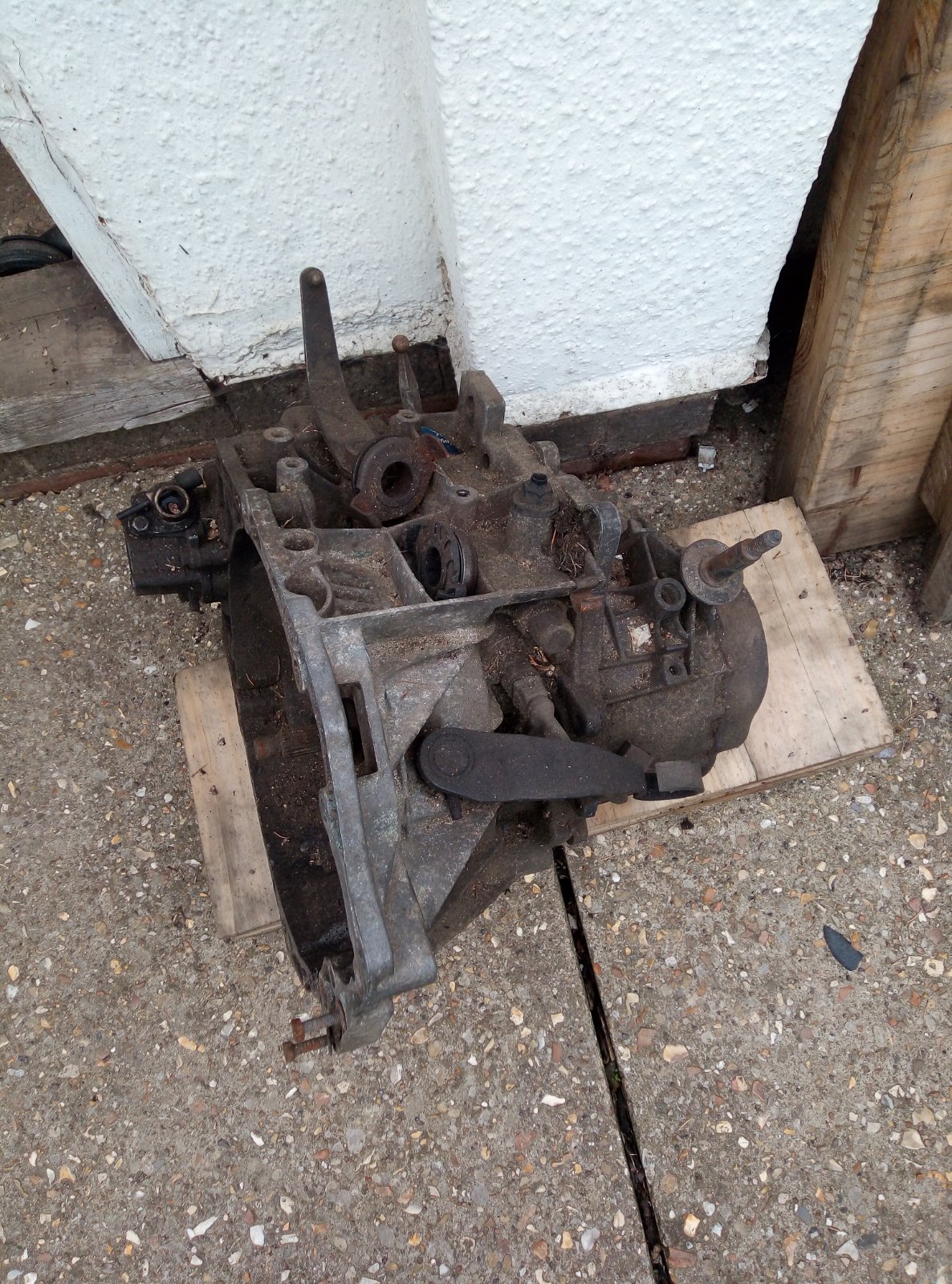

5sp BE3 from a 91 car circa 85k miles good sound box no whines, needs a good clean, speedo drive pinion and clutch arm ok, ideal for gti 5th gear conversion or TD type clutch cable conversion (as opposed to the awful push rod type 1.9d)

Offers

Collect pe12

Also very good cond TD bonnet liner/insulation panel, offers
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
User avatar
Tim Leech
Over 2k
Posts: 15583
Joined: Tue Apr 15, 2008 11:12 am
Location: Derbyshire
My Cars: Various
x 155

Re: Turbo diesel gearbox

Post by Tim Leech »

I would of had that if it had been a BE1...never mind.
Lots of Motors, mostly semi broken....
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Is this gearbox still available? I've been after something to raise the gear ratios on my BX for a while. Also, do you have any idea of a price? PM me if needed. Thanks!
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jaba
1K Away
Posts: 1901
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 83

Re: Turbo diesel gearbox

Post by Jaba »

As Rutter has not replied I can help you out with the 5th gears. What gearbox do you have at the moment as the TD 5th gearset does not suit the final drive on some models.
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Thanks for getting back to me Jaba.

The current gearbox is the Gti 4x4 gearbox in my car. Inside, it's identical to the 1.7 n/a diesel gearbox that I pulled apart. I assume that the TD gearing is higher than the standard diesel?

Is it the whole gearbox that you have or just 5th gear?
Also, where are you located?

Thanks.
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jaba
1K Away
Posts: 1901
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 83

Re: Turbo diesel gearbox

Post by Jaba »

I have both 5th gearset only or complete box. I am away in Italy at the moment until April when I would be able to sort out the bits you want.
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Thanks for getting back to me Jaba. Ideally, I'd like the whole gearbox, as something is noisy in mine (I think it's the gearbox anyway), and I'd like to put all the TD gears in my gearbox so that there wouldn't be a huge jump between 4th and 5th.

I'm not in a particular rush to get it, as I've got a lot of odd jobs to work through in the meantime, so it's just a case of when you're back and when I can collect it.

Thanks!
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jaba
1K Away
Posts: 1901
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 83

Re: Turbo diesel gearbox

Post by Jaba »

Ok David. I have a choice of two. I am near Oxford btw. You may need a final drive swap as well. I have all the gear ratio tables at home and could look up your best options next month.
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Thanks for getting back to me Jaba.

Just let me know when you're back home and we'll go from there. Oxford is a long way to travel, so it'll take some prior planning.

Provided that the final sun gears in all the manual gearboxes are the same size, then the final drive should swap over easily. I know that they're different in the auto boxes, but all the manual boxes that I've had apart so far have been the same.

If you could post those gear ratio tables too, that'd greatly help!
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jaba
1K Away
Posts: 1901
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 83

Re: Turbo diesel gearbox

Post by Jaba »

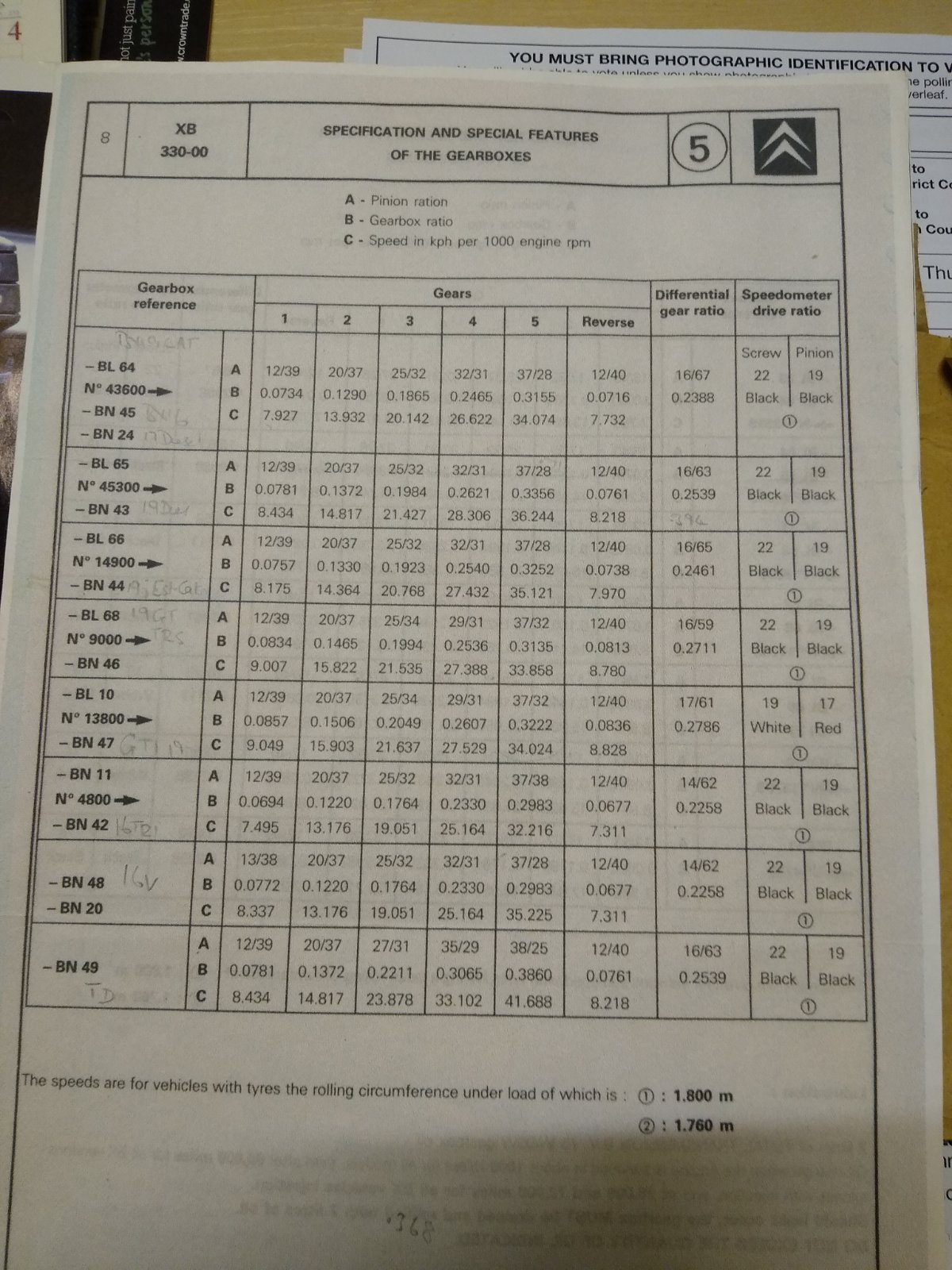

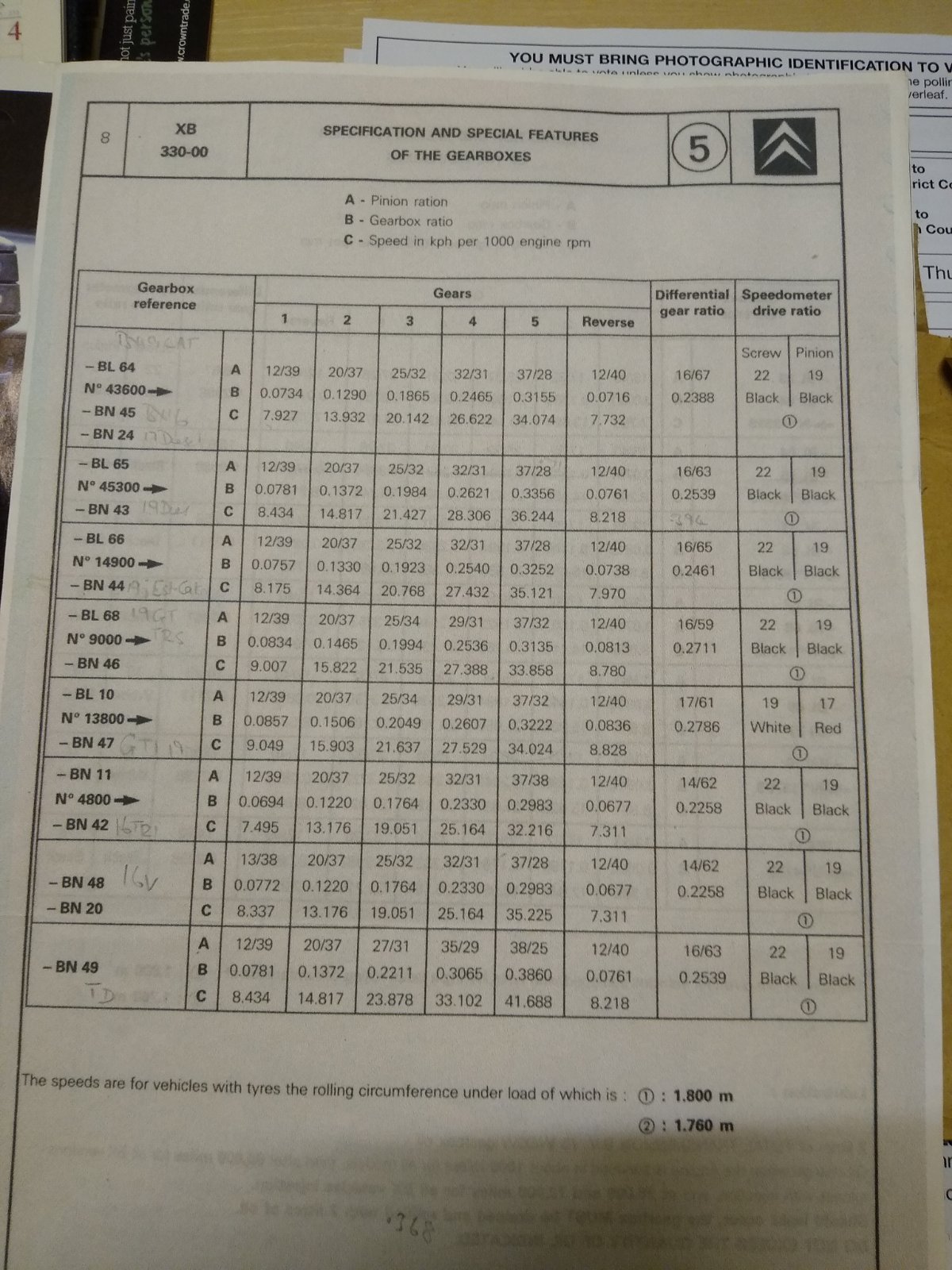

Here is the gearbox ratio table. However the tables do not show 4x4 box ratios but if it has the standard 8v GTi ratios then the TD 5th gear would be impossibly high so you would have to swap the final drive as well from the TD box.
I have a spreadsheet calculator I used in 2004 which takes the work out of the maths. I could send if that would help.

The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

That table is a great help Jaba!

From what I can gather from it, I think that mine has the gear ratios for the 16TRI or 16V. The final drive is a 14/62, & the other speeds sound about right. That'd explain why it seems so low geared.

Are you back in the country yet?

Thanks!
Last edited by David on Sat Jun 03, 2023 9:24 pm, edited 2 times in total.
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
Jaba
1K Away
Posts: 1901
Joined: Tue Jul 05, 2005 7:54 am
Location: Usually in the garage
My Cars: BX GTi, C3 Auto
x 83

Re: Turbo diesel gearbox

Post by Jaba »

David wrote: Sun Apr 23, 2023 10:12 am
Are you back in the country yet?
Thanks!
Glad it helped. And yes I am back now.
The Joy of BX with just one Citroën BX to my name now. Will I sing Bye Bye to my GTI or will it be Till death us do part.
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Pm sent!
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Jaba wrote: Sat Apr 08, 2023 8:20 am Here is the gearbox ratio table. However the tables do not show 4x4 box ratios but if it has the standard 8v GTi ratios then the TD 5th gear would be impossibly high so you would have to swap the final drive as well from the TD box.
I have a spreadsheet calculator I used in 2004 which takes the work out of the maths. I could send if that would help.


Just to let you know Jaba, there's an error on that gear table. It could be that the gearboxes were modified after it was made, but the gear ratio for 1st gear in the TD box is 11/38; not 12/39. The rest are correct. (For the TD box anyway).

I'll post the gear ratios for the 4x4 box when I pull all of the gears out so that you can add it to the table. It might come in useful in future.

Currently, I'm inclined to think that it's essentially a 16v box, but with a lower ratio 1st; as I remember it being exactly the same as the 1.7 diesel, but I'll confirm my suspicions when I've dismantled it again.
1992 Citroën BX 1.9 Diesel Meteor 4x4 - The Project.

1992 Citroën BX 1.9 TXD (with GTI engine; Mulleys old car) - Parts car.

2004 Citroën Xsara Desire. (Now gone).

2016 Ford Focus Zetec - Daily Driver. (Absolute bone shaker).
User avatar
David
BXpert
Posts: 524
Joined: Sun Oct 27, 2013 10:54 pm
Location: Manchester
x 47

Re: Turbo diesel gearbox

Post by David »

Jaba wrote: Sat Apr 08, 2023 8:20 am Here is the gearbox ratio table. However the tables do not show 4x4 box ratios but if it has the standard 8v GTi ratios then the TD 5th gear would be impossibly high so you would have to swap the final drive as well from the TD box.
I have a spreadsheet calculator I used in 2004 which takes the work out of the maths. I could send if that would help.


Alright, I have some answers on these gearboxes! I had a Peugeot 405 mi16x4 gearbox which I've just disassembled; That had the gear ratios for the 6th or 7th one down in your table (that you wrote 16tri & 16V next to), only 1st gear is an 11/38, the same as the TD box I've just dissassembled, and 5th is an 35/28. Everything else is the same.
