Electrical Help

Post by Matt H »

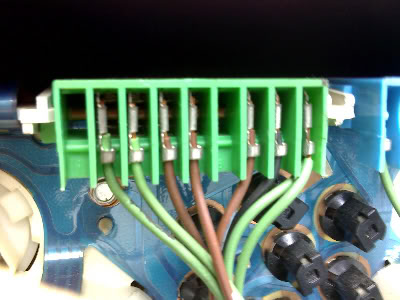

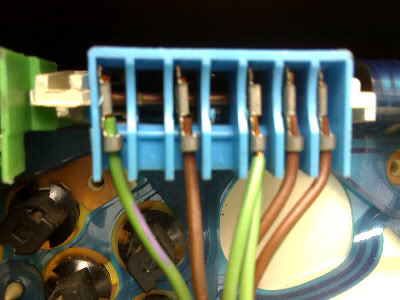

Finally decided to take a look at making the rev counter work in my car. I found the trigger wire... But the problem is at the back of the instrument cluster.

The thing I'm having trouble with is working out what all the wires are, and where I need to run the new wire too...


Any help would be appreciated. I've already had a look at the Haynes Manual, and drawn a blank.

Regards,
Matt
User avatar
docchevron
The Immoderate half of the admin team
Posts: 7524
Joined: Sun Jun 04, 2006 7:03 pm
Location: A Bucket of Fish
x 7
Contact:

Post by docchevron »

Thats cos Haynes is shite!

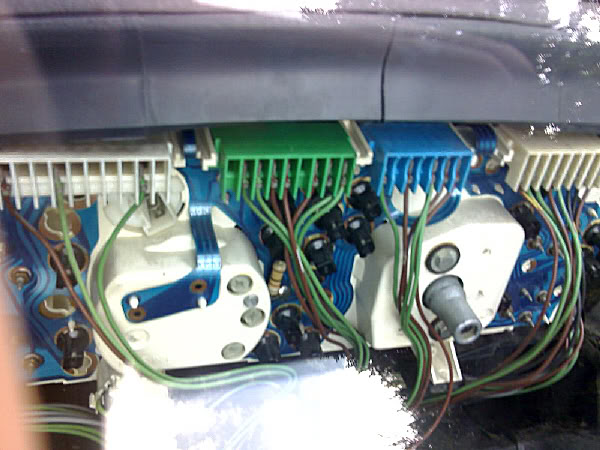

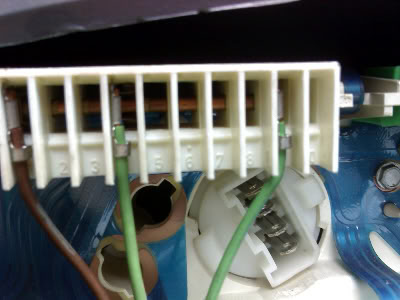

Ok, in your second picture, ignore the flat 10 pin white multiplug, but look beneath it, at the 4 pin socket in white, encased in that round plastic thingy which rotates to unlock from the binnicle.

Thats the rev counter socket.

For the life of me I cant remember the pin outs off the top of my head, but I've got it written down somewhere!
Smokes lots, because enough's enough already!

Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
User avatar
Matt H
1K Away
Posts: 1000
Joined: Mon Dec 17, 2007 12:02 am
Location: Burton Latimer

Post by Matt H »

Ahhh... Thanks.

I thought there would only be 3 wires (Power, Earth and one from the trigger wire), but then again what do I know about electrics? What does the fourth one do?

If you could let us know what goes where, that would be ace.

Regards,
Matt
User avatar
docchevron
The Immoderate half of the admin team
Posts: 7524
Joined: Sun Jun 04, 2006 7:03 pm
Location: A Bucket of Fish
x 7
Contact:

Post by docchevron »

I'm not altogether sure the fourth is used TBH.

I'll have a ganders at the valver tomorrow and give you the pin outs.
Smokes lots, because enough's enough already!

Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
User avatar
Matt H
1K Away
Posts: 1000
Joined: Mon Dec 17, 2007 12:02 am
Location: Burton Latimer

Post by Matt H »

Thanks,

You are an absolute legend... not that I need to tell you :lol:

Regards,
Matt
User avatar
docchevron
The Immoderate half of the admin team
Posts: 7524
Joined: Sun Jun 04, 2006 7:03 pm
Location: A Bucket of Fish
x 7
Contact:

Post by docchevron »

Ok, I'll have to pull the instrument binnacle on the valver and get a pin out from that.
Rather foolishly I cut the loom off the scrapper valver. FOH.
I'll get on to it in the week mate.
Smokes lots, because enough's enough already!

Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
User avatar
Matt H
1K Away
Posts: 1000
Joined: Mon Dec 17, 2007 12:02 am
Location: Burton Latimer

Post by Matt H »

docchevron1472 wrote:Rather foolishly I cut the loom off the scrapper valver.
Oh well these things happen...

I'm not in any rush really, just whenever you can.
User avatar
docchevron
The Immoderate half of the admin team
Posts: 7524
Joined: Sun Jun 04, 2006 7:03 pm
Location: A Bucket of Fish
x 7
Contact:

Post by docchevron »

It's all pretty simple.

Whilst all four wires are used on the rev counter itself, the two yellow leads are twinned, they are the trigger wire (s), then theres a live and an earth.

IF you're looking at the plug socket on the binnicle with the cut outs at the top it goes thus from left to right:

1: Live
2: Neutral
3: Trigger
4: Trigger.

Hope that helps.
Smokes lots, because enough's enough already!

Far too many BX's, a bus, an ambulance a few trucks, not enough time and never enough cash...
User avatar
Matt H
1K Away
Posts: 1000
Joined: Mon Dec 17, 2007 12:02 am
Location: Burton Latimer

Post by Matt H »

Ahh, good stuff... Will give it a go tomorrow.

Thanks a lot Doc!

Matt
User avatar
Matt H
1K Away
Posts: 1000
Joined: Mon Dec 17, 2007 12:02 am
Location: Burton Latimer

Post by Matt H »

YES!

Wired everything in, fired the car up, and finally...

Result, I have a working rev counter. :D
