Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Radiator bottom (and other) hoses
A search on your VIN brings up...
BX 1.6L (XU52C) carburettor
RPO 5139 (= 4 Dec 1990)
BVM5 4x2
Single A/C
"Image" special spec

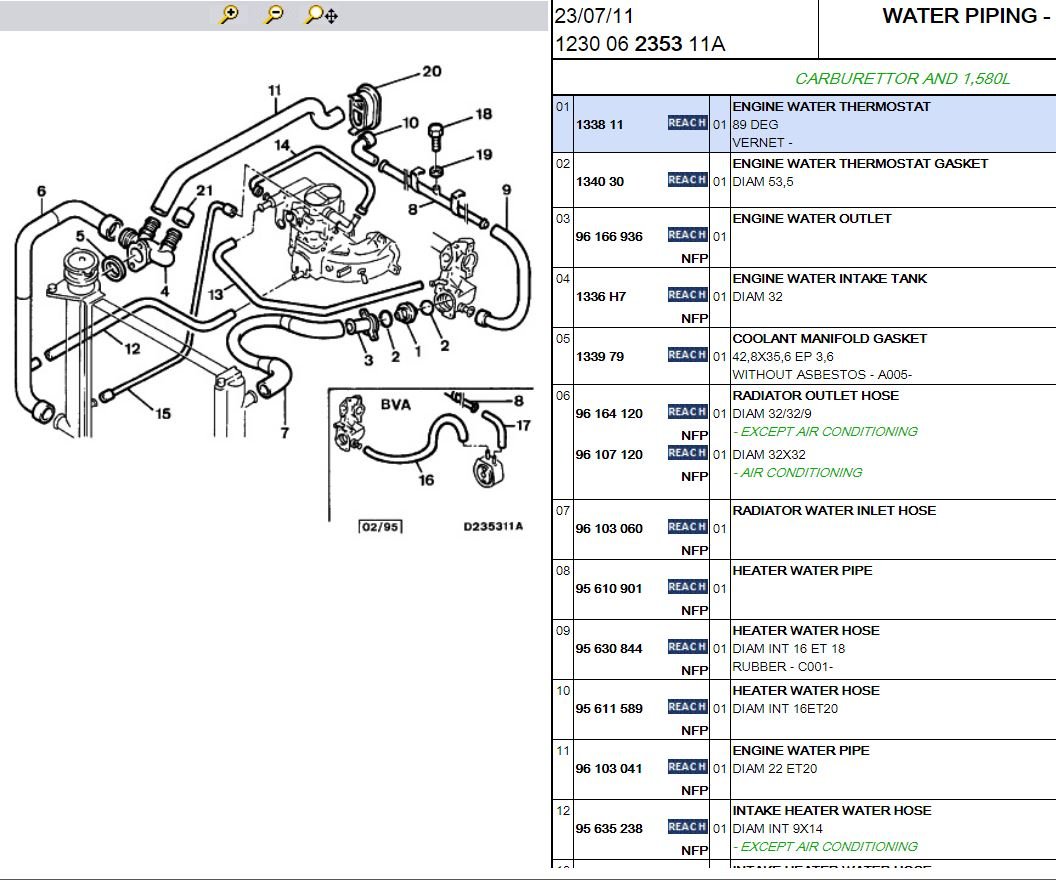

Coolant hoses for the 1580 carburettor engine...
. Two shown, cars w/ and w/o A/C.
Both NFP.
Couldn't find either on Pieces de Rechange, Mister Auto, or Metalcaucho.
The hose internal diameters are at least shown, so mighty be possible to use general-purpose straights and bends.
Didn't realise you had A/C on it, Marc.
A search on your VIN brings up...
BX 1.6L (XU52C) carburettor
RPO 5139 (= 4 Dec 1990)
BVM5 4x2
Single A/C
"Image" special spec
Coolant hoses for the 1580 carburettor engine...
. Two shown, cars w/ and w/o A/C.
Both NFP.
Couldn't find either on Pieces de Rechange, Mister Auto, or Metalcaucho.
The hose internal diameters are at least shown, so mighty be possible to use general-purpose straights and bends.
Didn't realise you had A/C on it, Marc.
Chris
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
many thanks for this.
No, I don't have AC, nor was it ever fitted
I am not sure I am reading this diagram correctly. - part 6 looks possible.though I dont believe it has a T piece with a another pipe attached - part 12. could be wrong.
The hose I need comes out of the bottom of the radiator - drivers side, stays below the crank and comes in behind the engine - I can't see where.
You can see a small section of the pipe from the lower wheel arch - this is the section of pipe that rubs against something ( one sort of arm, it was explained to me but I forget). apparently not an unknown issue.
Again, many thanks for looking for me.
No, I don't have AC, nor was it ever fitted
I am not sure I am reading this diagram correctly. - part 6 looks possible.though I dont believe it has a T piece with a another pipe attached - part 12. could be wrong.
The hose I need comes out of the bottom of the radiator - drivers side, stays below the crank and comes in behind the engine - I can't see where.
You can see a small section of the pipe from the lower wheel arch - this is the section of pipe that rubs against something ( one sort of arm, it was explained to me but I forget). apparently not an unknown issue.
Again, many thanks for looking for me.
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
edit - perhaps I typo'ed the VIN wrong. Here is a photo.
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 681
- Joined: Sat Sep 12, 2020 4:04 pm
- Location: Sayalonga, Malaga
- My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive - x 73
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
No, VIN number was right, and that's the diagram that comes up, both via the VIN, and via a BX 1580cc search.
Factory spec definitely says A/C, but likely just an arror - not unknown on the system.
Hopefully someone else can help identify the hose.
Factory spec definitely says A/C, but likely just an arror - not unknown on the system.
Hopefully someone else can help identify the hose.
Chris
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Thanks again. Is the bx1580 the 72hp engine. Do you know.
Even today it is not unknown for manufactures spec to differ from actual car. Last year we got a new discovery sport hse. Manufacture listed rear entertainment screens. None were fitted.
Even today it is not unknown for manufactures spec to differ from actual car. Last year we got a new discovery sport hse. Manufacture listed rear entertainment screens. None were fitted.
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 681
- Joined: Sat Sep 12, 2020 4:04 pm
- Location: Sayalonga, Malaga
- My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive - x 73
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
List of XU petrol engines here:
https://en.wikipedia.org/wiki/PSA_XU_engine
According to Servicebox and VIN, yours is the XU52C.
https://en.wikipedia.org/wiki/PSA_XU_engine
According to Servicebox and VIN, yours is the XU52C.
Chris
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Thankswhite exec wrote: ↑Mon May 03, 2021 5:32 pm List of XU petrol engines here:
https://en.wikipedia.org/wiki/PSA_XU_engine
According to Servicebox and VIN, yours is the XU52C.
91hp - happy days.
Though currently has around 15hp, misfires and close to undriveable. Removed and checked the plugs -all good. Though HT leads are stiffer than pipe cleaners. So suspect they are part of the issue. New leads on the way.
Thanks again.
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 681
- Joined: Sat Sep 12, 2020 4:04 pm
- Location: Sayalonga, Malaga
- My Cars: 1992 BX19D Millesime
- LHD, NA, AC, RP_5800
1996 XM 2.5TD Exclusive - x 73
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Marc,
Although maybe not actually connected, while looking up info today on your Meteor (which I think is essentially a carburetted 16TRS), the year of the car rang a bell. So a link to this post:
viewtopic.php?p=268719#p268719
I have no idea whether the flat-spot issue was ever finally addressed for production vehicles, and I can't help with translating those two Peugeot parts into their modern PSA part numbers.
You've got plenty to sort out anyway, but I thought I'd throw this in.
Although maybe not actually connected, while looking up info today on your Meteor (which I think is essentially a carburetted 16TRS), the year of the car rang a bell. So a link to this post:
viewtopic.php?p=268719#p268719
I have no idea whether the flat-spot issue was ever finally addressed for production vehicles, and I can't help with translating those two Peugeot parts into their modern PSA part numbers.
You've got plenty to sort out anyway, but I thought I'd throw this in.
Chris
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Thankswhite exec wrote: ↑Mon May 03, 2021 9:16 pm Marc,
Although maybe not actually connected, while looking up info today on your Meteor (which I think is essentially a carburetted 16TRS), the year of the car rang a bell. So a link to this post:
viewtopic.php?p=268719#p268719
I have no idea whether the flat-spot issue was ever finally addressed for production vehicles, and I can't help with translating those two Peugeot parts into their modern PSA part numbers.
You've got plenty to sort out anyway, but I thought I'd throw this in.
Weirdly I had read this before.
No flat spot. Just intermittent Mis fires, so replacing plugs leads and possibly ignition module. Fuel filter looks good.havnt stripped carb yet.
When it’s running smooth I may try rejetting to see if I can get a few more HP
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- Over 2k
- Posts: 15617
- Joined: Tue Apr 15, 2008 11:12 am
- Location: Derbyshire
- My Cars: Various
- x 160
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Has she had a good run? Sometimes some fuel system cleaner and a good blast can help..
Lots of Motors, mostly semi broken....
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Yes. Over 200 miles on the motorway recently
I also noticed that the fuel filter was only about 30% full of petrol. Seems low to my inexperienced eyes.
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Today was a sad day, I had to take the virginity of my front nearside door card, and remove it.
In other news, I was able to install a replacement door mirror ( Thanks to Rutter123 for supplying the part ). happy days.
Sadly, despite my best efforts - parking the car in the sun so the door and the inside of the car was nice and warm, one of the door card plastic retainers didn't survive the ordeal.
I am not replacing the door card as it refitted back to the door just fine. Though am considering making up a retainer - just for kicks, as I have to remove the door card again in the future to upgrade the speakers and install sound sound deadening.
RIP plastic "thingy ma jig"
In other news, I was able to install a replacement door mirror ( Thanks to Rutter123 for supplying the part ). happy days.
Sadly, despite my best efforts - parking the car in the sun so the door and the inside of the car was nice and warm, one of the door card plastic retainers didn't survive the ordeal.
I am not replacing the door card as it refitted back to the door just fine. Though am considering making up a retainer - just for kicks, as I have to remove the door card again in the future to upgrade the speakers and install sound sound deadening.
RIP plastic "thingy ma jig"
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- Over 2k
- Posts: 2695
- Joined: Sun Sep 02, 2012 9:54 pm
- Location: South Lincs
- My Cars: 90 Bx Tzd turbo ven red 295k
74 D Super 5 black
05 Volvo V50 2.0d 180k
65 Peugeot Boxer work van 280k - x 137
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
I'd make a few spare retainers, as retainer loss/breakage is on average 1 per door card removal, I found a few broken ones laying in bottom of door and now down to 4 holding the door card on.
90 BX Tzd turbo 294k SORN undergoing major surgery
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
90 BX Tzd turbo estate 46k awaiting surgery
65 Peugeot Boxer Van the new workhorse
52 Toyota Rav4 180k Bulletproof Jap reliability
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Apologies, I should have mentioned before.white exec wrote: ↑Mon May 03, 2021 9:16 pm Marc,
Although maybe not actually connected, while looking up info today on your Meteor (which I think is essentially a carburetted 16TRS), the year of the car rang a bell. So a link to this post:
viewtopic.php?p=268719#p268719
I have no idea whether the flat-spot issue was ever finally addressed for production vehicles, and I can't help with translating those two Peugeot parts into their modern PSA part numbers.
You've got plenty to sort out anyway, but I thought I'd throw this in.
New HT leads cured the terrible mis fires, she now drives very well
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
-
- BXpert
- Posts: 229
- Joined: Tue Mar 09, 2021 12:34 am
- Location: Kent
- My Cars: Landrover discovery sport 2020
Previously ipace/discovery 5/velar and many others including 2 bx gti back in early 1990 - x 12
Re: PcHeaven's 91 Meteor. One owner 18,000 miles
Thanks againwhite exec wrote: ↑Mon May 03, 2021 1:19 pm Radiator bottom (and other) hoses
A search on your VIN brings up...
BX 1.6L (XU52C) carburettor
RPO 5139 (= 4 Dec 1990)
BVM5 4x2
Single A/C
"Image" special spec
Coolant hoses for the 1580 carburettor engine...
.
Two shown, cars w/ and w/o A/C.
Both NFP.
Couldn't find either on Pieces de Rechange, Mister Auto, or Metalcaucho.
The hose internal diameters are at least shown, so mighty be possible to use general-purpose straights and bends.
Didn't realise you had A/C on it, Marc.
Seems I was mistaken ( not unusual according to Mrs me ) part 6 does look correct, as you mentioned - I can’t find stock anywhere
BX Meteor. Sub 20000 miles. Very Original.
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
ToDo list.
1. ?G?e?t? ?c?a?m? ?b?e?t? ?e?t?c? ?r?e?p?l?a?c?e?d? ?e?t?c?
Have a GnT
2. G?e?t? ?t?h?e? ?r?a?d?i?o? ?t?o? ?w?o?r?k?.? ?
Have a GnT
3. Adjust the clutch
Have a GnT
4. Clean LHM tank then a complete flush
Have a GnT
5. Wash, clay bar then ceramic coat paintwork.
Have a GnT
6. Replace rear spheres
Have a GnT
7. Replace bottom hose
